うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output ( Max ) | Power ( Watts ) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
TE10A0502B01AC/DC WALL MOUNT ADAPTER 5V 10W |
3835 | 17.18 |
カートに追加今すぐ検索 |
Box | TE10 (10W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31 L x 1.85 W x 1.50 H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|

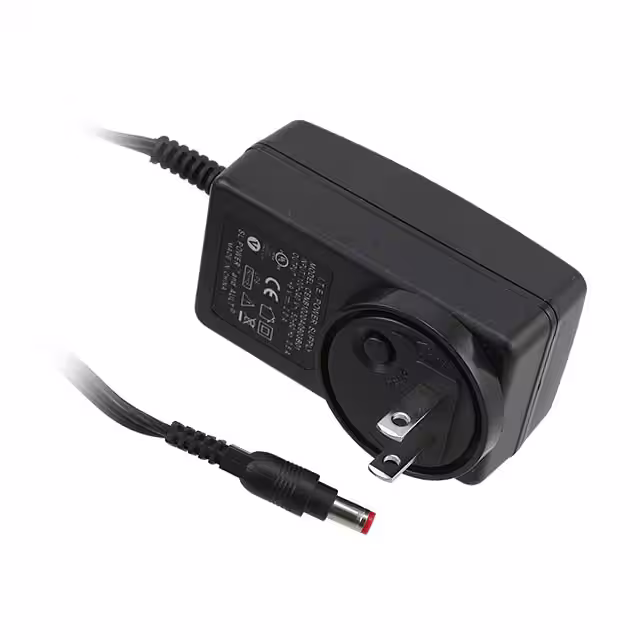

CENB1020A2403B01AC/DC WALL MOUNT ADAPTER 24V 18W |
3233 | 17.66 |
カートに追加今すぐ検索 |
Box | CENB1020 (20W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 24V | 750mA | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27 L x 1.85 W x 1.50 H (83.0mm x 47.0mm x 38.0mm) | CE, cULus |
|
データテーブル |
|

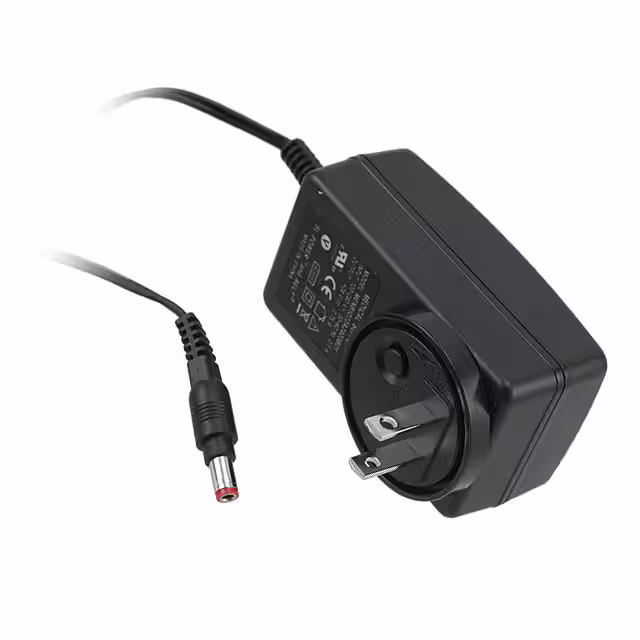

MENB1020A1203B01AC/DC WALL MOUNT ADAPTER 12V 18W |
3124 | 18.46 |
カートに追加今すぐ検索 |
Box | MENB1020 (20W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 1.5A | 18 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31 L x 1.85 W x 1.50 H (84.0mm x 47.0mm x 38.0mm) | CB, CE, UL |
|
データテーブル |
|
TE20A0902B01AC/DC WALL MOUNT ADAPTER 9V 18W |
2527 | 19.86 |
カートに追加今すぐ検索 |
Box | TE20 (20W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31 L x 1.85 W x 1.50 H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|
TE20A2402B01AC/DC WALL MOUNT ADAPTER 24V 20W |
3781 | 19.86 |
カートに追加今すぐ検索 |
Box | TE20 (20W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 830mA | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31 L x 1.85 W x 1.50 H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|
TE30A2402B01AC/DC WALL MOUNT ADAPTER 24V 32W |
3665 | 23.24 |
カートに追加今すぐ検索 |
Box | TE30 (30W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.33A | 32 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 4.7' (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78 L x 2.17 W x 1.32 H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|
TE30A1503B01AC/DC WALL MOUNT ADAPTER 15V 30W |
3133 | 23.24 |
カートに追加今すぐ検索 |
Box | TE30 (30W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 4.7' (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78 L x 2.17 W x 1.32 H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|
TE30A1202F01AC/DC DESKTOP ADAPTER 12V 30W |
3806 | 23.24 |
カートに追加今すぐ検索 |
Box | TE30 (30W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 4.7' (1.45m) | IEC 320-C14 | - | 3.76 L x 2.13 W x 1.22 H (95.5mm x 54.0mm x 31.0mm) | CB, CE, CSA, UL |
|
データテーブル |
|
TE30A4803B01AC/DC WALL MOUNT ADAPTER 48V 30W |
2378 | 23.24 |
カートに追加今すぐ検索 |
Box | TE30 (30W) | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 630mA | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 4.7' (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78 L x 2.17 W x 1.32 H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL |
|
データテーブル |
|
CENB1030A4803B01AC/DC WALL MOUNT ADAPTER 48V 32W |
2992 | 23.54 |
カートに追加今すぐ検索 |
Box | CENB1030 (30W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 48V | 670mA | 32 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P | - | 3.76 L x 2.13 W x 1.22 H (95.5mm x 54.0mm x 31.0mm) | CE, cULus |
RFQ
