データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() データテーブル |
![]() |
XT40.481AC/DC CONVERTER 48V 960W |
2566 | 675.00 |
カートに追加今すぐ検索 |
Box | DIMENSION X (960W) | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 96% | -25°C ~ 70°C (With Derating) | IP20 | 6.18 L x 3.78 W x 4.88 H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL |
![]() データテーブル |
![]() |

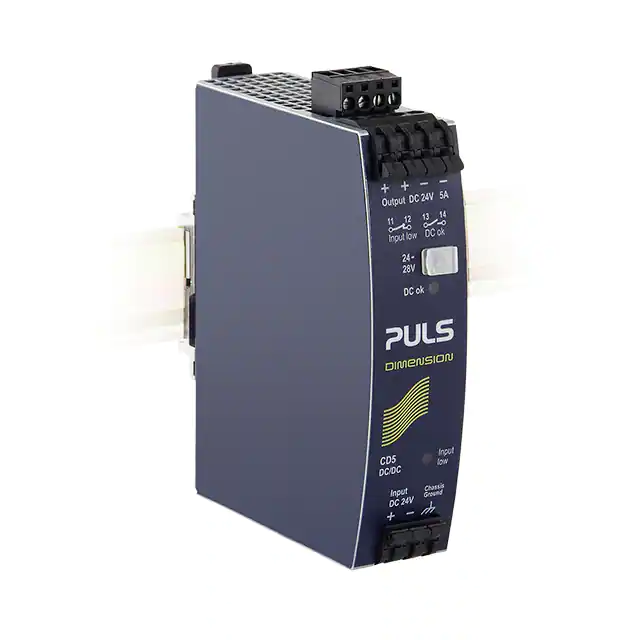

CD5.241-S1DC/DC CONVERTER 24V 120W |
2305 | 387.00 |
カートに追加今すぐ検索 |
Bulk | DIMENSION CD (92 ~ 120W) | Active | DC | 1 | - | 18V | 32.4V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | - | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
![]() データテーブル |
![]() |
CP20.241-R2-C1REDUNDANCY POWER SUPPLY, 480W, 1 |
2121 | 742.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 93.8% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | CE, cULus, EAC |
