うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Package / Case | Packaging | Series | Product Status | Type | Number of Elements | Output Type | Voltage - Supply Single / Dual(±) | Voltage - Input Offset (Max) | Current - Input Bias (Max) | Current - Output (Typ) | Current - Quiescent ( Max ) | CMRR, PSRR (Typ) | Propagation Delay (Max) | Hysteresis | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
LM293STIC COMP DUAL LP BIPO MINI 8SOIC |
14795 | 0.91 |
カートに追加今すぐ検索 |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 18mA @ 5V | 2.5mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
データテーブル |
|
LM293PTIC VOLT COMPARATOR DUAL 8-TSSOP |
115927 | 0.93 |
カートに追加今すぐ検索 |
8-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 18mA @ 5V | 2.5mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
データテーブル |
|
LM393PE3IC COMPARATOR DIFF DUAL 8DIP |
34528 | 0.42 |
カートに追加今すぐ検索 |
8-DIP (0.300, 7.62mm) | Tube | - | Active | Differential | 2 | CMOS, MOS, Open-Drain, TTL | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 20mA | 2.5mA | - | - | - | 0°C ~ 70°C | Through Hole |
|
データテーブル |
|
LM2901YPTIC VOLT COMPARATOR QUAD 14-TSSOP |
33240 | 0.98 |
カートに追加今すぐ検索 |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q100 | Active | General Purpose | 4 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 32V, ±1V ~ 16V | 7mV @ 5V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
TLV1391CDBVRIC DIFF COMPARATOR SNGL SOT23-5 |
7530 | 0.95 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Differential | 1 | Open Collector | 2V ~ 7V | 5mV @ 5V | 0.25µA @ 5V | 20mA | 175µA | - | - | - | 0°C ~ 70°C | Surface Mount |
| |
|
TLV7041QDBVRQ1AUTOMOTIVE NANO POWER COMPARATOR |
7493 | 0.96 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q100 | Active | General Purpose | 1 | Open-Drain, Rail-to-Rail | 1.6V ~ 6.5V | 8mV @ 5V | 2pA @ 5V | 40mA @ 5V | 900nA | 73dB CMRR, 77dB PSRR | 3µs | 17mV | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|

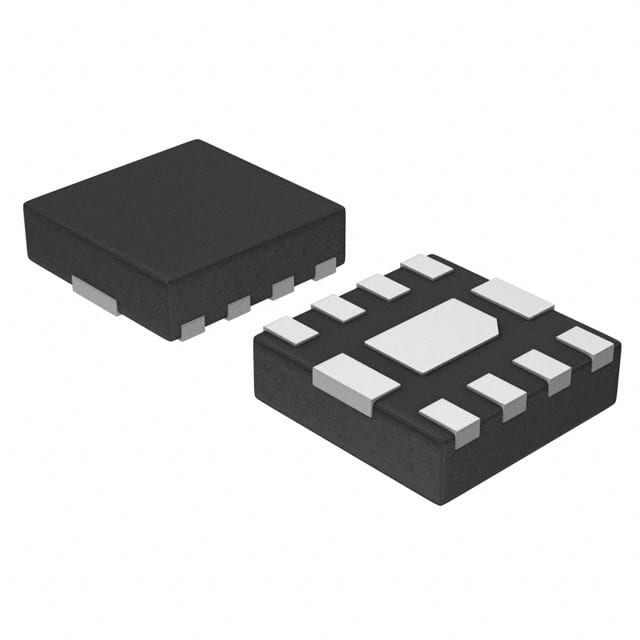

NCS2220AMUT1GIC COMPARATOR DUAL LV 8UDFN |
4172 | 1.15 |
カートに追加今すぐ検索 |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 2 | Complementary, Rail-to-Rail | 0.85V ~ 6V | 5mV @ 6V | 1pA @ 6V | - | 17µA | 53dB CMRR, 45dB PSRR | 500ns | 20mV | -40°C ~ 105°C | Surface Mount |
|
データテーブル |
|
TS3702IDTIC COMP MICROPWR DUAL V 8 SOIC |
7500 | 0.99 |
カートに追加今すぐ検索 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 2 | CMOS, Push-Pull | 2.7V ~ 16V, ±1.35V ~ 8V | 5mV @ 10V | 1pA @ 5V | 20mA | 25µA | 82dB CMRR | - | - | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
MAX9021AXK+TIC COMPARATOR SNGL SC70-5 |
11227 | 1.16 |
カートに追加今すぐ検索 |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | CMOS, Rail-to-Rail, TTL | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | 1mV @ 5V | 0.003µA @ 5V | - | 5µA | 100dB CMRR, 80dB PSRR | 8µs | 4mV | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
MAX9021AUK+TIC COMPARATOR SNGL SOT23-5 |
5389 | 1.16 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | CMOS, Rail-to-Rail, TTL | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | 1mV @ 5V | 0.003µA @ 5V | - | 5µA | 100dB CMRR, 80dB PSRR | 8µs | 4mV | -40°C ~ 125°C | Surface Mount |
| |
|

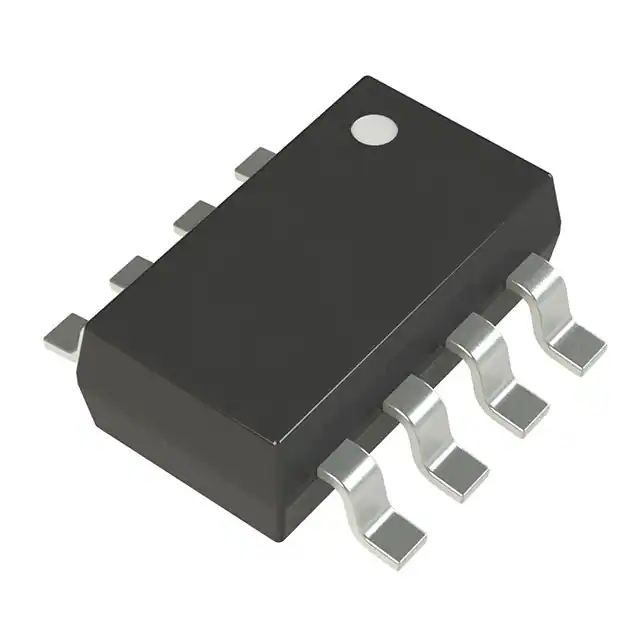

TLV7012DDFRMICROPOWER SMALL SIZE COMPARATOR |
2985 | 1.15 |
カートに追加今すぐ検索 |
SOT-23-8 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 2 | Push-Pull, Rail-to-Rail | 1.6V ~ 5.5V | 8mV @ 5V | 2pA @ 5V | 33mA @ 5V | 9µA | 73dB CMRR, 77dB PSRR | 310ns (Typ) | 15mV | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
TLC372CDRIC DUAL DIFF COMP 8-SOIC |
6991 | 1.19 |
カートに追加今すぐ検索 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | LinCMOS™ | Active | Differential | 2 | CMOS, MOS, Open-Drain, TTL | 3V ~ 16V, ±1.5V ~ 8V | 5mV @ 5V | 5pA @ 5V | 20mA | 400µA | - | - | - | 0°C ~ 70°C | Surface Mount |
|
データテーブル |
|
TLV4031R2YKARCOMPARATOR WITH FIXED REFERENCE |
35419 | 1.20 |
カートに追加今すぐ検索 |
4-XFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | Open-Drain, Rail-to-Rail | 1.6V ~ 5.5V | - | 10pA @ 5V | 55mA @ 5V | 3.5µA | - | 360ns | 20mV | -40°C ~ 125°C (TA) | Surface Mount |
| |
|
TLV4051R5DBVRLOW-POWER COMPARATOR WITH REFERE |
3598 | 1.20 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | Push-Pull, Rail-to-Rail | 1.6V ~ 5.5V | - | 10pA @ 5V | 50mA @ 5V | 3.5µA | - | 360ns | 20mV | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
TLV7211IDRIC COMP R-R IN/P-P OUT 8-SOIC |
6572 | 1.03 |
カートに追加今すぐ検索 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | Push-Pull | 2.7V ~ 15V | 15mV @ 5V | 0.04pA @ 5V | 30mA | 18µA | 75dB CMRR, 80dB PSRR | 10µs | - | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|
TLC3702CDRIC DUAL V COMP 8-SOIC |
11837 | 1.22 |
カートに追加今すぐ検索 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | LinCMOS™ | Active | General Purpose | 2 | CMOS, Push-Pull, TTL | 3V ~ 16V | 5mV @ 10V | 5pA @ 5V | 20mA | 50µA | 84dB CMRR | 4.5µs | - | 0°C ~ 70°C | Surface Mount |
| |
|
TLV4011DCKRLOW-POWER COMPARATOR |
11297 | 1.22 |
カートに追加今すぐ検索 |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | Open-Drain | 1.3V ~ 6V | - | - | 5mA | 4µA | - | 100µs | 15mV | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|
LMV331M5IC COMPARATOR TINY LV SOT23-5 |
3637 | 1.23 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | General Purpose | 1 | CMOS, Open-Collector, TTL | 2.7V ~ 5.5V | 7mV @ 5V | 0.25µA @ 5V | 84mA @ 5V | 120µA | - | 600ns | - | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|

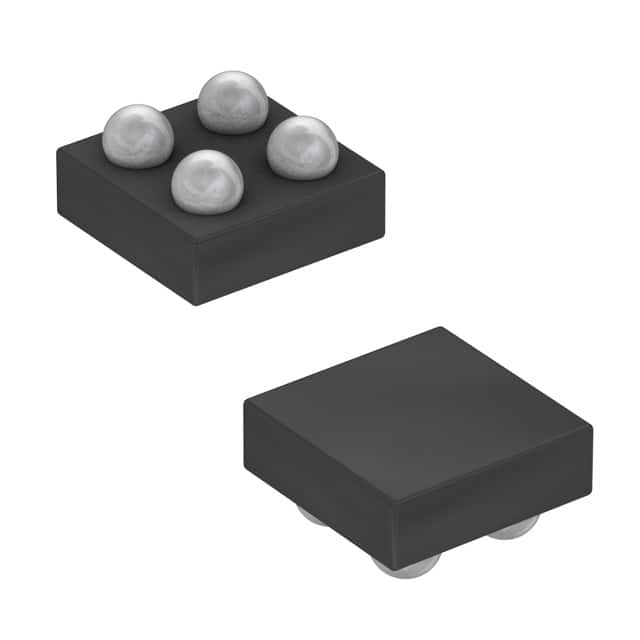

MAX9063EBS+TG45IC COMPARATOR SGL LP 4UCSP |
10265 | 1.25 |
カートに追加今すぐ検索 |
4-WFBGA, CSPBGA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | with Voltage Reference | 1 | Open Drain | 1V ~ 5.5V | - | 60pA @ 3.3V | - | 1.1µA | 53dB PSRR | 15µs | ±12mV | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|
LM311PIC DIFF COMP W/STROBE 8DIP |
4621 | 0.57 |
カートに追加今すぐ検索 |
8-DIP (0.300, 7.62mm) | Tube | - | Active | General Purpose | 1 | DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL | 3.5V ~ 30V, ±1.75V ~ 15V | 7.5mV @ ±15V | 0.25µA @ ±15V | 50mA | 7.5mA | - | - | - | 0°C ~ 70°C | Through Hole |
