うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S / N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height ( Max ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

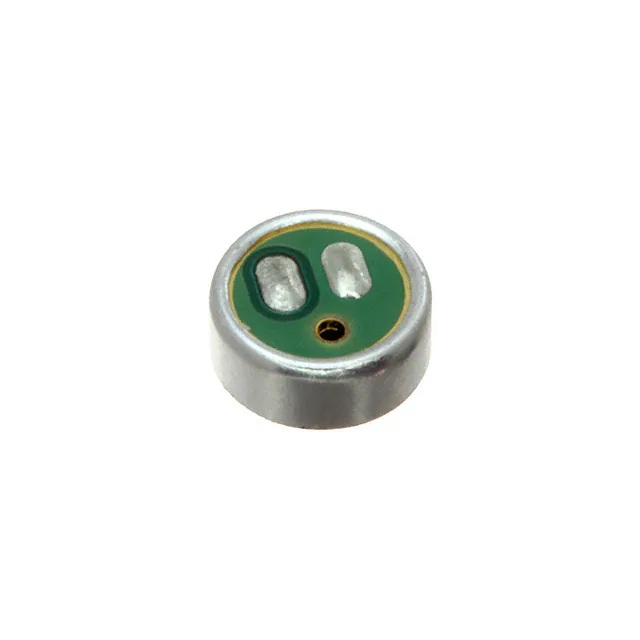

EM-4015NMIC COND ANALOG NC -42DB 4MM D |
246 | 2.06 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Noise Cancelling | 200 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 55dB | - | - | - | 500 µA | Top | IP50 - Dust Protection | Solder Pads | 0.157 Dia (4.00mm) | 0.067 (1.70mm) |
|
データテーブル |
|
EM-9745UNMIC COND ANALOG NC -42DB 9.7MM D |
120 | 2.26 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Noise Cancelling | 200 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 58dB | - | - | - | 500 µA | Top | IP50 - Dust Protection | Solder Pads | 0.382 Dia (9.70mm) | 0.177 (4.50mm) |
|
データテーブル |
|

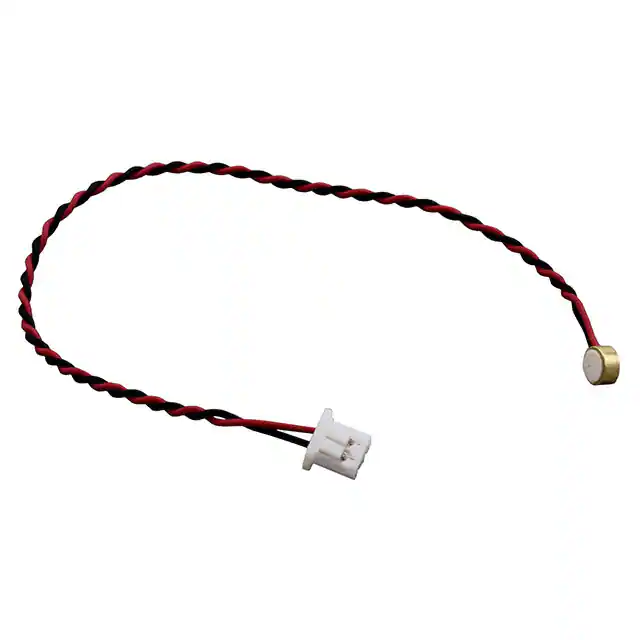

EM-3015LRNWMIC COND ANALOG OMNI -42DB 3MM D |
3962 | 2.42 |
カートに追加今すぐ検索 |
Bulk | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 50dB | - | 2 V | - | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.118 Dia (3.00mm) | 0.065 (1.65mm) |
|
データテーブル |
|
EM-6022L-38MIC COND ANALOG OMNI -38DB 6MM D |
446 | 1.25 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP50 - Dust Protection | Wire Leads | 0.236 Dia (6.00mm) | 0.094 (2.40mm) |
|
データテーブル |
|

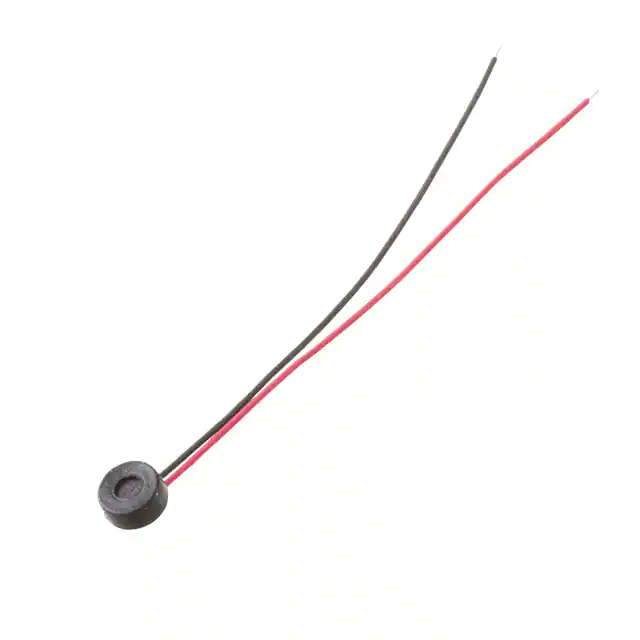

EM-4015LR-40-3MIC COND ANALOG OMNI -40DB 4MM D |
429 | 1.34 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -40dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP50 - Dust Protection | Wire Leads | 0.157 Dia (4.00mm) | 0.067 (1.70mm) |
|
データテーブル |
|

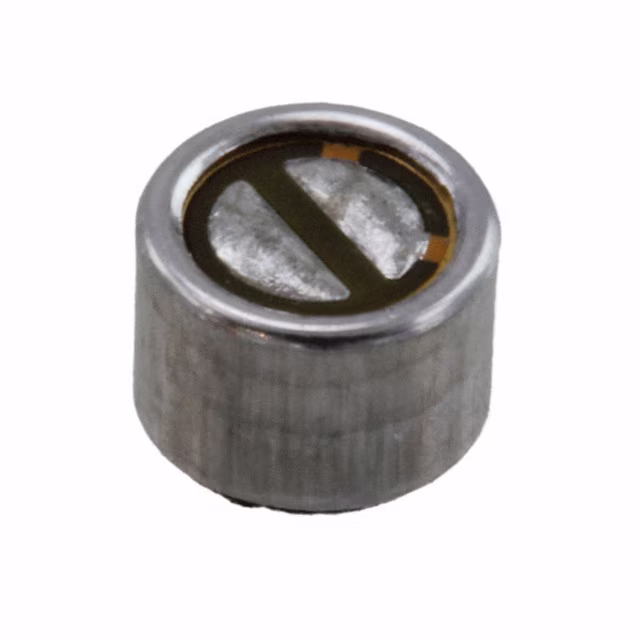

EM-4530MICROPHONE COND ANALOG OMNI |
2301 | 1.34 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.177 Dia (4.50mm) | 0.118 (3.00mm) |
|
データテーブル |
|

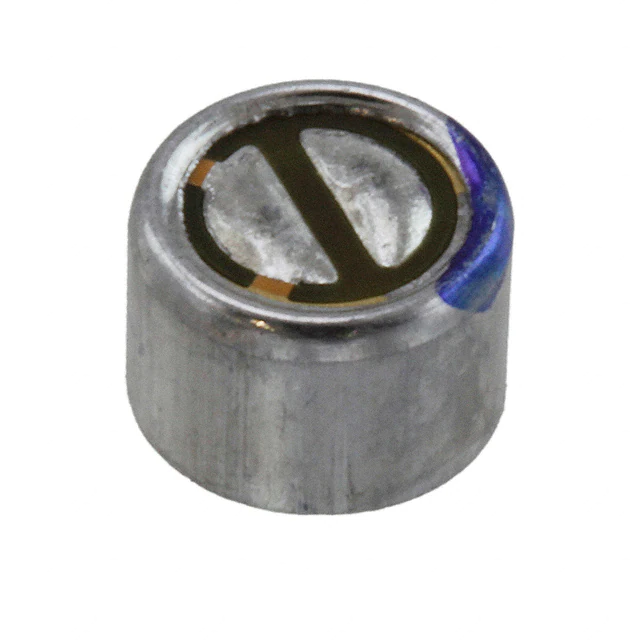

EM-4530-CMICROPHONE COND ANALOG OMNI |
2307 | 1.48 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.177 Dia (4.50mm) | 0.118 (3.00mm) |
|
データテーブル |
|

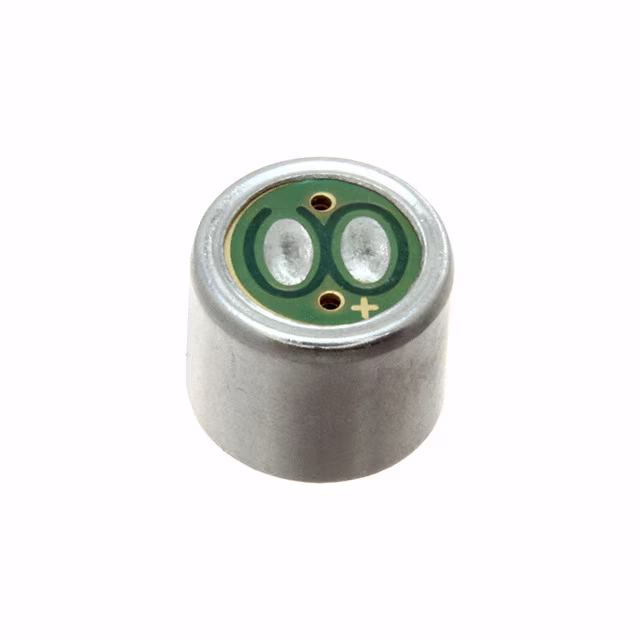

EM-6050NMIC COND ANALOG OMNI -42DB 6MM D |
2096 | 1.56 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 200 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 50dB | - | - | - | 500 µA | Top | IP50 - Dust Protection | Solder Pads | 0.236 Dia (6.00mm) | 0.197 (5.00mm) |
|
データテーブル |
|

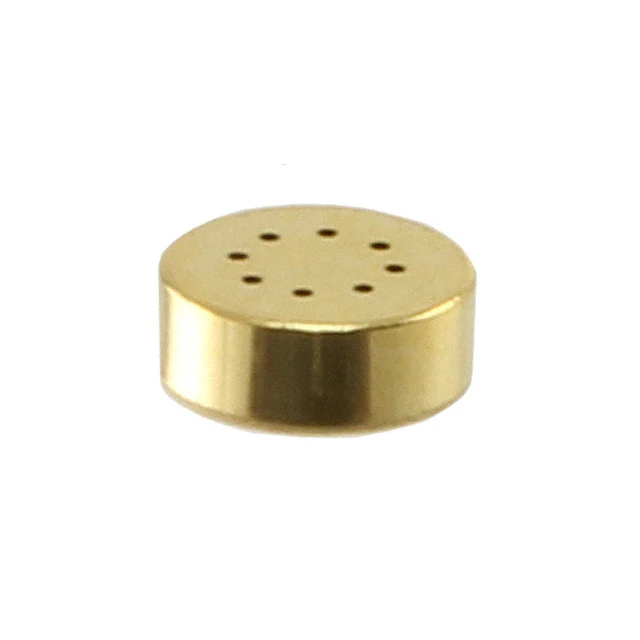

EM-6022SMIC COND ANALOG OMNI -43DB 6MM D |
213 | 1.20 |
カートに追加今すぐ検索 |
Tape & Reel (TR),Cut Tape (CT) | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -43dB ±5dB @ 94dB SPL | 58dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236 Dia (6.00mm) | 0.087 (2.20mm) |
|
データテーブル |
|
EM-9745MICROPHONE COND ANALOG OMNI |
282 | 0.95 |
カートに追加今すぐ検索 |
Tray | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -46dB ±2dB @ 94dB SPL | 58dB | 2.2 kOhms | 4.5 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382 Dia (9.70mm) | 0.177 (4.50mm) |
RFQ
