うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated ( oz-in / mNm ) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary ( oz-in / mNm ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
17N78-208E.1STANDARD MOTOR 10000 RPM 18V |
3479 | 104.44 |
カートに追加今すぐ検索 |
Tray | 17N78 | Active | DC Motor | Standard | Brushed | 18VDC | 10000 RPM | 0.69 / 4.89 | 3.2W | - | Round - 0.669 Dia (17.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.394 (10.00mm) | Solder Tab | - | - | - |
| |
|
17N78-216E.1STANDARD MOTOR 10000 RPM 6V |
3439 | 104.44 |
カートに追加今すぐ検索 |
Tray | 17N78 | Active | DC Motor | Standard | Brushed | 6VDC | 10000 RPM | 0.81 / 5.69 | 3.6W | - | Round - 0.669 Dia (17.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.394 (10.00mm) | Solder Tab | - | - | - |
| |
|

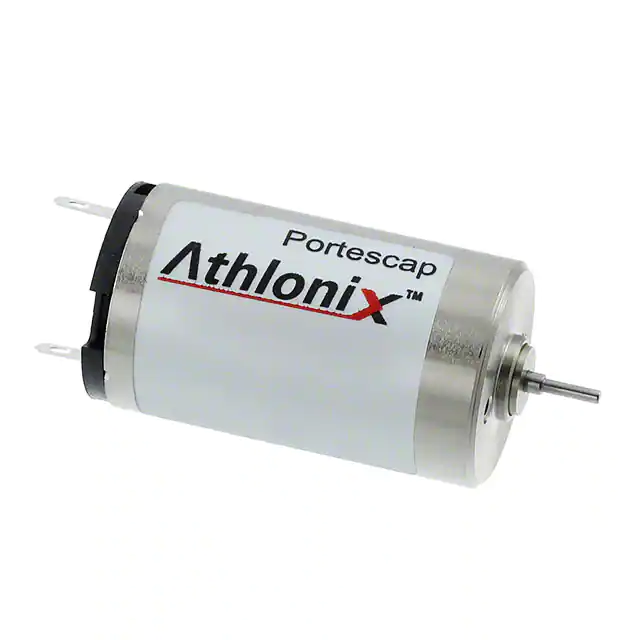

16N1R78-214E.1001STD DC MOTOR 10000 RPM 16MM |
3244 | 107.28 |
カートに追加今すぐ検索 |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|

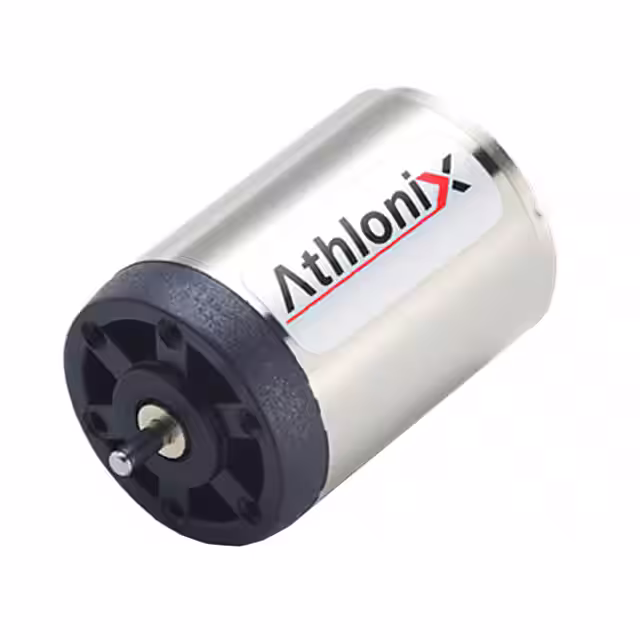

22N78-215E.1001STANDARD MOTOR 10000 RPM 24V |
2666 | 150.51 |
カートに追加今すぐ検索 |
Tray | 22N78 Athlonix | Active | DC Motor | Standard | Brushed | 24VDC | 10000 RPM | 2.05 / 14.5 | 11.5W | - | Round - 0.866 Dia (22.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.669 (17.00mm) | Solder Tab | - | - | - |
| |
|
22N78-216E.1001STANDARD MOTOR 10000 RPM 18V |
3535 | 150.51 |
カートに追加今すぐ検索 |
Tray | 22N78 Athlonix | Active | DC Motor | Standard | Brushed | 18VDC | 10000 RPM | 1.954 / 13.8 | 11.3W | - | Round - 0.866 Dia (22.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.669 (17.00mm) | Solder Tab | - | - | - |
| |
|

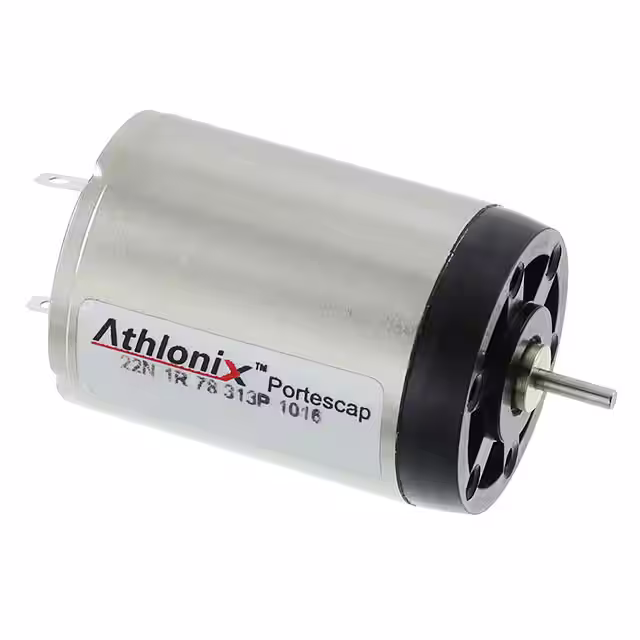

22N 1R 78 313P 1016STANDARD MOTOR 10000 RPM 9V |
2762 | 0.00 |
カートに追加今すぐ検索 |
Tray | 22N78 Athlonix | Active | DC Motor | Standard | Brushed | 9VDC | 10000 RPM | 2.05 / 14.5 | 12W | - | Round - 0.866 Dia (22.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.669 (17.00mm) | Solder Tab | - | - | - |
| |
|
08G61-205C.1STANDARD MOTOR 10000 RPM 9V |
3370 | 0.00 |
カートに追加今すぐ検索 |
Tray | 08G61 | Active | DC Motor | Standard | Brushed | 9VDC | 10000 RPM | 0.123 / 0.85 | 0.7W | - | Round - 0.315 Dia (8.00mm) | 0.059 (1.50mm) | 0.197 (5.00mm) | - | Solder Tab | - | - | - |
| |
|
10NS61-105C.1STANDARD MOTOR 10000 RPM 6V |
3055 | 0.00 |
カートに追加今すぐ検索 |
Tray | 10NS61 Athlonix | Obsolete | DC Motor | Standard | Brushed | 6VDC | 10000 RPM | 0.127 / 0.9 | 0.7W | - | Round - 0.394 Dia (10.00mm) | 0.031 (0.80mm) | 0.220 (5.60mm) | - | Solder Tab | - | - | - |
| |
|

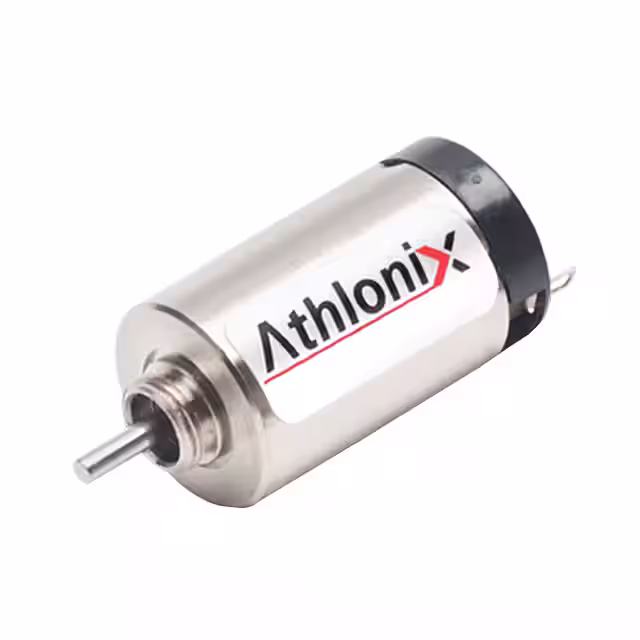

12G88-213E.1001STANDARD MOTOR 10000 RPM 4.5V |
3165 | 0.00 |
カートに追加今すぐ検索 |
Tray | 12G88 Athlonix | Active | DC Motor | Standard | Brushed | 4.5VDC | 10000 RPM | 0.892 / 6.3 | 2.5W | - | Round - 0.472 Dia (12.00mm) | 0.059 (1.50mm) | 0.276 (7.00mm) | - | Solder Tab | - | - | - |
|
データテーブル |
|
16G88-220E.1STANDARD MOTOR 11700 RPM 6V |
2659 | 0.00 |
カートに追加今すぐ検索 |
Tray | 16G88 | Active | DC Motor | Standard | Brushed | 6VDC | 11700 RPM | 0.779 / 5.5 | 4.5W | - | Round - 0.629 Dia (16.00mm) | 0.059 (1.50mm) | 0.295 (7.50mm) | 0.394 (10.00mm) | Solder Tab | - | - | - |
RFQ
