うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Output Isolation | Internal Switch ( s ) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply ( Vcc / Vdd ) | Duty Cycle | Frequency - Switching | Power ( Watts ) | Fault Protection | Control Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
UCC3808AN-1G4IC OFFLINE SWITCH MULT TOP 8DIP |
2961 | 2.86 |
カートに追加今すぐ検索 |
Tube | - | Last Time Buy | Isolated | - | - | Boost, Buck, Half-Bridge, Push-Pull | 12.5 V | 8.3V ~ 15V | 49% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) |
|
データテーブル |
|
UCC25706PIC OFFLINE SWITCH MULT TOP 8DIP |
3192 | 2.06 |
カートに追加今すぐ検索 |
Bulk,Tube | - | Obsolete | Isolated | No | - | Boost, Flyback, Forward | 12 V | 8V ~ 15V | 93% | 1MHz | - | Current Limiting | - | -55°C ~ 150°C (TJ) |
|
データテーブル |
|
UCC2808AQDR-1EPIC OFFLINE SW PUSH-PULL 8SOIC |
2369 | 1.00 |
カートに追加今すぐ検索 |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Active | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 15V | 49% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) |
|
データテーブル |
|
ICE3A2565FKLA1IC OFFLINE SWITCH FLYBACK 8DIP |
2961 | 1.00 |
カートに追加今すぐ検索 |
Tube,Tube | CoolMOS™, CoolSET™F3 | Not For New Designs | Isolated | Yes | 650V | Flyback | 15 V | 8.5V ~ 21V | 72% | 100kHz | 68 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Soft Start | -25°C ~ 130°C (TJ) |
|
データテーブル |
|
UCC2960DIC OFFLINE SWITCH 8SOIC |
2225 | 2.08 |
カートに追加今すぐ検索 |
Bulk,Tube | - | Active | Isolated | No | - | - | 10 V | 8V ~ 19V | 72% | Up to 400kHz | - | Current Limiting, Over Voltage | Frequency Control, Soft Start | -55°C ~ 150°C (TJ) |
| |
|
IDP2322XUMA1IC OFFLINE SWITCH 16SOIC |
3700 | 2.91 |
カートに追加今すぐ検索 |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
データテーブル |
|
UCC2894PWIC OFFLINE SW MULT TOP 16TSSOP |
3617 | 2.93 |
カートに追加今すぐ検索 |
Tube | - | Active | Isolated | No | - | Flyback, Forward | 12.7 V | 8.5V ~ 16V | 70% | 1MHz | - | Current Limiting | Soft Start, Sync | -40°C ~ 105°C (TJ) |
|
データテーブル |
|
UCC2810DWTRIC OFFLINE SW MULT TOP 16SOIC |
507 | 2.72 |
カートに追加今すぐ検索 |
Tape & Reel (TR),Bulk | - | Active | Isolated | No | - | Boost, Flyback, Forward | 11.3 V | 8.3V ~ 11V | 49% | 1MHz | - | - | Frequency Control, Sync | 0°C ~ 70°C (TA) |
|
データテーブル |
|

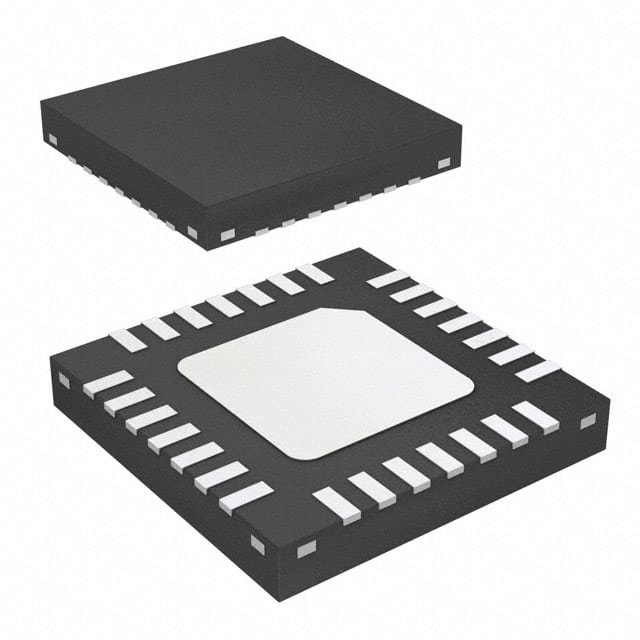

LM5045SQX/NOPBIC OFFLINE SW FULL-BRDG 28WQFN |
2986 | 2.96 |
カートに追加今すぐ検索 |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolated | No | - | Full-Bridge | - | 14V ~ 100V | - | Up to 2MHz | - | Current Limiting, Over Temperature, Over Voltage | Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) |
|
データテーブル |
|
UCC28085PIC OFFLINE SWITCH PUSH-PULL 8DIP |
3549 | 2.12 |
カートに追加今すぐ検索 |
Bulk,Tube | - | Obsolete | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz | - | Current Limiting | Frequency Control | -40°C ~ 85°C (TA) |
|
データテーブル |
|
STR-V152IC OFFLINE SWITCH FLYBACK 8SIP |
2080 | 3.05 |
カートに追加今すぐ検索 |
Bulk | STR-V100 | Active | Isolated | Yes | 650V | Flyback | 17.5 V | 10V ~ 35V | - | - | 17 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -20°C ~ 125°C (TA) |
|
データテーブル |
|
UCC2807DTR-2IC OFFLINE SWITCH MULT TOP 8SOIC |
3072 | 2.83 |
カートに追加今すぐ検索 |
Tape & Reel (TR),Bulk | - | Active | Isolated | No | - | Boost, Flyback, Forward | 12.5 V | 8.3V ~ 13.5V | 78% | 1MHz | - | Current Limiting | - | -55°C ~ 150°C (TJ) |
|
データテーブル |
|
MAX5068CAUE+IC OFFLINE SW FLYBACK 16TSSOP |
3441 | 3.06 |
カートに追加今すぐ検索 |
Tube | - | Not For New Designs | Either | No | - | Flyback | 23.6 V | 10.8V ~ 24V | 75% | 12.5kHz ~ 625kHz | - | Current Limiting, Over Temperature | EN, Frequency Control, Sync | -40°C ~ 150°C (TJ) |
|
データテーブル |
|
STR-V153IC OFFLINE SWITCH FLYBACK 8SIP |
2964 | 3.08 |
カートに追加今すぐ検索 |
Bulk | STR-V100 | Active | Isolated | Yes | 650V | Flyback | 17.5 V | 10V ~ 35V | - | - | 23 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -20°C ~ 125°C (TA) |
|
データテーブル |
|
UCC2580DTR-2IC OFFLINE SW MULT TOP 16SOIC |
2500 | 3.09 |
カートに追加今すぐ検索 |
Tape & Reel (TR) | - | Active | Isolated | No | - | Flyback, Forward | 15 V | 8.5V ~ 15V | 66% | - | - | - | Soft Start | -55°C ~ 150°C (TJ) |
| |
|
HPA00706DTR-2IC OFFLINE SWITCH CLAMP/RESET |
3604 | 3.09 |
カートに追加今すぐ検索 |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
データテーブル |
|
UCC38083PIC OFFLINE SWITCH PUSH-PULL 8DIP |
2712 | 2.26 |
カートに追加今すぐ検索 |
Bulk,Tube | - | Obsolete | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz | - | Current Limiting | Frequency Control | 0°C ~ 70°C (TA) |
|
データテーブル |
|
FSFR1700XSIC OFFLINE SW HALF-BRIDGE 9SIP |
196 | 5.05 |
カートに追加今すぐ検索 |
Tube,Tube | FSFR-XS | Active | Isolated | Yes | 500V | Half-Bridge | 12.5 V | 10V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 130°C (TJ) |
|
データテーブル |
|
LM5046MHX/NOPBIC OFFLINE SW FULL-BRG 28TSSOP |
2523 | 3.17 |
カートに追加今すぐ検索 |
Tape & Reel (TR) | - | Active | Isolated | No | - | Full-Bridge | - | 14V ~ 100V | - | Up to 2MHz | - | Current Limiting, Over Temperature, Over Voltage | Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) |
|
データテーブル |
|
LM5046SQX/NOPBIC OFFLINE SW FULL-BRDG 28WQFN |
3800 | 3.17 |
カートに追加今すぐ検索 |
Tape & Reel (TR) | - | Active | Isolated | No | - | Full-Bridge | - | 14V ~ 100V | - | Up to 2MHz | - | Current Limiting, Over Temperature, Over Voltage | Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) |
