うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Package / Case | Packaging | Series | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input ( Max ) | Voltage - Output ( Min / Fixed ) | Voltage - Output ( Max ) | Voltage Dropout(Max) | Current - Output | Current - Quiescent ( Iq ) | Current - Supply ( Max ) | PSRR | Control Features | Protection Features | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

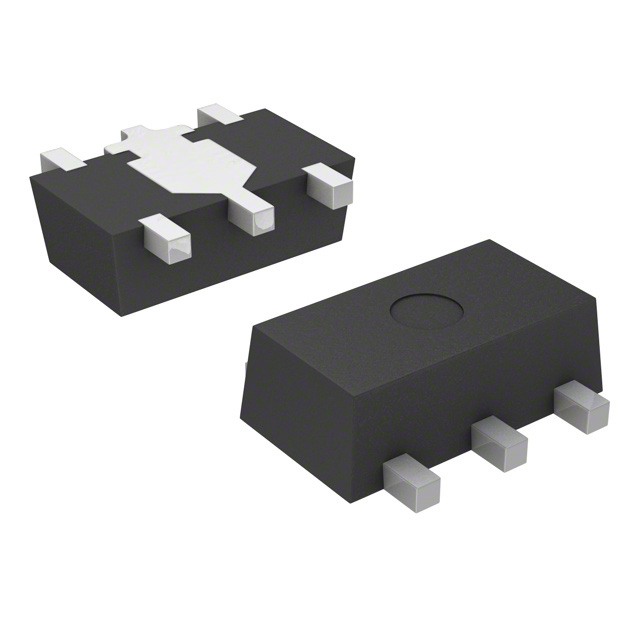

AP1152ADU33IC REG LINEAR 3.3V 300MA SOT89-5 |
2548 | 0.00 |
カートに追加今すぐ検索 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14.5V | 3.3V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1152ADU40IC REG LINEAR 4V 300MA SOT89-5 |
3204 | 0.00 |
カートに追加今すぐ検索 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14.5V | 4V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1152ADU45IC REG LINEAR 4.5V 300MA SOT89-5 |
2378 | 0.00 |
カートに追加今すぐ検索 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14.5V | 4.5V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1152ADU50IC REG LINEAR 5V 300MA SOT89-5 |
2276 | 0.00 |
カートに追加今すぐ検索 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14.5V | 5V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|

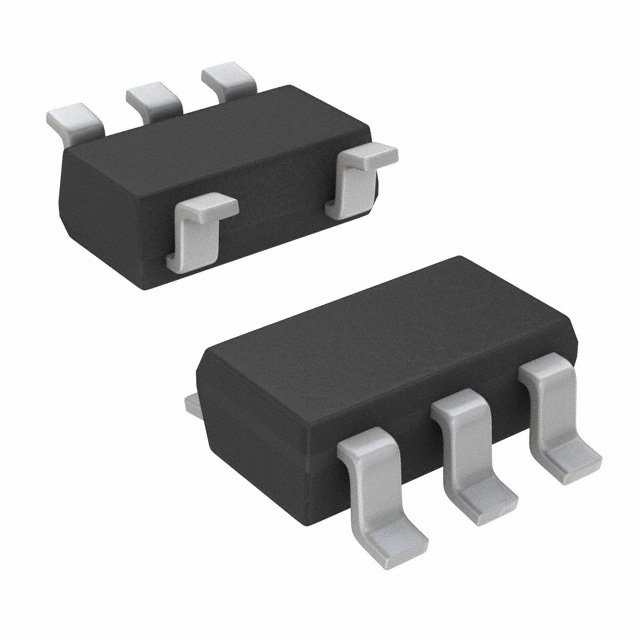

AP1153ADS21IC REG LINEAR 2.1V 100MA SOT23-5 |
2248 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 2.1V | - | 0.36V @ 100mA | 100mA | 145 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1153ADS28IC REG LINEAR 2.8V 100MA SOT23-5 |
2411 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 2.8V | - | 0.36V @ 100mA | 100mA | 145 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1153ADS30IC REG LINEAR 3V 100MA SOT23-5 |
3313 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 3V | - | 0.36V @ 100mA | 100mA | 145 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1153ADS33IC REG LINEAR 3.3V 100MA SOT23-5 |
3330 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 3.3V | - | 0.36V @ 100mA | 100mA | 145 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1154ADL21IC REG LINEAR 2.1V 1A 8HSOP |
2712 | 0.00 |
カートに追加今すぐ検索 |
8-SOIC (0.173, 4.40mm Width) Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 2.1V | - | 0.67V @ 1A | 1A | 624 µA | 1.8 mA | 80dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1154ADL25IC REG LINEAR 2.5V 1A 8HSOP |
3568 | 0.00 |
カートに追加今すぐ検索 |
8-SOIC (0.173, 4.40mm Width) Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 2.5V | - | 0.67V @ 1A | 1A | 624 µA | 1.8 mA | 80dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1154ADL30IC REG LINEAR 3V 1A 8HSOP |
3707 | 0.00 |
カートに追加今すぐ検索 |
8-SOIC (0.173, 4.40mm Width) Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 3V | - | 0.67V @ 1A | 1A | 624 µA | 1.8 mA | 80dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1156ADS13IC REG LIN -1.3V 150MA SOT23-5 |
3828 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Negative | Fixed | 1 | -17V | -1.3V | - | - | 150mA | 300 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1156ADS14IC REG LIN -1.4V 150MA SOT23-5 |
2022 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Negative | Fixed | 1 | -17V | -1.4V | - | - | 150mA | 300 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1156ADS15IC REG LIN -1.5V 150MA SOT23-5 |
2624 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Negative | Fixed | 1 | -17V | -1.5V | - | - | 150mA | 300 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1159ADS10IC REG LINEAR 1V 100MA SOT23-5 |
3054 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 1V | - | - | 100mA | 192 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1159ADS11IC REG LINEAR 1.1V 100MA SOT23-5 |
3397 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 1.1V | - | - | 100mA | 192 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
AP1159ADS12IC REG LINEAR 1.2V 100MA SOT23-5 |
3825 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 14V | 1.2V | - | - | 100mA | 192 µA | 3.3 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
TLS203B0LDV50XUMA1IC REG LINEAR 5V 300MA TSON-10 |
2933 | 1.00 |
カートに追加今すぐ検索 |
10-TFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.41V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Surface Mount |
|
データテーブル |
|
TLS203B0LDVXUMA1IC REG LIN POS ADJ 300MA TSON-10 |
3191 | 1.00 |
カートに追加今すぐ検索 |
10-TFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.4 @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Surface Mount |
|
データテーブル |
|
TLE4262GXUMA2IC REG LINEAR 5V 200MA DSO20 |
580 | 0.95 |
カートに追加今すぐ検索 |
20-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 150mA | 200mA | 50 µA | 23 mA | 54dB (100Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Surface Mount |
