うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

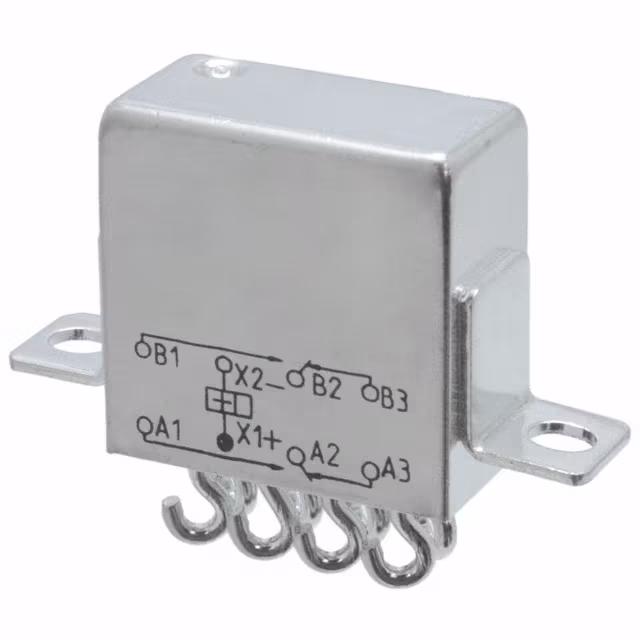

FCA-210-0923MRELAY GEN PURPOSE DPDT 10A 28V |
3109 | 191.73 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/9, FCA, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

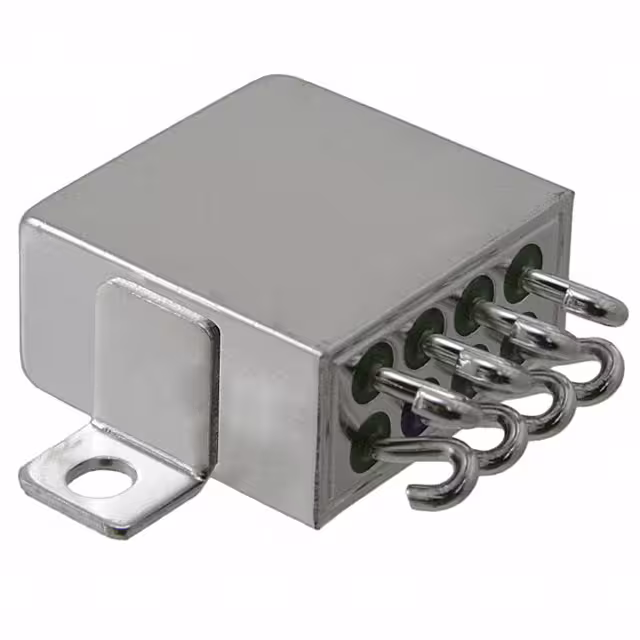

FCA-210-0917MRELAY GEN PURPOSE DPDT 10A 12V |
3197 | 191.73 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/9, FCA, CII | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|
FCB-205-0219MRELAY GEN PURPOSE DPDT 5A 28V |
3700 | 199.31 |
カートに追加今すぐ検索 |
Bulk | FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 28VDC - Nom | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 5 ms | 5 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

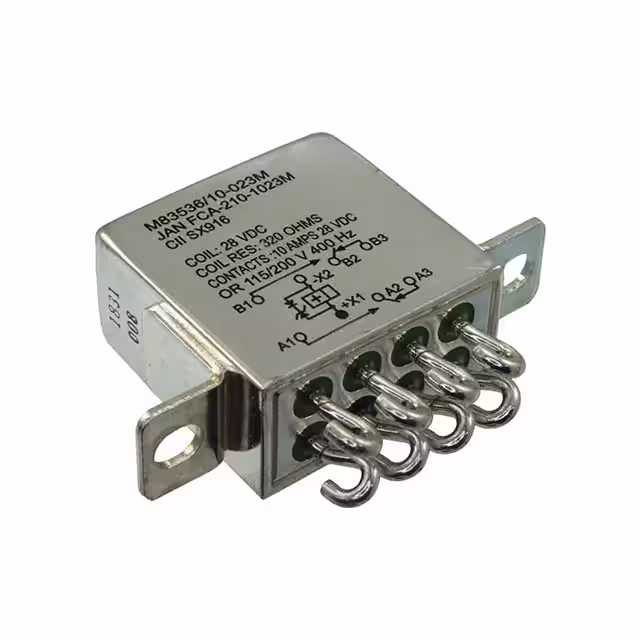

FCA-210-1023MRELAY DPDT 10A 28V |
2527 | 206.87 |
カートに追加今すぐ検索 |
Bulk | FCA-210 | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | - | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
データテーブル |
|

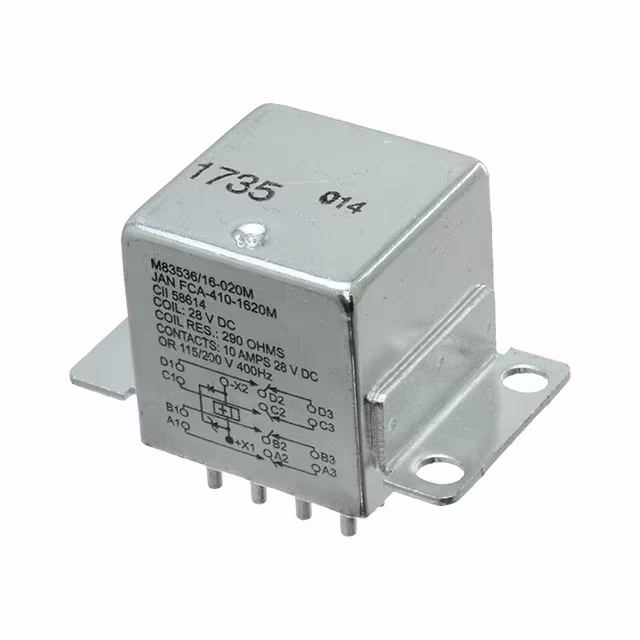

FCA-410-1620MRELAY GEN PURPOSE 4PDT 10A 28V |
2084 | 246.77 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/16, FCA, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

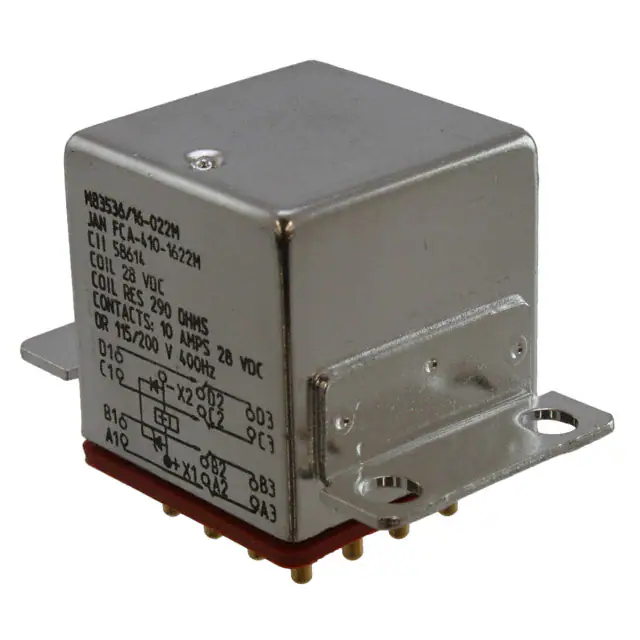

FCA-410-1622MRELAY GEN PURPOSE 4PDT 10A 28V |
3820 | 246.77 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/16, FCA, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

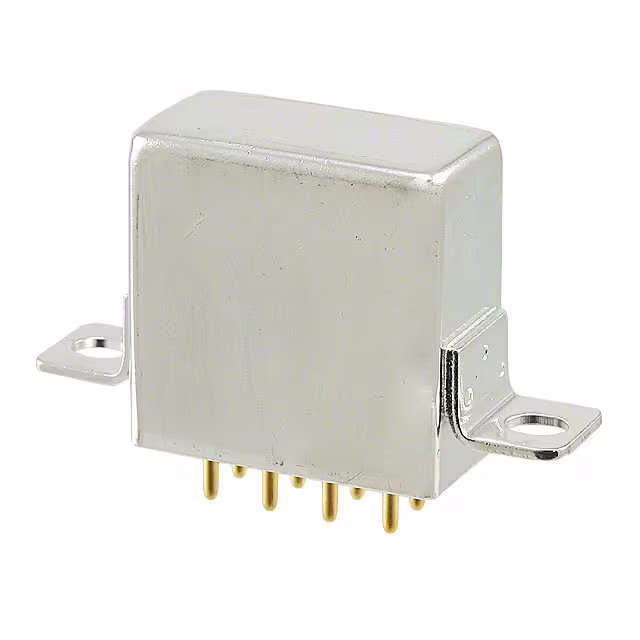

B07D634BC2-0051RELAY GEN PURPOSE DPDT 10A 26.5V |
2848 | 270.66 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-5757/23, 07, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
| |
|
PD10AB57RELAY GEN PURPOSE SPST 10A 24V |
2781 | 438.34 |
カートに追加今すぐ検索 |
Bulk | PD10, KILOVAC | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 10 A | 320VDC - Max | - | Non Latching | - | Screw Terminal | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - |
|
データテーブル |
|

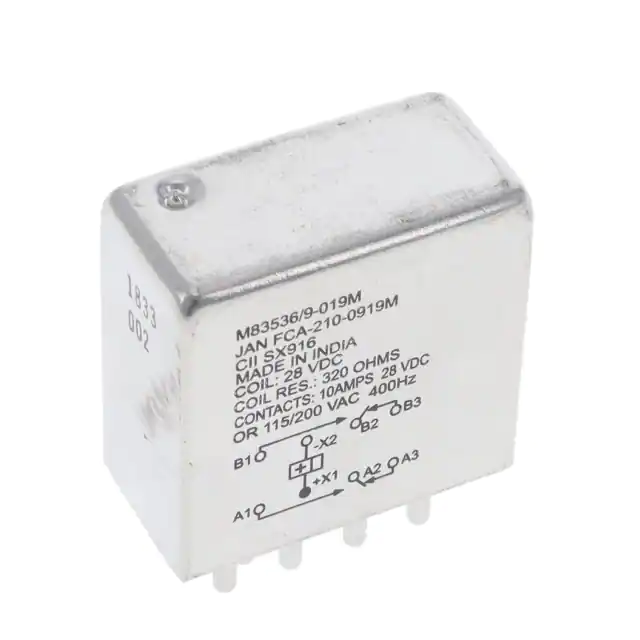

FCA-210-0919MRELAY GEN PURPOSE DPDT 10A 28V |
2390 | 188.01 |
カートに追加今すぐ検索 |
Bulk | FCA, CII | Active | Through Hole | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 87.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

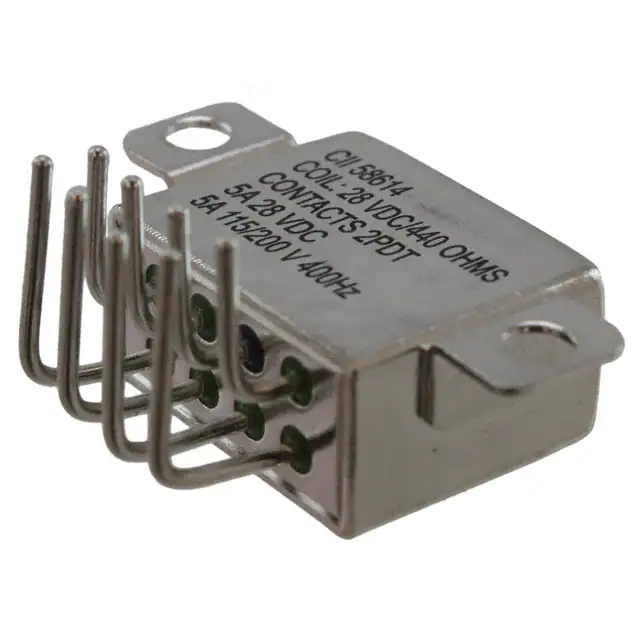

FCB-205-0227MRELAY GEN PURPOSE DPDT 5A 28V |
3834 | 195.44 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/2, FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
RFQ
