うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

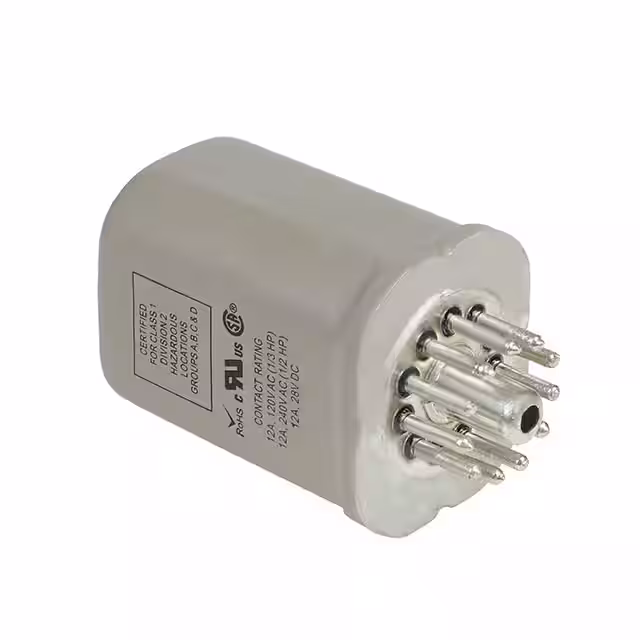

HGPRS-P2C12DRELAY GEN PURPOSE DPDT 12A 120V |
3507 | 52.16 |
カートに追加今すぐ検索 |
Box | GR | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 240VAC, 28VDC - Max | 70.6 mA | Non Latching | - | Plug In, 8 Pin (Octal) | Sealed - Hermetically | - | 102 VAC | 18 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver (Ag) |
|
データテーブル |
|

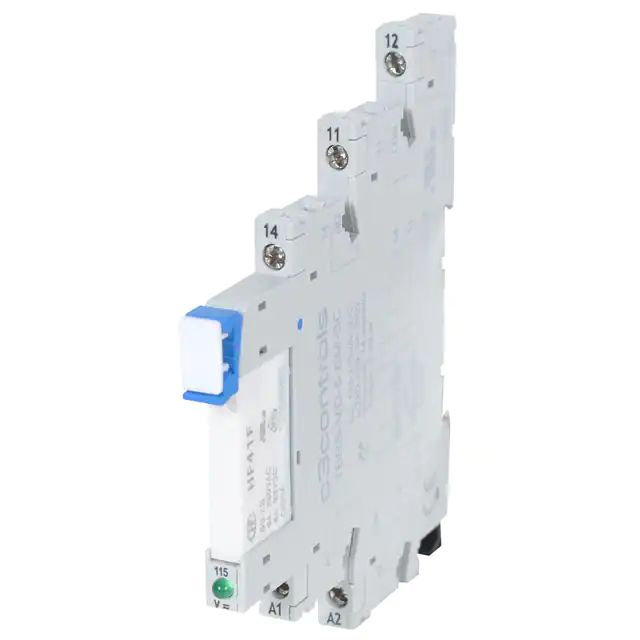

TBR-MC-6-1P-SCRELAY GEN PURPOSE SPDT 6A 24V |
2178 | 8.90 |
カートに追加今すぐ検索 |
Bag | TBR | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | Non Latching | - | Screw Terminal | - | - | 21.6 VAC/DC | 2.4 VAC/DC | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
データテーブル |
|

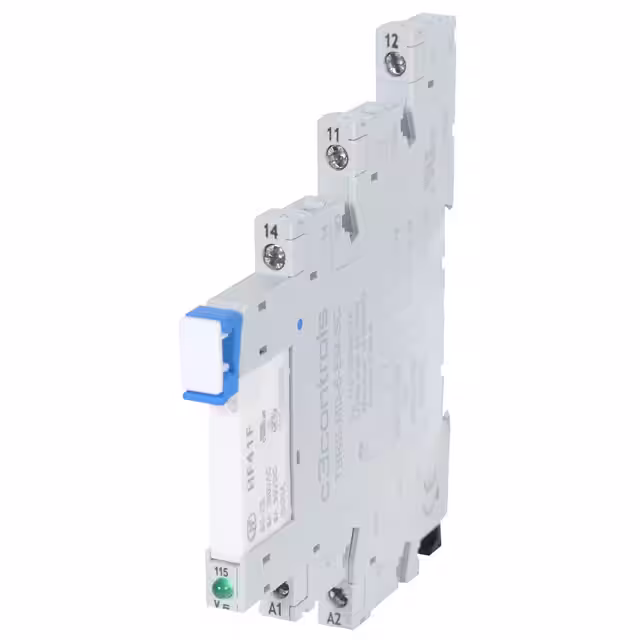

TBR-MD-6-1P-SCRELAY GEN PURP SPDT 6A 110-125V |
2754 | 8.90 |
カートに追加今すぐ検索 |
Bag | TBR | Active | DIN Rail | 110 ~ 125VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
RFQ
