うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

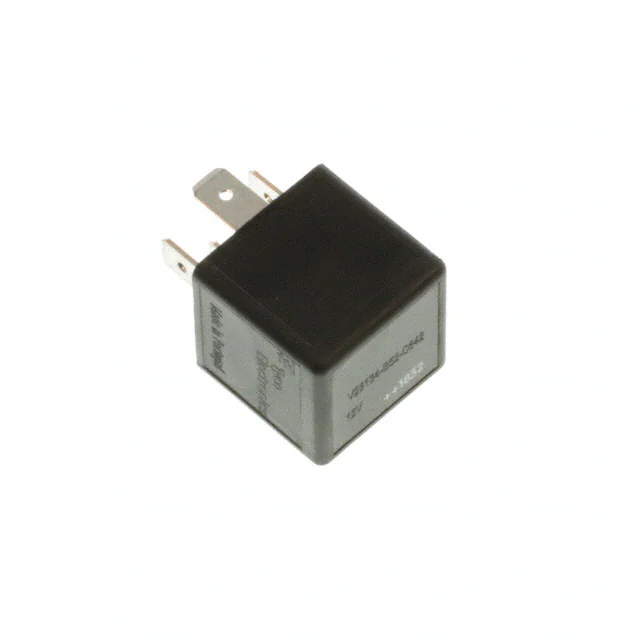

7-1393302-5RELAY GEN PURPOSE SPST 40A 12V |
3542 | 9.71 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 133.3 mA | Non Latching | - | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
|
データテーブル |
|

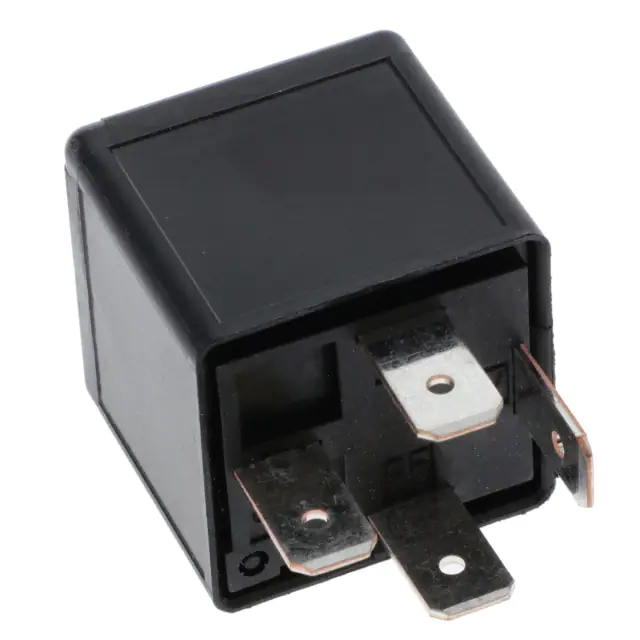

1393303-9RELAY GEN PURPOSE SPST 20A 24V |
410 | 9.77 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 74.1 mA | Non Latching | - | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
|
データテーブル |
|

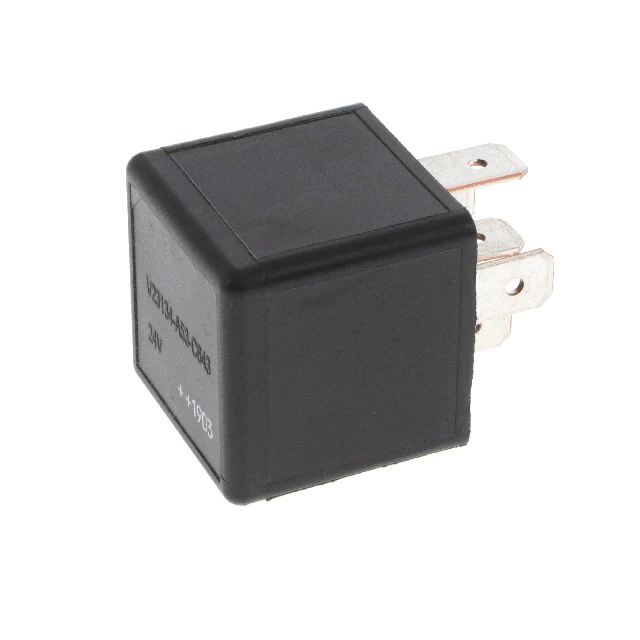

5-1393302-1RELAY GEN PURPOSE SPDT 20A 24V |
630 | 12.50 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 74.1 mA | Non Latching | - | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
|
データテーブル |
|

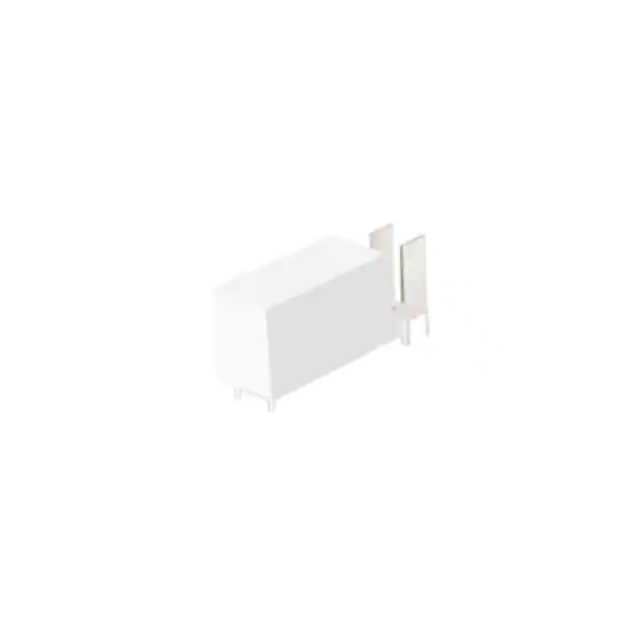

5-1415520-1RELAY GEN PURPOSE SPST 16A 12V |
295 | 8.19 |
カートに追加今すぐ検索 |
Tray | RF, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 11 ms | 7 ms | -40°C ~ 105°C | Silver Nickel (AgNi) |
|
データテーブル |
|
1-1414286-0RELAY GEN PURPOSE SPST 70A 12V |
815 | 12.48 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 133.3 mA | Non Latching | Diode | Quick Connect - 0.187/0.250 | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
| |
|
2071508-3OJT-SS-112HM-WG,00000 |
990 | 3.51 |
カートに追加今すぐ検索 |
Tray | OJT | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
データテーブル |
|

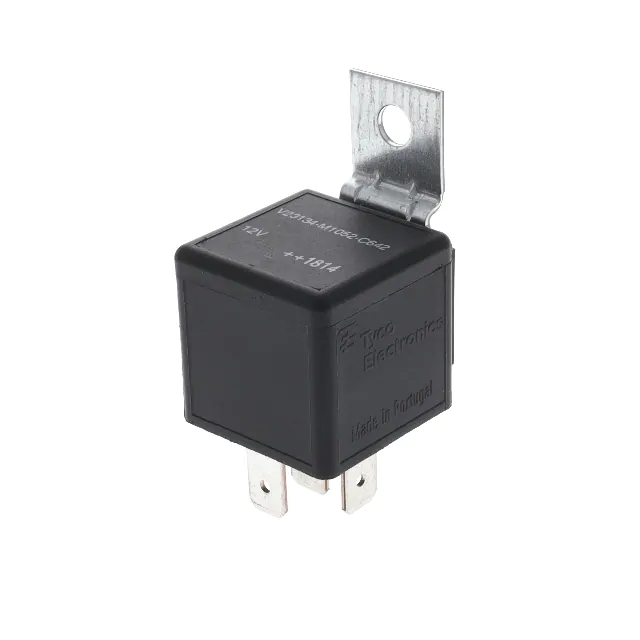

7-1393304-1RELAY GEN PURPOSE DPST 25A 12V |
2884 | 14.70 |
カートに追加今すぐ検索 |
Bulk | - | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 14VDC - Nom | 133.3 mA | Non Latching | - | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
|
データテーブル |
|

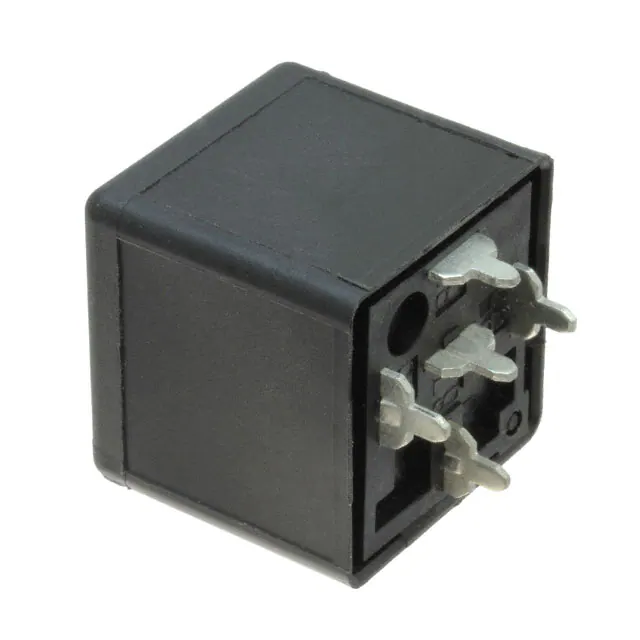

5-1393302-2RELAY GEN PURPOSE SPDT 20A 24V |
2179 | 14.37 |
カートに追加今すぐ検索 |
Bulk | - | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 74.1 mA | Non Latching | - | PC Pin | - | - | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
|
データテーブル |
|

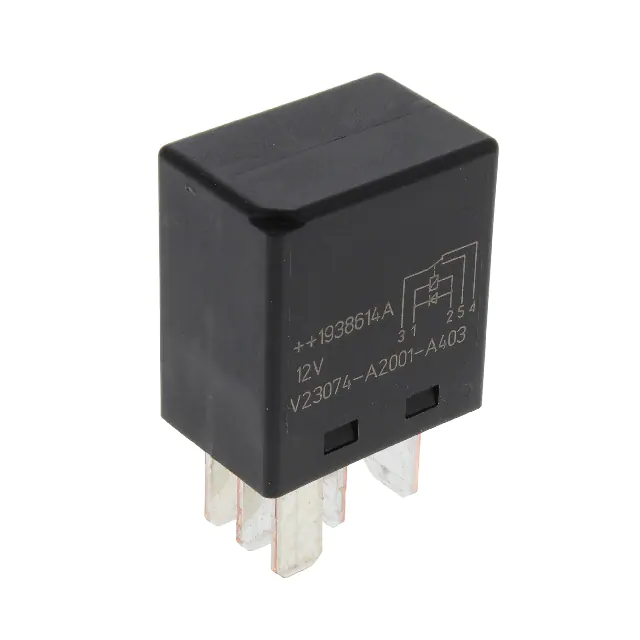

6-1419137-4RELAY GEN PURPOSE SPDT 25A 12V |
3815 | 6.72 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 12VDC | SPDT (1 Form C) | 25 A | 14VDC - Nom | 100.8 mA | Non Latching | Diode | Quick Connect - 0.187/0.250 | - | - | 7.2 VDC | 1.6 VDC | - | - | -40°C ~ 125°C | Silver (Ag) |
|
データテーブル |
|
1-1414147-0RELAY GEN PURPOSE SPST 70A 12V |
3242 | 10.42 |
カートに追加今すぐ検索 |
Bulk | - | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 133.3 mA | Non Latching | Resistor | Quick Connect - 0.187/0.250 | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy |
RFQ
