うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
8501CDO15V53POWER RELAY, TYPE C, 2 HP, 30A R |
2545 | 96.73 |
カートに追加今すぐ検索 |
Box | Square D NEMA | Active | Chassis Mount | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 30 A | 600VAC - Max | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - |
|
データテーブル |
|
RXG15BDHARMONY, INTERFACE PLUG-IN RELAY |
3622 | 7.69 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
データテーブル |
|

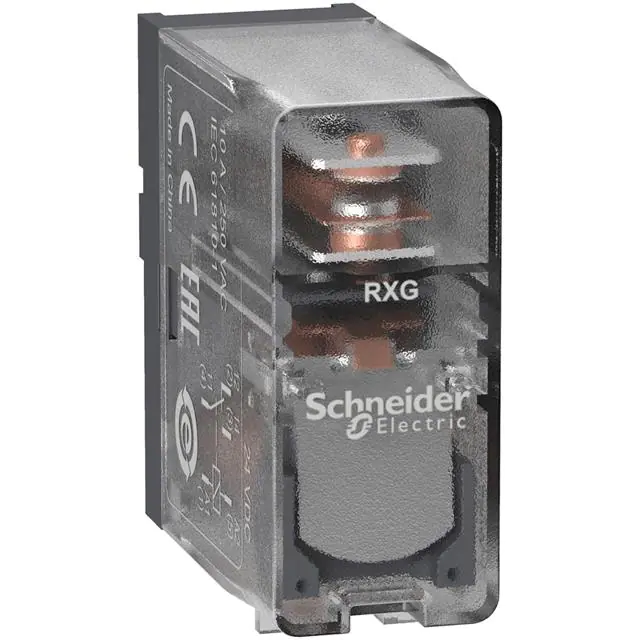

RXG15JDHARMONY, INTERFACE PLUG-IN RELAY |
3020 | 7.69 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
データテーブル |
|
RSB1A120M7HARMONY, INTERFACE PLUG-IN RELAY |
3641 | 7.91 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 220VAC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 6.7 mA | Non Latching | - | Plug In | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
データテーブル |
|
RSB1A120P7HARMONY, INTERFACE PLUG-IN RELAY |
2731 | 7.91 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 230VAC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 7 mA | Non Latching | - | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
データテーブル |
|
RSB1A120E7HARMONY, INTERFACE PLUG-IN RELAY |
2732 | 7.91 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 48VAC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 31.2 mA | Non Latching | - | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
データテーブル |
|
RSB1A120FDHARMONY, INTERFACE PLUG-IN RELAY |
3469 | 7.91 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 110VDC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 3.6 mA | Non Latching | - | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
データテーブル |
|
RSB1A120EDHARMONY, INTERFACE PLUG-IN RELAY |
3149 | 7.91 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 48VDC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 8.7 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
データテーブル |
|

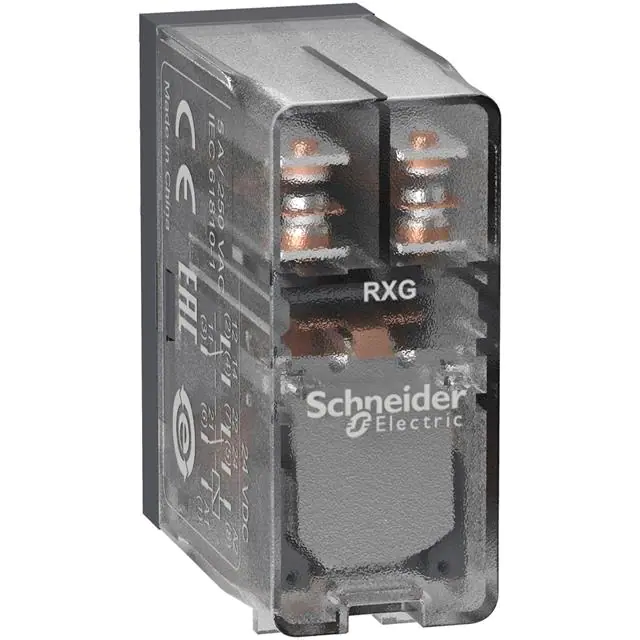

RXG25BDHARMONY, INTERFACE PLUG-IN RELAY |
3749 | 9.27 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
データテーブル |
|

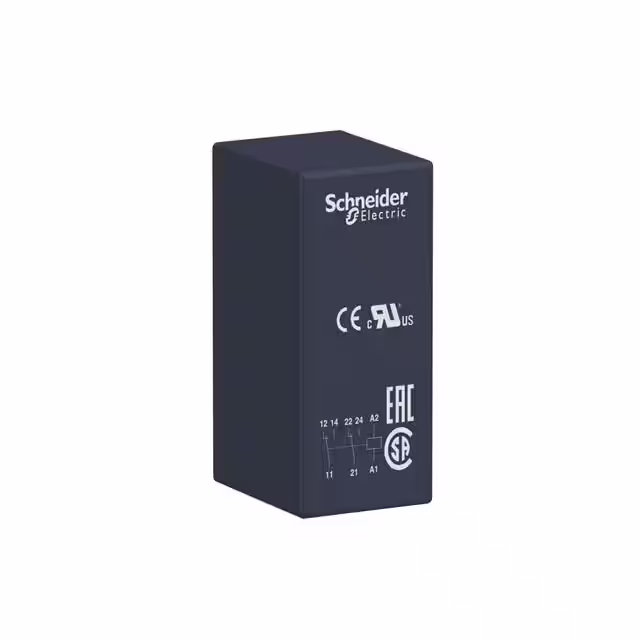

RSB2A080U7HARMONY, INTERFACE PLUG-IN RELAY |
3017 | 9.50 |
カートに追加今すぐ検索 |
Box | Harmony | Active | Socketable | 240VAC | DPDT (2 Form C) | 8 A | 250VAC, 300VDC - Max | 7.3 mA | Non Latching | - | Plug In | - | - | 192 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
RFQ
