うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

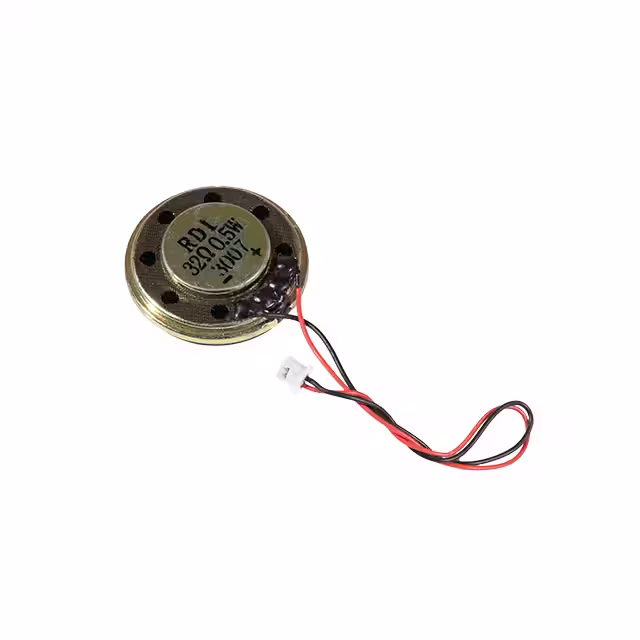

28A1050-32B042828 MM SPEAKER |
720 | 2.26 |
カートに追加今すぐ検索 |
Tray | - | Active | Magnetic | General Purpose | 800 Hz ~ 5.9 kHz | 800Hz | 32 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N35 | - | - | Wire Leads with Connector | 1.004 Dia (25.50mm) |
|
データテーブル |
|
28A10508BIP042828 MM SPEAKER |
750 | 2.55 |
カートに追加今すぐ検索 |
Tray | - | Active | Magnetic | General Purpose | 800 Hz ~ 5.9 kHz | 800Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.004 Dia (25.50mm) |
|
データテーブル |
|

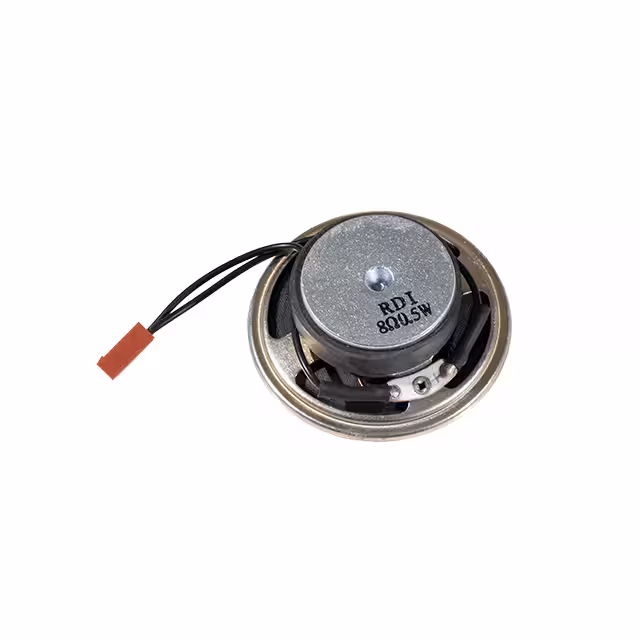

RFR576TI18-ASSY57 MM SPEAKER |
800 | 2.91 |
カートに追加今すぐ検索 |
Box | - | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Ferrite | - | - | Wire Leads with Connector | 2.244 Dia (57.00mm) |
|
データテーブル |
|

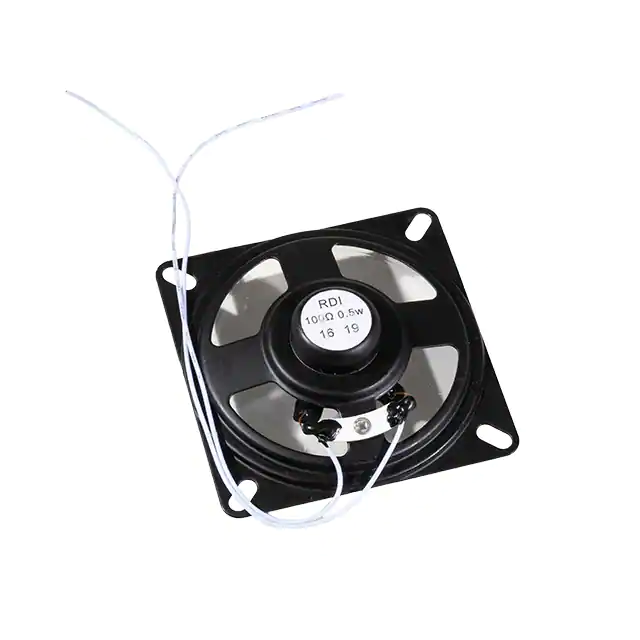

RNS-66100183NLSPEAKER |
260 | 4.07 |
カートに追加今すぐ検索 |
Box | - | Active | Magnetic | General Purpose | 310 Hz ~ 10 kHz | 310Hz | 100 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | - | - | - | - | Wire Leads | 2.598 L x 2.598 W (66.00mm x 66.00mm) |
|
データテーブル |
|

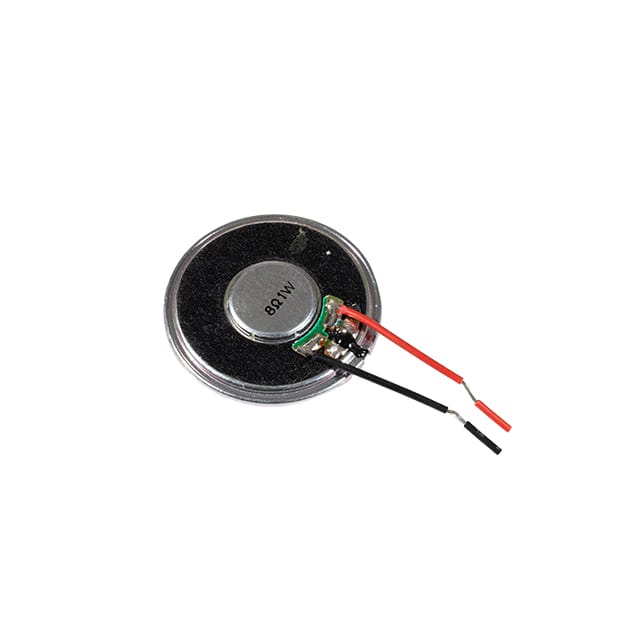

40A5758BIP1J11MSPEAKER |
2841 | 3.22 |
カートに追加今すぐ検索 |
Tray | - | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N35 | - | - | Wire Leads | 1.575 Dia (40.00mm) |
|
データテーブル |
|

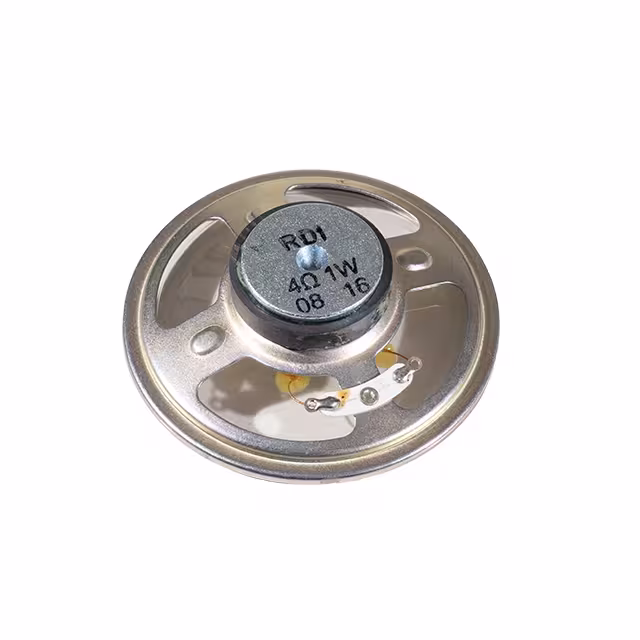

RFR773N-4-RB-NL77 MM SPEAKER |
3297 | 0.00 |
カートに追加今すぐ検索 |
Box | - | Active | Magnetic | General Purpose | 300 Hz ~ 10 kHz | 300Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.031 Dia (77.00mm) |
|
データテーブル |
|

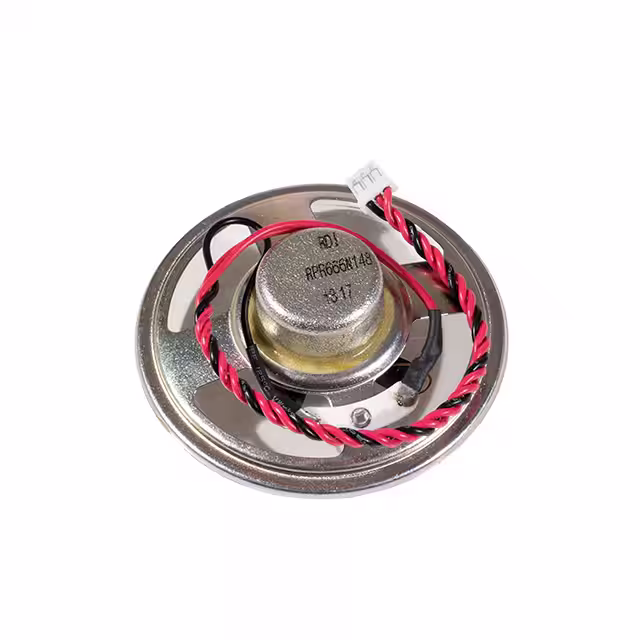

RPR666N148100NLSPEAKER |
3710 | 0.00 |
カートに追加今すぐ検索 |
Box | - | Active | Magnetic | General Purpose | 350 Hz ~ 10 kHz | 350Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 2.598 Dia (66.00mm) |
RFQ
