うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

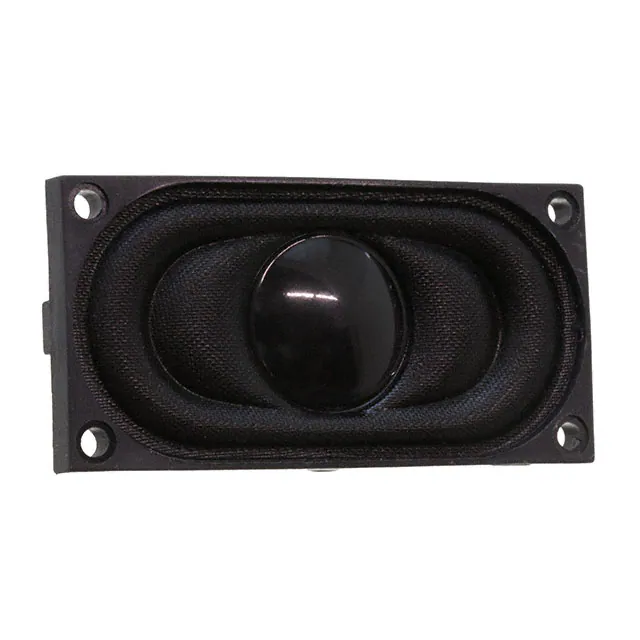

K 20.40 - 8 OHMK 20.40 - 8 OHM |
900 | 6.79 |
カートに追加今すぐ検索 |
Bulk | Miniature Speaker | Active | - | General Purpose | 400 Hz ~ 20 kHz | 650Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | - | - | - | - | Solder Pads | - |
|
データテーブル |
|

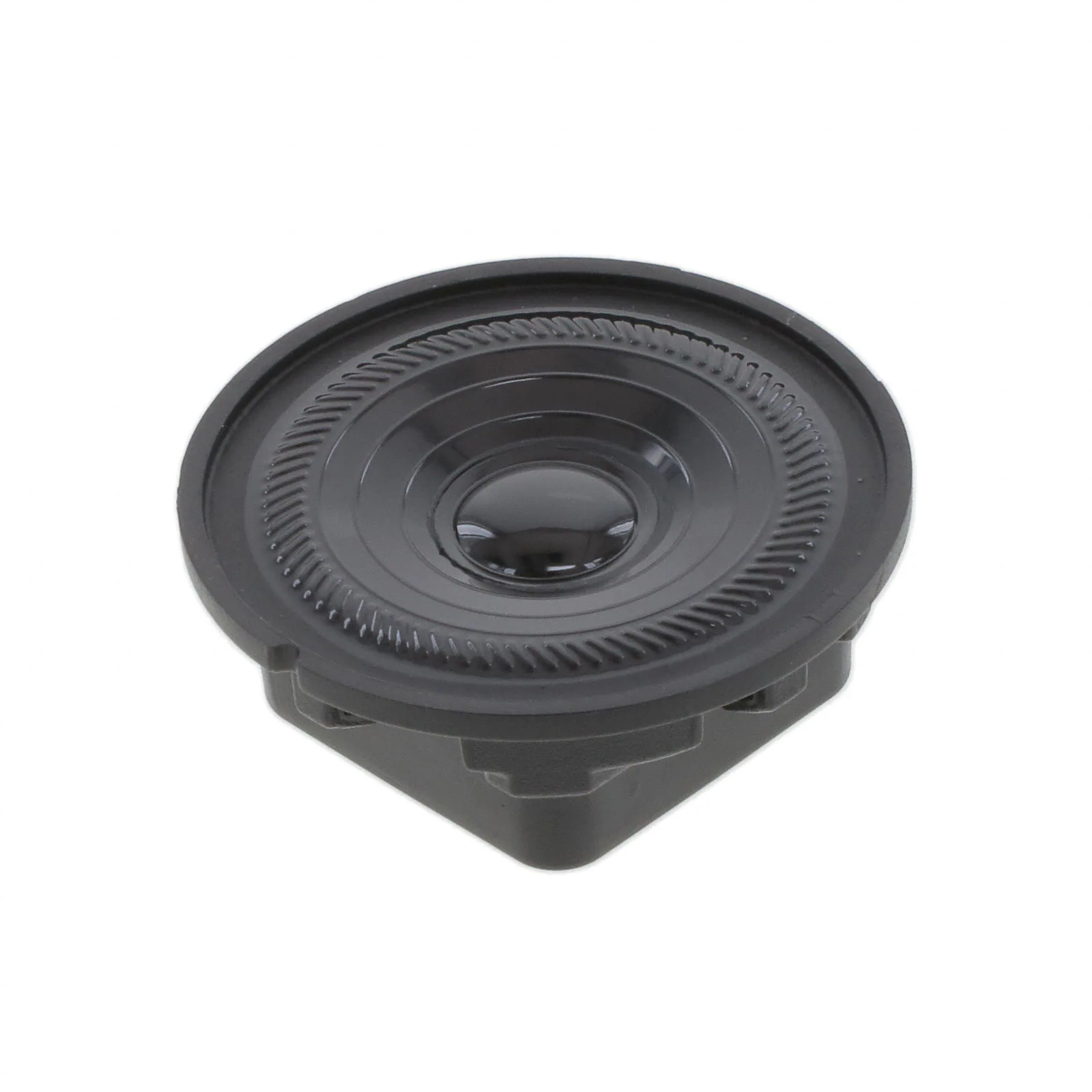

K 50 WP - 50 OHMK 50 WP - 50 OHM |
517 | 6.81 |
カートに追加今すぐ検索 |
Bulk | Miniature Speaker | Active | - | General Purpose | 180 Hz ~ 17 kHz | 300Hz | 50 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 1.969 Dia (50.00mm) |
|
データテーブル |
|

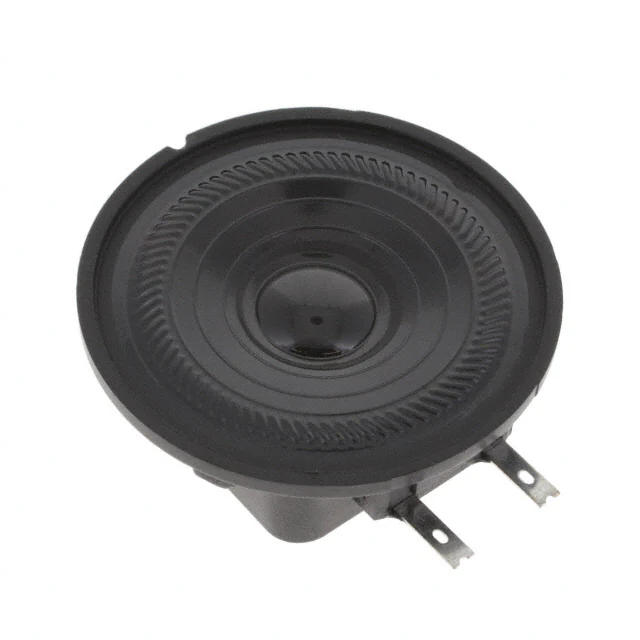

K 50 WPT - 8 OHMK 50 WPT - 8 OHM |
2013 | 6.84 |
カートに追加今すぐ検索 |
Bulk | Miniature Speaker | Active | - | General Purpose | 180 Hz ~ 17 kHz | 300Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 1.969 Dia (50.00mm) |
|
データテーブル |
|
SC 4.7 ND - 8 OHMSC 4.7 ND - 8 OHM |
462 | 8.22 |
カートに追加今すぐ検索 |
Bulk | - | Active | Magnetic | General Purpose | 220 Hz ~ 20 kHz | 360Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | - | - | - | - | Quick Connect | 2.776 L x 1.634 W (70.50mm x 41.50mm) |
|
データテーブル |
|
SC 4.7 ND - 4 OHMSC 4.7 ND - 4 OHM |
326 | 8.26 |
カートに追加今すぐ検索 |
Bulk | - | Active | Magnetic | General Purpose | 220 Hz ~ 20 kHz | 360Hz | 4 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | - | Nd | - | - | Quick Connect | - |
|
データテーブル |
|

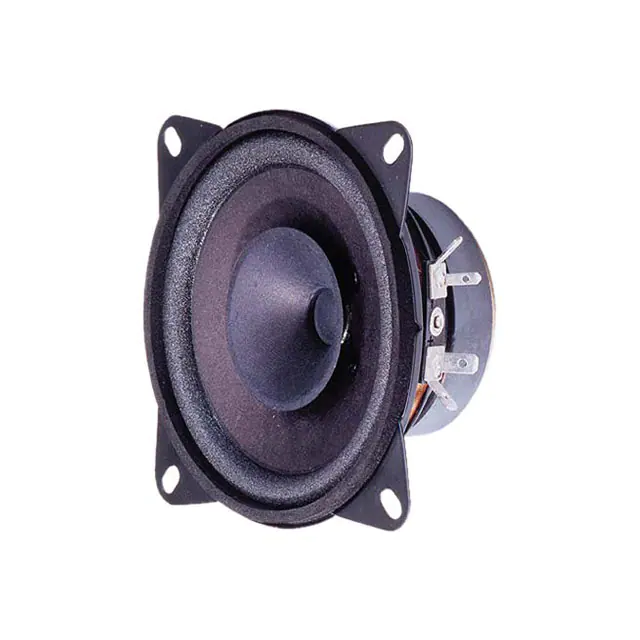

FR 10 HM - 8 OHMFR 10 HM - 8 OHM |
184 | 8.78 |
カートに追加今すぐ検索 |
Bulk | - | Active | Magnetic | Tweeter | 95 Hz ~ 22 kHz | 120Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | - |
|
データテーブル |
|

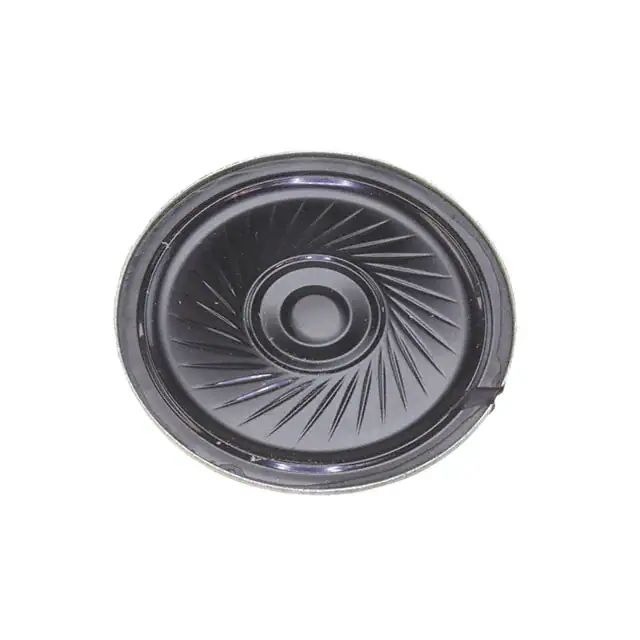

K 40 - 50 OHMK 40 - 50 OHM |
657 | 5.69 |
カートに追加今すぐ検索 |
Bulk | Miniature Speaker | Active | - | General Purpose | 350 Hz ~ 6 kHz | 520Hz | 50 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575 Dia (40.00mm) |
|
データテーブル |
|

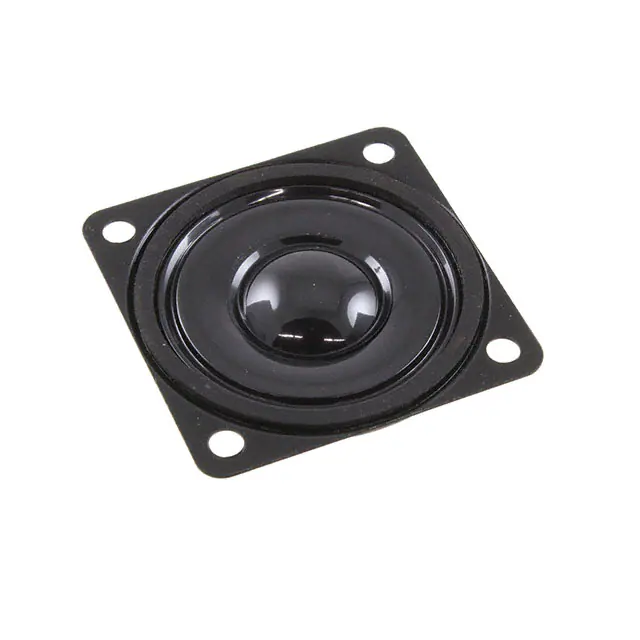

K 40 SQ - 8 OHMK 40 SQ - 8 OHM |
357 | 6.67 |
カートに追加今すぐ検索 |
Bulk | Miniature Speaker | Active | - | General Purpose | 300 Hz ~ 20 kHz | 520Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575 L x 1.575 W (40.00mm x 40.00mm) |
|
データテーブル |
|

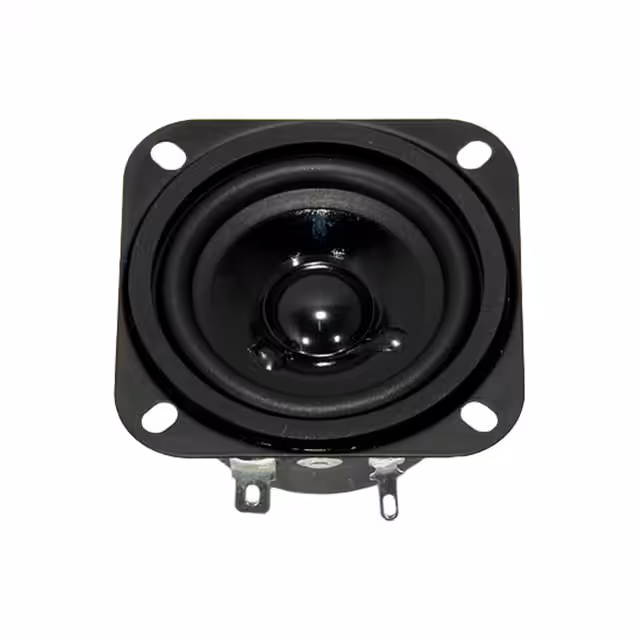

FR 58 - 8 OHMFR 58 - 8 OHM |
381 | 9.54 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - |
|
データテーブル |
|
FR 58 - 4 OHMFULLRANGE SPEAKER FR 58 - 4 OHM |
275 | 9.81 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 4 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - |
RFQ
