うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
SF2421-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
2766 | 25.00 |
カートに追加今すぐ検索 |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 41.07 / 290 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms |
|
データテーブル |
|

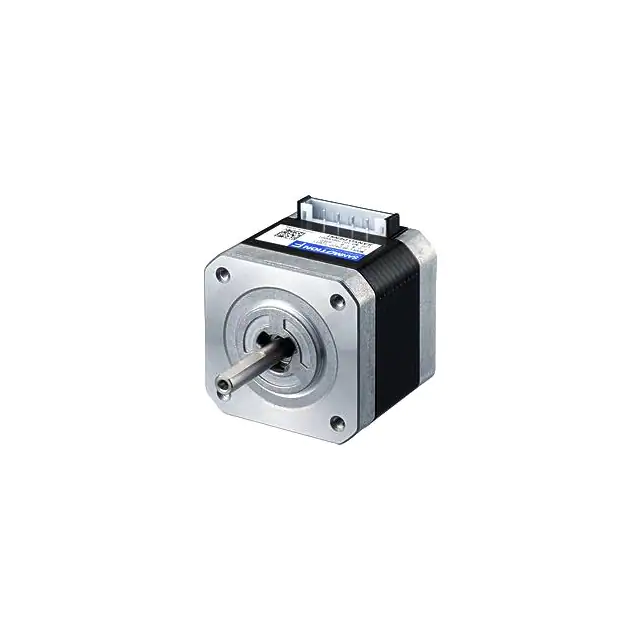

SF2422-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
2780 | 25.83 |
カートに追加今すぐ検索 |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 60.89 / 430 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 4.6 Ohms |
|
データテーブル |
|

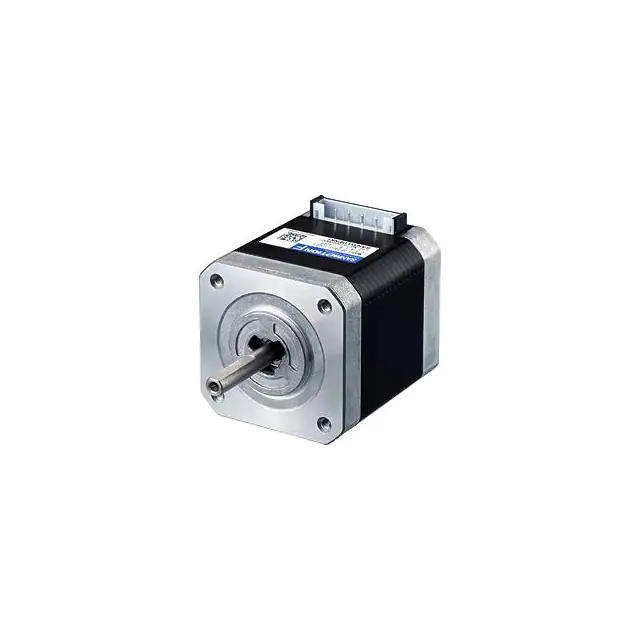

SF2423-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
2982 | 29.16 |
カートに追加今すぐ検索 |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 79.3 / 560 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 5.3 Ohms |
|
データテーブル |
|

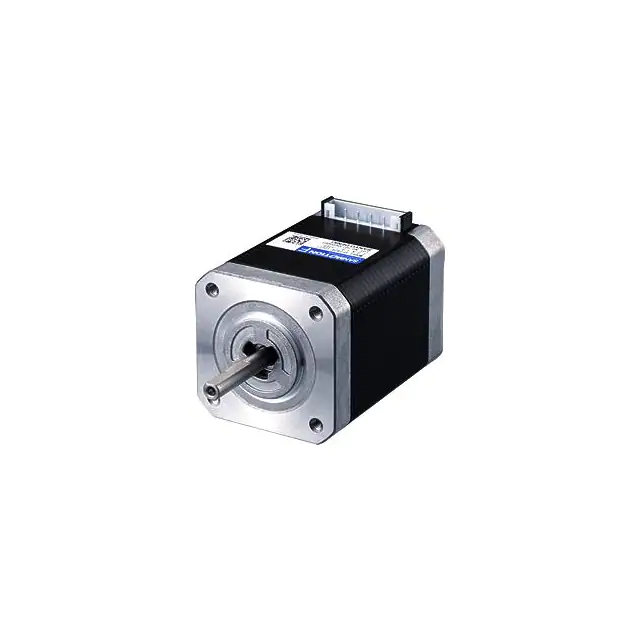

SF2424-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
3369 | 30.83 |
カートに追加今すぐ検索 |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms |
|
データテーブル |
|
SF2424-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
2452 | 30.83 |
カートに追加今すぐ検索 |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms |
|
データテーブル |
|

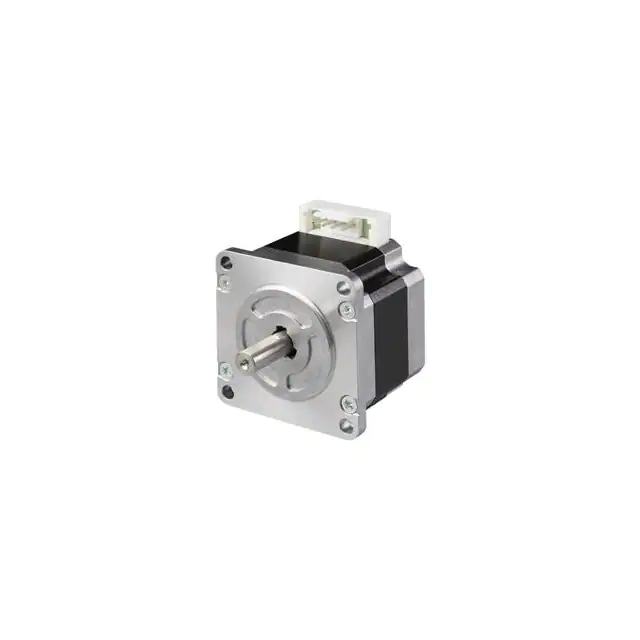

SM2561C20B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3383 | 35.00 |
カートに追加今すぐ検索 |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 1.1 Ohms |
|
データテーブル |
|
SM2561C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3483 | 35.00 |
カートに追加今すぐ検索 |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.28 Ohms |
|
データテーブル |
|
SM2561C60B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3642 | 35.00 |
カートに追加今すぐ検索 |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.14 Ohms |
|
データテーブル |
|
SM2562C60B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2308 | 39.16 |
カートに追加今すぐ検索 |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 198.3 / 1400 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.18 Ohms |
|
データテーブル |
|
SM2562C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3759 | 39.16 |
カートに追加今すぐ検索 |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 198.3 / 1400 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.37 Ohms |
