うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Motor Type | Stroke Length | Load Force ( Dynamic ) | Load Force ( Static ) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
3624LINEAR ACTUATOR MOTOR 12V |
2802 | 609.75 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 4.000 (101.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3626LINEAR ACTUATOR MOTOR 12V |
3366 | 613.25 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 6.000 (152.40mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3628LINEAR ACTUATOR MOTOR 12V |
2424 | 616.49 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 8.000 (203.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3630LINEAR ACTUATOR MOTOR 12V |
2020 | 632.45 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 12.000 (304.80mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3633LINEAR ACTUATOR MOTOR 12V |
2830 | 632.45 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 18.000 (457.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3635LINEAR ACTUATOR MOTOR 12V |
2089 | 653.95 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 24.000 (609.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
3632LINEAR ACTUATOR MOTOR 12V |
3954 | 673.25 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 18.000 (457.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|
AER13.6X10X10DFPIEZO ACTUATOR, AER, RESIN, 9.1M |
3503 | 681.75 |
カートに追加今すぐ検索 |
Box | AER | Active | Linear Actuator | Piezoelectric | 0.0004 (9.10µm) | 494.58lbf (2200.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|
3634LINEAR ACTUATOR MOTOR 12V |
3653 | 695.95 |
カートに追加今すぐ検索 |
- | Glideforce | Active | Linear Actuator | Brushed | 24.000 (609.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant |
|
データテーブル |
|

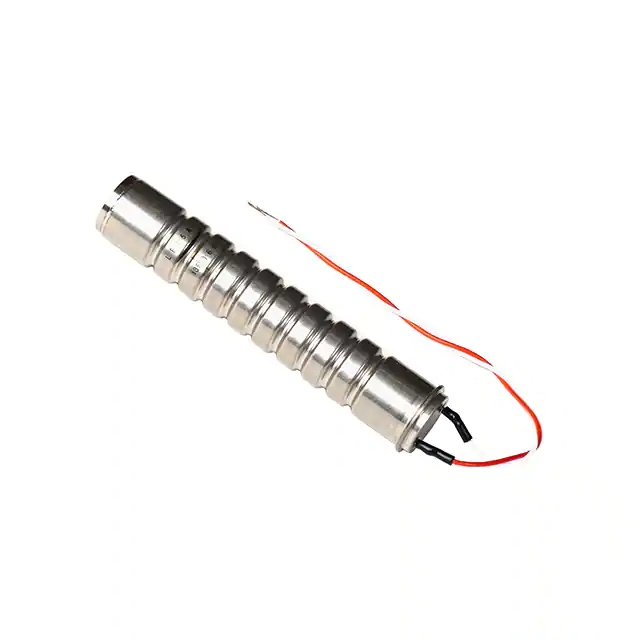

ASB170C801ND0LFSOLENOID PIEZO 17UM 150V |
3755 | 736.29 |
カートに追加今すぐ検索 |
Bulk | ASB | Active | Linear Actuator | Piezoelectric | 0.0007 (17.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|

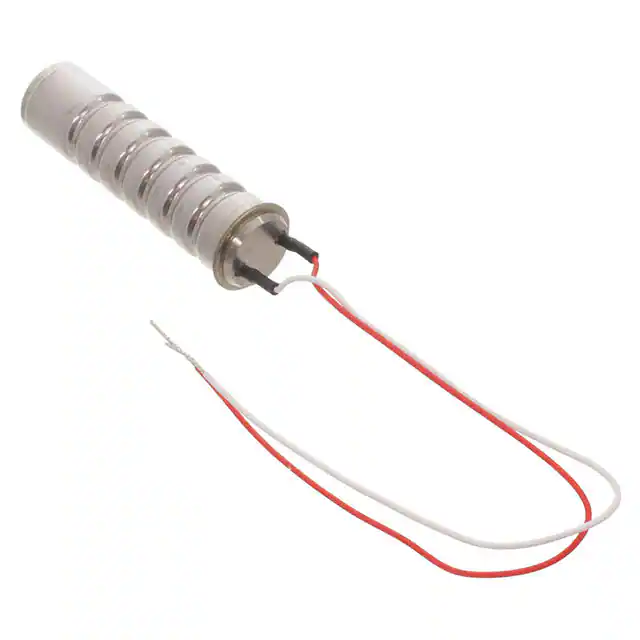

AHB550C801WD1-A0LFAHB, METAL SEALD, 55UM,800N, WIT |
3817 | 885.23 |
カートに追加今すぐ検索 |
Bulk | AHB | Active | Linear Actuator | Piezoelectric | 0.0022 (55.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|
AE2525D15DFKEMET, AE, RESIN, 15.6UM, 20000N |
3819 | 1336.23 |
カートに追加今すぐ検索 |
Bulk | AE | Active | Linear Actuator | Piezoelectric | 0.0006 (15.60µm) | 4496.18lbf (20000.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|

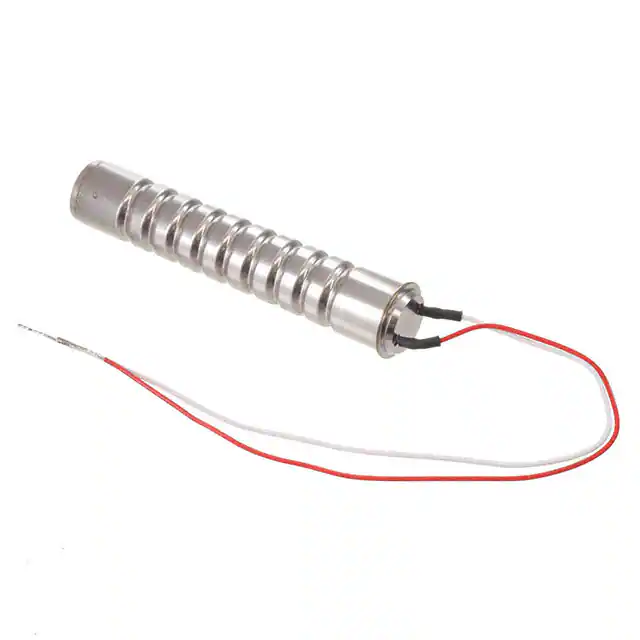

AHB800C801WD1-A0LFAHB, METAL SEALD, 80UM, 800N, WI |
3645 | 1377.14 |
カートに追加今すぐ検索 |
Bulk | AHB | Active | Linear Actuator | Piezoelectric | 0.0031 (80.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|

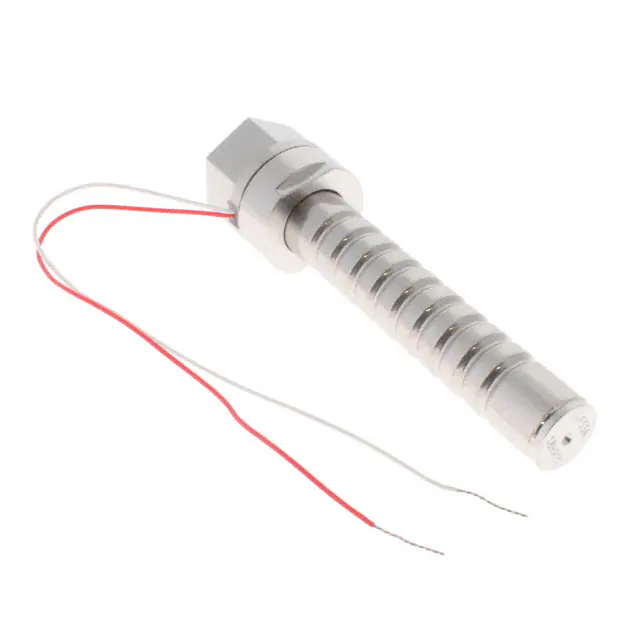

AHB800C801ND0LFAHB, METAL SEALD, 80UM, 800N, FE |
2769 | 1484.12 |
カートに追加今すぐ検索 |
Bulk | AHB | Active | Linear Actuator | Piezoelectric | 0.0031 (80.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
|
データテーブル |
|

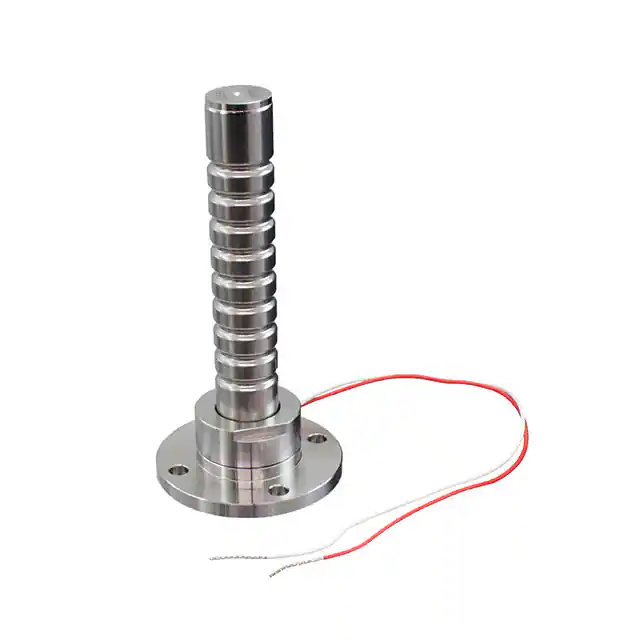

AHB800C801FD0LFAHB, METAL SEALD, 80UM, 800N, FL |
2908 | 1484.12 |
カートに追加今すぐ検索 |
Bulk | AHB | Active | Linear Actuator | Piezoelectric | 0.0031 (80.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - |
| |
|

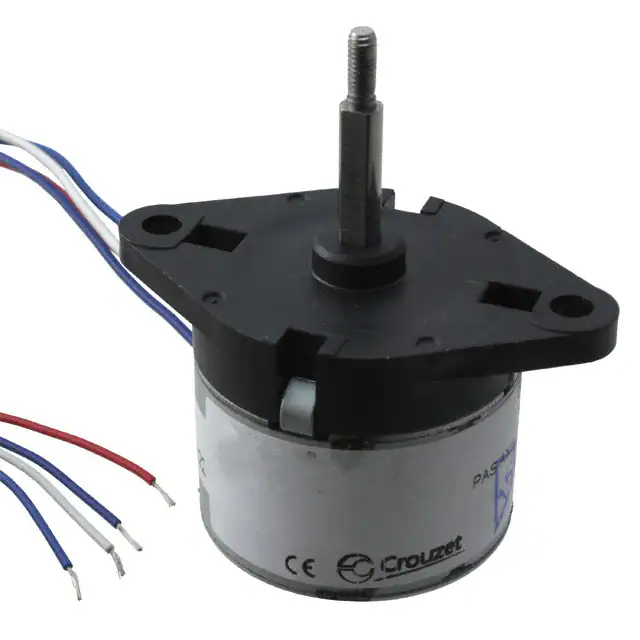

80510503LINEAR ACTUATOR MTR 500 RPM 230V |
3432 | 52.61 |
カートに追加今すぐ検索 |
Bulk | 80510 | Active | Linear Actuator | Synchronous | 0.394 (10.00mm) | 6.07lbf (27.0N) | 22.48lbf (100.0N) | 0.26 in/s (6.6 mm/s) | - | 230VAC | Ball Screw | - | - | - | - | - | Wire Leads | -5°C ~ 75°C | - |
|
データテーブル |
|
EPCC-BS-32-50-3P-AELECTRO-CYLINDER |
2233 | 598.56 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator (Without Motor) | - | 1.969 (50.00mm) | - | - | 7.40 in/s (188.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 |
|
データテーブル |
|
EPCC-BS-32-50-8P-AELECTRO-CYLINDER |
2441 | 598.56 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator (Without Motor) | - | 1.969 (50.00mm) | - | - | 19.69 in/s (500.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 |
|
データテーブル |
|
EPCC-BS-32-100-3P-AELECTRO-CYLINDER |
3508 | 610.74 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator (Without Motor) | - | 3.937 (100.00mm) | - | - | 7.40 in/s (188.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 |
|
データテーブル |
|
EPCC-BS-32-100-8P-AELECTRO-CYLINDER |
2218 | 610.74 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator (Without Motor) | - | 3.937 (100.00mm) | - | - | 19.69 in/s (500.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 |
