うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Motor Type | Stroke Length | Load Force ( Dynamic ) | Load Force ( Static ) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

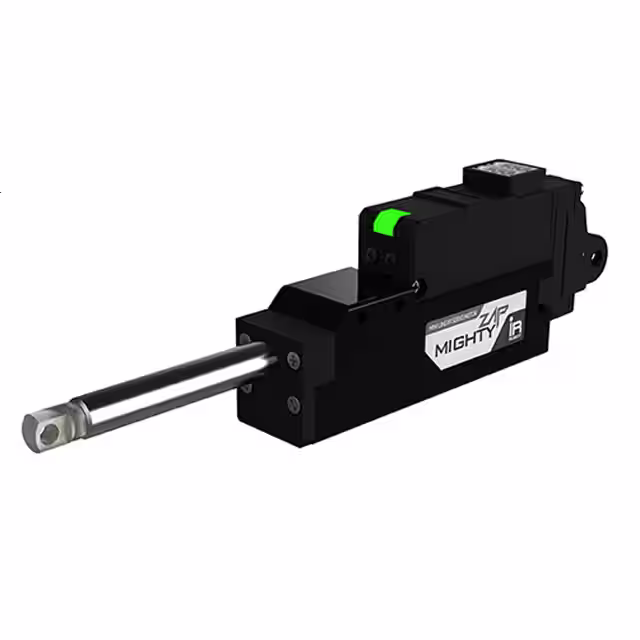

12LF-42PT-40Micro/Mini Linear Servo Actuator |
3980 | 199.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 1.575 (40.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Ball Screw | ±60µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-78F-40Micro/Mini Linear Servo Actuator |
2190 | 199.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 1.575 (40.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Ball Screw | ±60µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-42F-40Micro/Mini Linear Servo Actuator |
3008 | 199.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 1.575 (40.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Ball Screw | ±60µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-78PT-40Micro/Mini Linear Servo Actuator |
3674 | 199.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 1.575 (40.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Ball Screw | ±60µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|

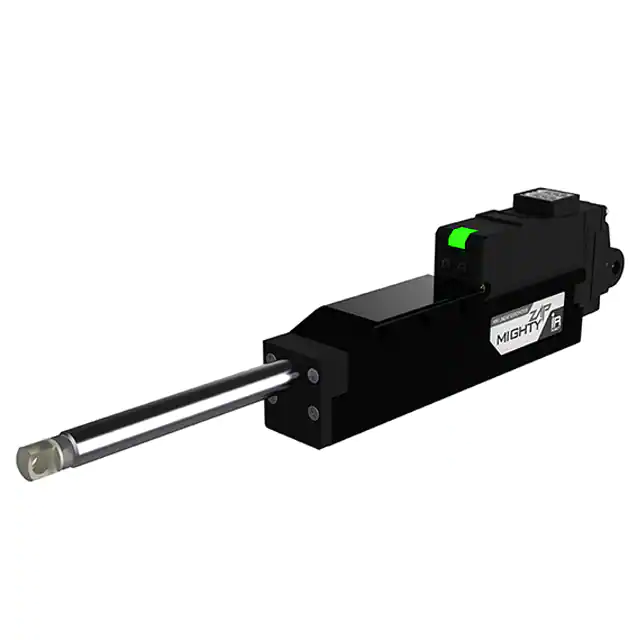

12LF-17F-53Micro/Mini Linear Servo Actuator |
2469 | 209.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 7.64lbf (34.0N) | - | 3.64 in/s (92.4 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-27F-53Micro/Mini Linear Servo Actuator |
3322 | 209.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-27PT-53Micro/Mini Linear Servo Actuator |
3202 | 209.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-17PT-53Micro/Mini Linear Servo Actuator |
3567 | 209.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 7.64lbf (34.0N) | - | 3.64 in/s (92.4 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-78F-53Micro/Mini Linear Servo Actuator |
2045 | 219.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 50 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-42PT-53Micro/Mini Linear Servo Actuator |
2618 | 219.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 20 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-78PT-53Micro/Mini Linear Servo Actuator |
2956 | 219.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 50 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-42F-53Micro/Mini Linear Servo Actuator |
2927 | 219.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 2.087 (53.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Ball Screw | ±80µm | - | Integrated Controller | 20 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|

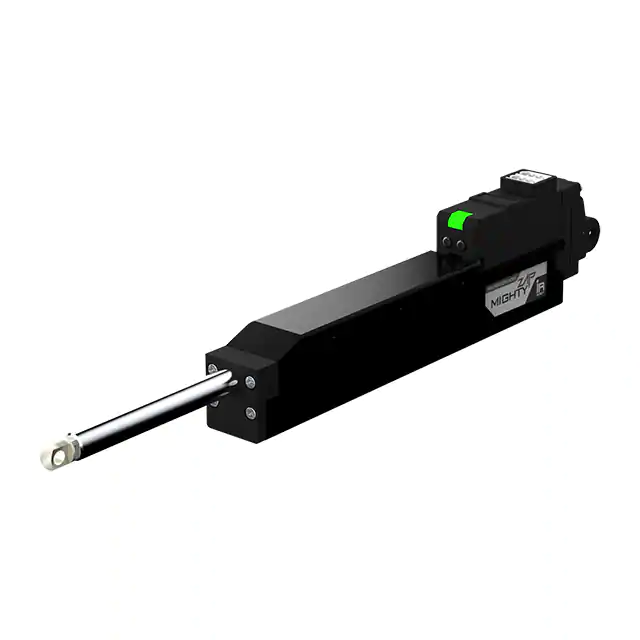

12LF-27PT-90Micro/Mini Linear Servo Actuator |
3765 | 229.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 3.563 (90.50mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Ball Screw | ±0.10mm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
|
データテーブル |
|
12LF-27F-90Micro/Mini Linear Servo Actuator |
2044 | 229.00 |
カートに追加今すぐ検索 |
Box | 12Lf (Force Control) | Active | Linear Actuator | Brushed (Coreless) | 3.563 (90.50mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Ball Screw | ±0.10mm | - | Integrated Controller | 10 | - | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant |
| |
|

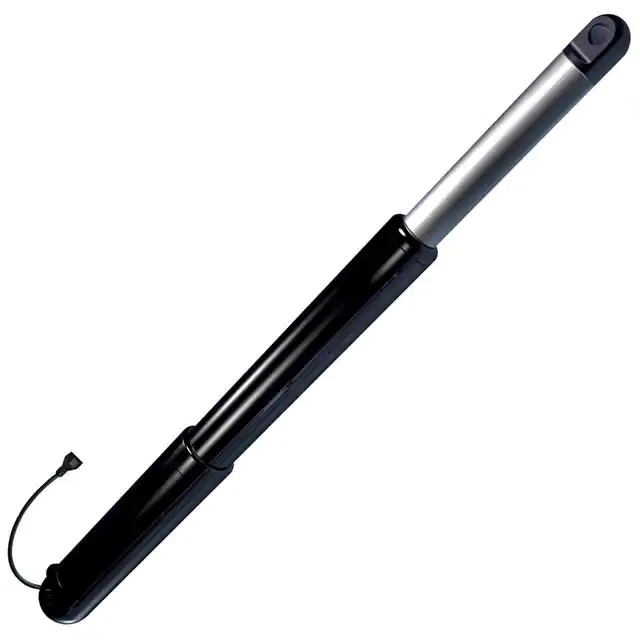

EEL-35-400-EL-24V400MM STROKE, 24VDC 600N LOAD |
2670 | 335.99 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator | - | 15.748 (400.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
EEL-50-200-EL-24V200MM STROKE, 24VDC 2200N LOAD |
3448 | 429.15 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator | - | 7.874 (200.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
EEL-50-400-EL-24V400MM STROKE, 24VDC 2200N LOAD |
3230 | 479.98 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator | - | 15.748 (400.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
EEL-60-200-EL-24V200MM STROKE, 24VDC 4300N LOAD |
3805 | 799.96 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator | - | 7.874 (200.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
EEL-60-400-EL-24V400MM STROKE, 24VDC 4300N LOAD |
3336 | 897.51 |
カートに追加今すぐ検索 |
Bulk | - | Active | Linear Actuator | - | 15.748 (400.00mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
データテーブル |
|

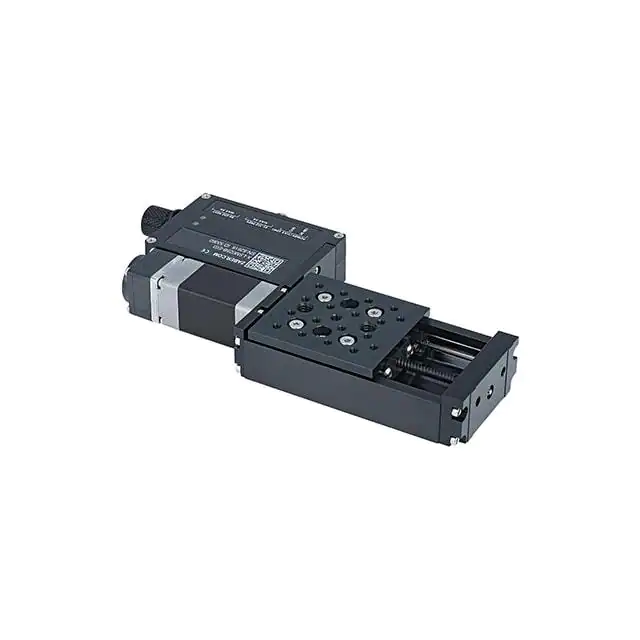

X-LSM025A-SE03-KX13ALINEAR STAGE 25MM FPITCH |
3592 | 2288.05 |
カートに追加今すぐ検索 |
Box | X-LSM-E | Active | Linear Axis | Stepper, Bipolar | 0.984 (25.00mm) | 12.36lbf (55.0N) | - | 1.02 in/s (26.0 mm/s) | - | 24 ~ 48VDC | Ball Screw | 15µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - |
