うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Package / Case | Packaging | Series | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input ( Max ) | Voltage - Output ( Min / Fixed ) | Voltage - Output ( Max ) | Voltage Dropout(Max) | Current - Output | Current - Quiescent ( Iq ) | Current - Supply ( Max ) | PSRR | Control Features | Protection Features | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
TLE4295GV26NTSA1IC REG LINEAR 2.6V 30MA SCT595-5 |
3193 | 0.00 |
カートに追加今すぐ検索 |
6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Automotive, AEC-Q100, OPTIREG™ | Discontinued at Mosen | Positive | Fixed | 1 | 45V | 2.6V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Surface Mount |
|
データテーブル |
|
TLE4295GV30NTSA1IC REG LINEAR 3V 30MA SCT595-5 |
2146 | 0.00 |
カートに追加今すぐ検索 |
6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Automotive, AEC-Q100, OPTIREG™ | Discontinued at Mosen | Positive | Fixed | 1 | 45V | 3V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Surface Mount |
|
データテーブル |
|
TLE4274DV50ATMA1IC REG LIN 5V 400MA TO252-3-11 |
3153 | 0.00 |
カートに追加今すぐ検索 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Surface Mount |
|
データテーブル |
|
TLE4275DATMA1IC REG LIN 5V 400MA TO252-5-11 |
3324 | 1.00 |
カートに追加今すぐ検索 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 400mA | 200 µA | 22 mA | 60dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Surface Mount |
|
データテーブル |
|

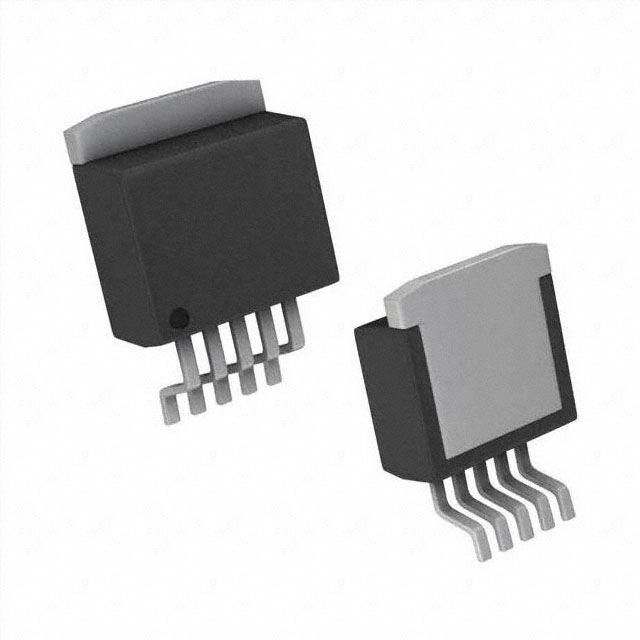

TLE4275GATMA1IC REG LINEAR 5V 400MA TO263-5-1 |
3164 | 1.00 |
カートに追加今すぐ検索 |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 400mA | 200 µA | 22 mA | 60dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Surface Mount |
|
データテーブル |
|
TLE4274DV50ITJKKNTMA1IC REG LINEAR 5V 400MA TO252-3 |
3846 | 0.00 |
カートに追加今すぐ検索 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Surface Mount |
|
データテーブル |
|
TLE42742DV50NTMA1IC REG LINEAR 5V 400MA |
3738 | 0.00 |
カートに追加今すぐ検索 |
- | Bulk | Automotive, AEC-Q100, OPTIREG™ | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | - |
|
データテーブル |
|
AS1370-ATDT-28IC REG LINEAR 2.8V 200MA 8MLPD |
3152 | 0.00 |
カートに追加今すぐ検索 |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 50V | 2.8V | - | 0.55V @ 200mA (Typ) | 200mA | 8 µA | 3.7 µA | 50dB (1kHz) | Enable, Shutdown | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
AS1370-ATDT-33IC REG LINEAR 3.3V 200MA 8MLPD |
2548 | 0.00 |
カートに追加今すぐ検索 |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 50V | 3.3V | - | 0.55V @ 200mA (Typ) | 200mA | 8 µA | 3.7 µA | 50dB (1kHz) | Enable, Shutdown | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
NCV78M15BDTRKGIC REG LINEAR 15V 500MA DPAK |
3284 | 0.00 |
カートに追加今すぐ検索 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Automotive, AEC-Q100 | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
データテーブル |
|
MAX8636ETA+TIC REG LIN POS PROG 300MA 8TDFN |
2776 | 0.00 |
カートに追加今すぐ検索 |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Programmable | 2 | 5.5V | 1.5V, 2.8V | 3V, 3V | 0.2V @ 100mA, 0.2V @ 100mA | 300mA, 300mA | 75 µA | - | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|
MAX8877EZK36+TIC REG LIN 3.6V 150MA TSOT23-5 |
2026 | 0.00 |
カートに追加今すぐ検索 |
SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 6.5V | 3.6V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
LX13043CLDIC REG LINEAR 3.3V 1A 6DFN |
3805 | 0.00 |
カートに追加今すぐ検索 |
6-VDFN Exposed Pad | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1.3V @ 1A | 1A | 3.4 µA | - | 40dB (120kHz) | - | - | 0°C ~ 125°C (TJ) | Surface Mount |
|
データテーブル |
|
LX8240ILDIC REG LIN POS ADJ 800MA 8WDFN |
2944 | 0.00 |
カートに追加今すぐ検索 |
8-WFDFN Exposed Pad | Tube | - | Active | Positive | Adjustable | 1 | 4.2V | 1V | 4V | 0.2V @ 800mA | 800mA | 20 µA | - | 59dB ~ 33dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
データテーブル |
|
SGR137LIC REG LIN NEG ADJ 1.5A 20CLCC |
3305 | 0.00 |
カートに追加今すぐ検索 |
20-CLCC | Bulk | - | Discontinued at Mosen | Negative | Adjustable | 1 | 36V | -1.2V | -37V | - | 1.5A | - | - | - | Current Limit | - | -55°C ~ 125°C (TA) | Surface Mount |
|
データテーブル |
|
SGR137L-EVIC REG LIN NEG ADJ 1.5A 20CLCC |
3696 | 0.00 |
カートに追加今すぐ検索 |
20-CLCC | Bulk | - | Discontinued at Mosen | Negative | Adjustable | 1 | 36V | -1.2V | -37V | - | 1.5A | - | - | - | Current Limit | - | -55°C ~ 125°C (TA) | Surface Mount |
|
データテーブル |
|
RT9072BGB(Z00)IC REG LIN POS ADJ 20MA SOT23-5 |
2562 | 0.00 |
カートに追加今すぐ検索 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Adjustable | 1 | 80V | 1.25V | 60V | 0.23V @ 20mA | 20mA | 30 µA | 1.2 mA | 75dB (120Hz) | Shutdown | Current Limit, Thermal Shutdown, Reverse Current | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
RT9078N-33GJ5IC REG LIN 3.3V 300MA TSOT23-5 |
3721 | 0.00 |
カートに追加今すぐ検索 |
SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 300mA | 300mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|

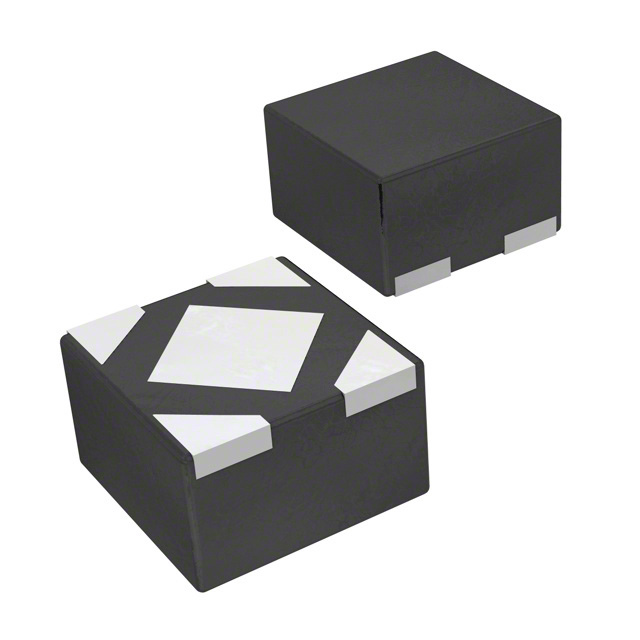

RT9080-18GQZIC REG LINEAR 1.8V 600MA 4ZQFN |
2921 | 0.00 |
カートに追加今すぐ検索 |
4-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.83V @ 600mA | 600mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
データテーブル |
|
RT9080-33GQZIC REG LINEAR 3.3V 600MA 4ZQFN |
3444 | 0.00 |
カートに追加今すぐ検索 |
4-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.53V @ 600mA | 600mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
