うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|

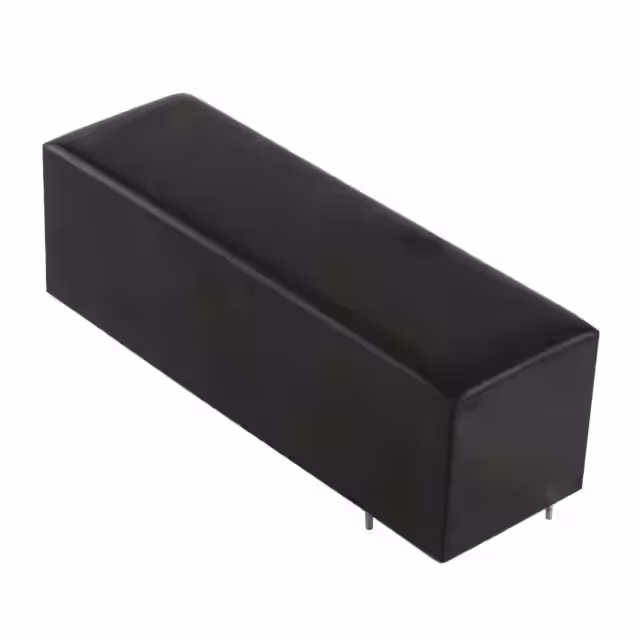

K81C235RELAY GEN PURPOSE SPDT 5A 12V |
169 | 407.19 |
カートに追加今すぐ検索 |
Bulk | K81, KILOVAC | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - |
| |
|

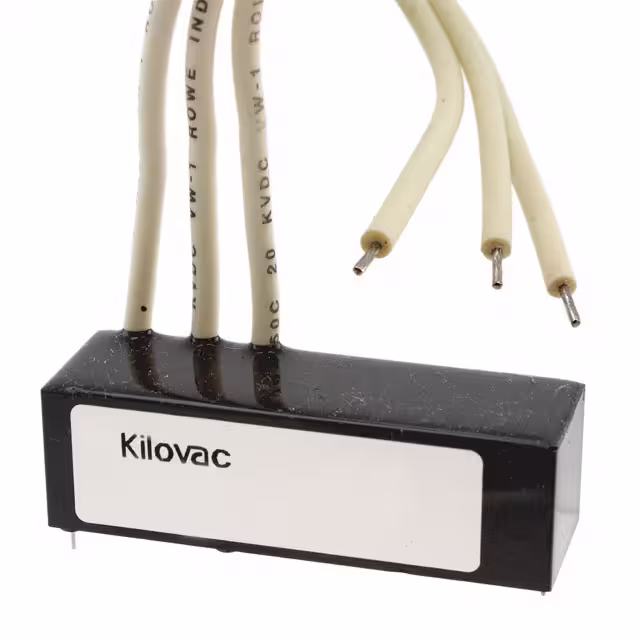

K81C345RELAY GEN PURPOSE SPDT 10A 26.5V |
3226 | 407.19 |
カートに追加今すぐ検索 |
Bulk | K81, KILOVAC | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 10 A | 10000VDC - Max | - | Non Latching | - | PC Pin, Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - |
| |
|

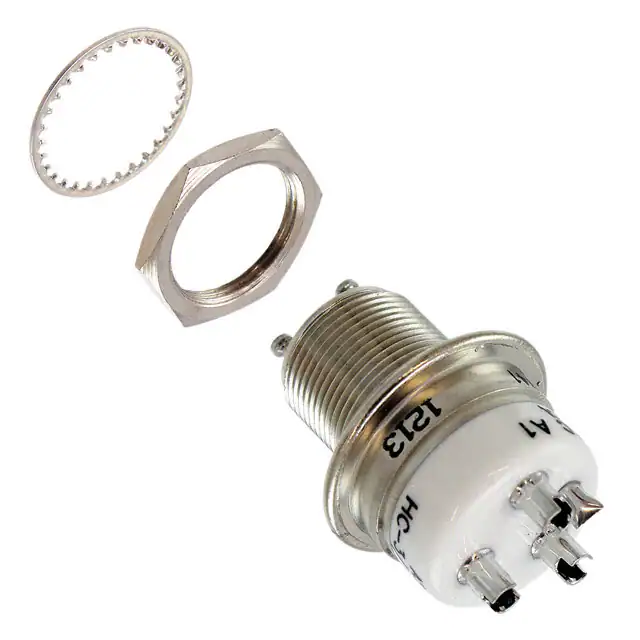

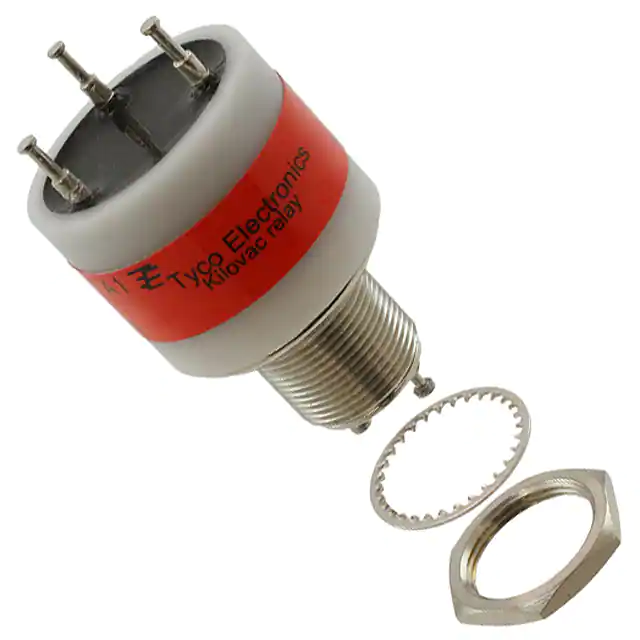

HC-3/12VDCRELAY GEN PURPOSE SPDT 18A 12V |
451 | 563.30 |
カートに追加今すぐ検索 |
Bulk | HC-3, KILOVAC | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) |
|
データテーブル |
|
K40P332RELAY GEN PURPOSE SPST 35A 26.5V |
2744 | 595.07 |
カートに追加今すぐ検索 |
Bulk | K40, KILOVAC | Active | Panel Mount | 26.5VDC | SPST-NO (1 Form A) | 35 A | 5000VDC - Max | - | Latching, Dual Coil | - | Wire Leads | - | - | 16 VDC | - | 1 ms | - | -55°C ~ 125°C | - |
| |
|

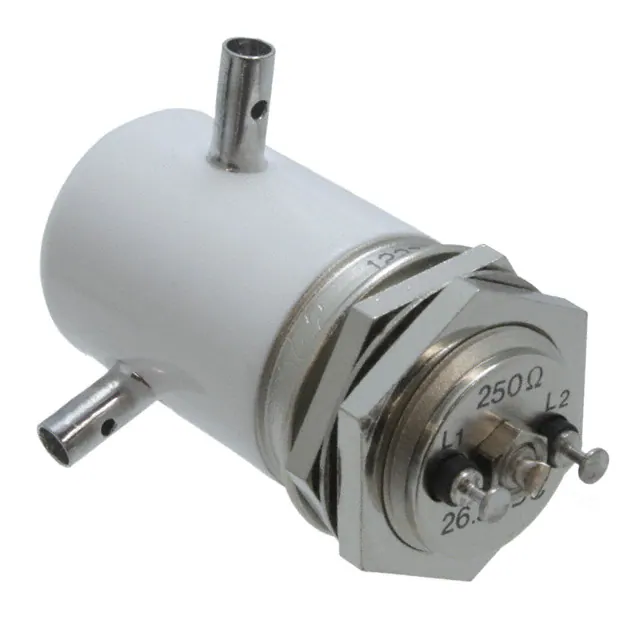

HC-4RELAY GEN PURPOSE SPDT 15A 26.5V |
106 | 628.14 |
カートに追加今すぐ検索 |
Bulk | HC-4, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 15 A | 8000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) |
| |
|
KC-11RELAY GEN PURPOSE SPDT 50A 26.5V |
3891 | 1011.52 |
カートに追加今すぐ検索 |
Bulk | KC-11, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 50 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - |
|
データテーブル |
|

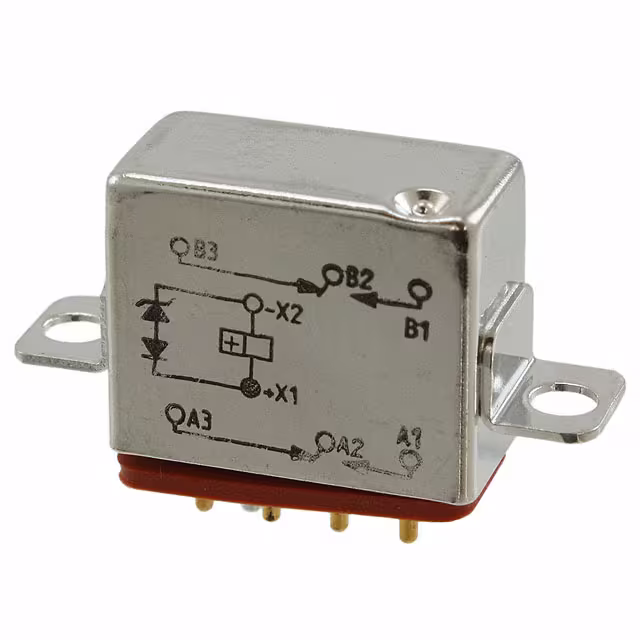

FCB-205-0224MRELAY GEN PURPOSE DPDT 5A 28V |
3667 | 199.31 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/2, FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
|
データテーブル |
|

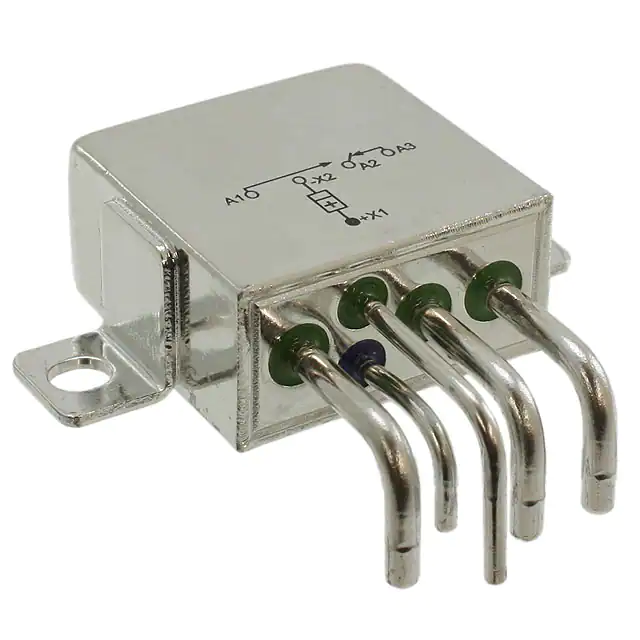

FCA-125-HX3RELAY GEN PURPOSE SPDT 25A 28V |
109 | 214.70 |
カートに追加今すぐ検索 |
Bulk | FCA, CII | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
データテーブル |
|

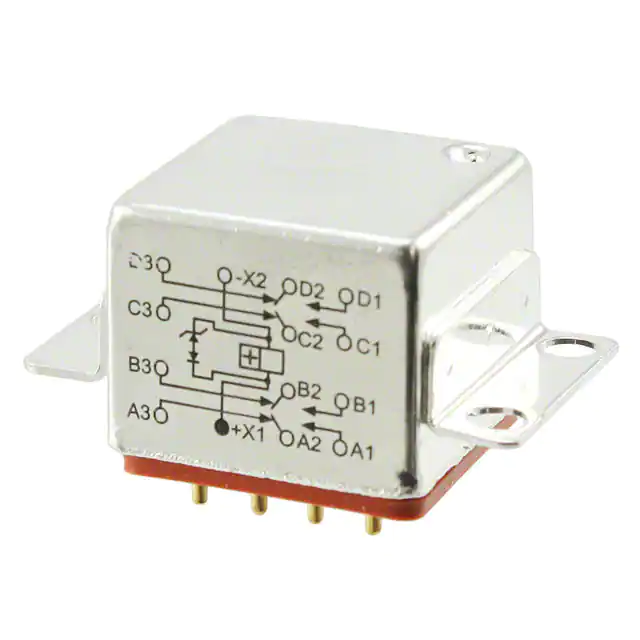

FCB-405-0622MRELAY GEN PURPOSE 4PDT 5A 28V |
2319 | 222.60 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/6, FCB, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - |
|
データテーブル |
|

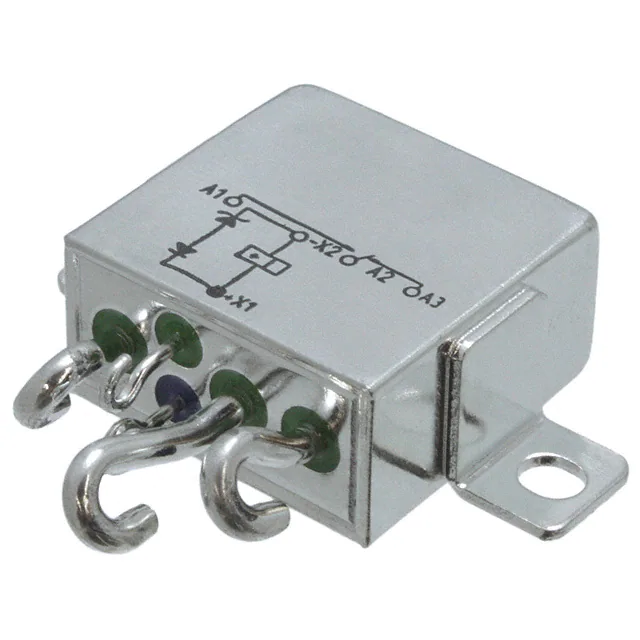

FCA-125-19RELAY GEN PURPOSE SPDT 25A 28V |
2632 | 226.81 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-6106/19, FCA, CII | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
