うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating ( Current ) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
9-1618239-1RELAY GEN PURPOSE SPST 25A 12V |
2365 | 567.96 |
カートに追加今すぐ検索 |
Box | K43, KILOVAC | Active | Panel Mount | 12VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - |
|
データテーブル |
|
FCAC-150-KR4RELAY GEN PURPOSE SPST 50A 28V |
2913 | 624.01 |
カートに追加今すぐ検索 |
Bulk | FCAC-150, CII | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | 115VAC, 28VDC - Max | - | Non Latching | - | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - |
| |
|
K81A235RELAY GEN PURPOSE SPST 5A 12V |
3657 | 381.77 |
カートに追加今すぐ検索 |
Bulk | K81, KILOVAC | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - |
| |
|

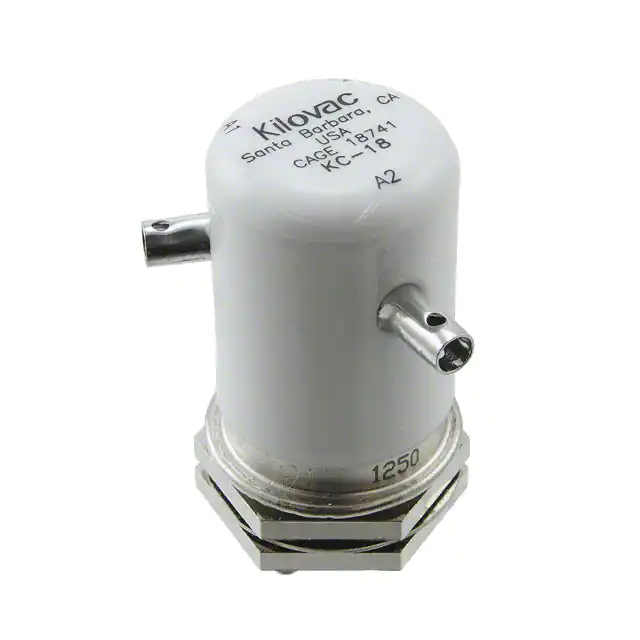

KC-18RELAY GEN PURPOSE 30A 26.5V |
2697 | 1055.83 |
カートに追加今すぐ検索 |
Bulk | KC-18, KILOVAC | Active | Panel Mount | 26.5VDC | - | 30 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | - | - | - | - | - | - |
|
データテーブル |
|

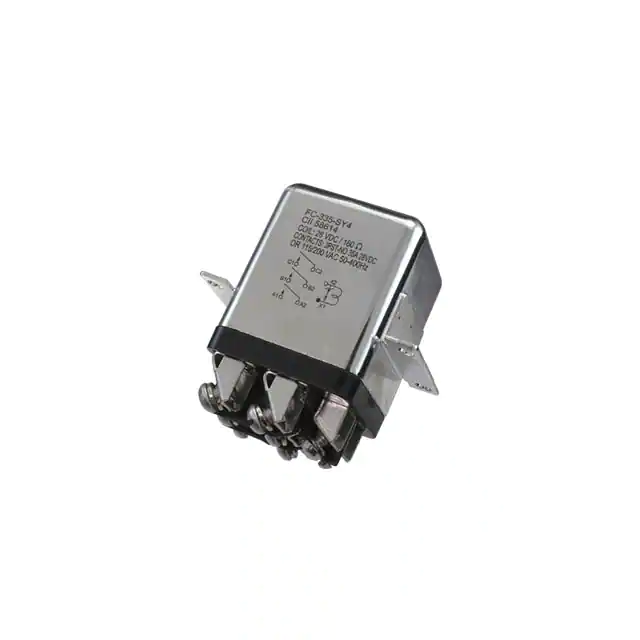

FC-335-SY4RELAY GEN PURPOSE 3PST 35A 28V |
3023 | 1124.21 |
カートに追加今すぐ検索 |
Bulk | FC-335, CII | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 35 A | 115VAC, 28VDC - Nom | - | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - |
| |
|
EV500-4BRELAY GEN PURPOSE SPST 750A 24V |
2393 | 3012.53 |
カートに追加今すぐ検索 |
Bulk | EV500, KILOVAC | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 750 A | 1800VDC - Max | - | Non Latching | - | Stud | Sealed - Hermetically | - | 19.7 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - |
|
データテーブル |
|

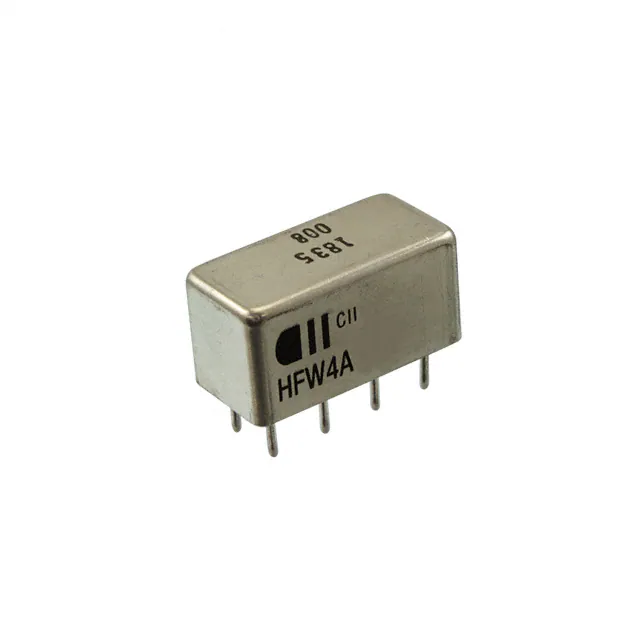

HFW4A1201D00RELAY GEN PURPOSE DPDT 4A 26.5V |
2619 | 189.25 |
カートに追加今すぐ検索 |
Bulk | FCB, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 4 A | 28VDC - Nom | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|
データテーブル |
|

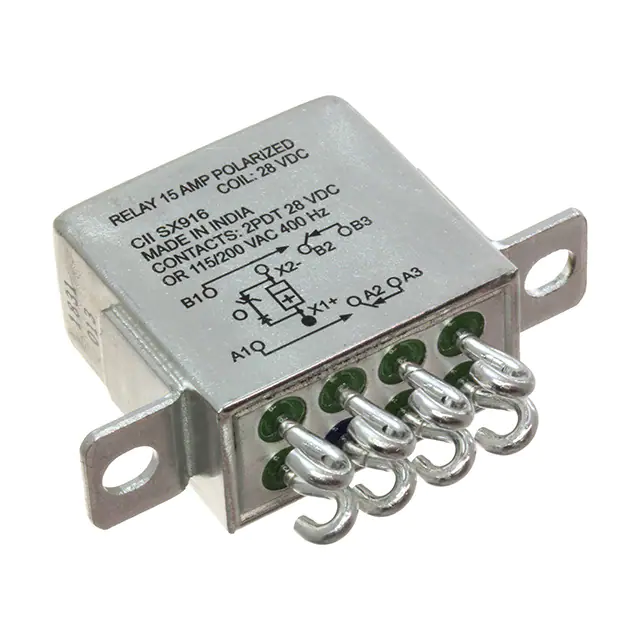

FCA-215-CY4RELAY DPDT 15A 28V |
2261 | 206.87 |
カートに追加今すぐ検索 |
Bulk | FCA-210 | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 15 A | - | - | Non Latching | - | Solder Hook | - | - | 18 VDC | 11.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | - |
|
データテーブル |
|

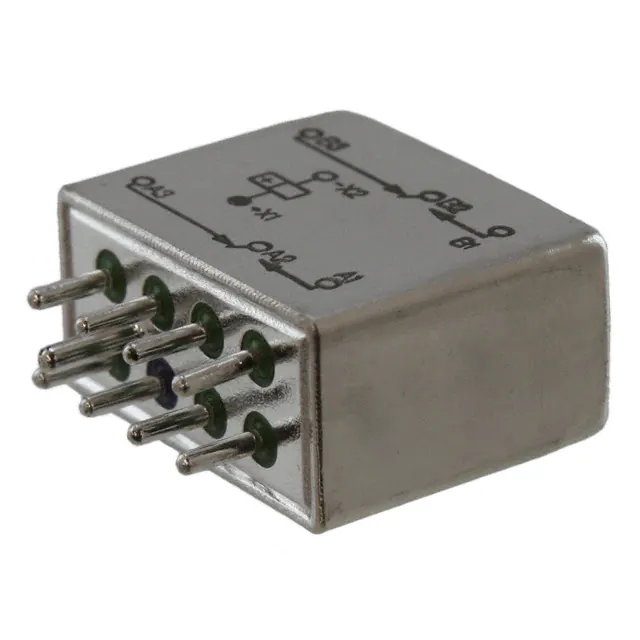

FCB-205-0119MRELAY GEN PURPOSE DPDT 5A 28V |
2656 | 191.78 |
カートに追加今すぐ検索 |
Bulk | Military, MIL-R-83536/1, FCB, CII | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
|
データテーブル |
|

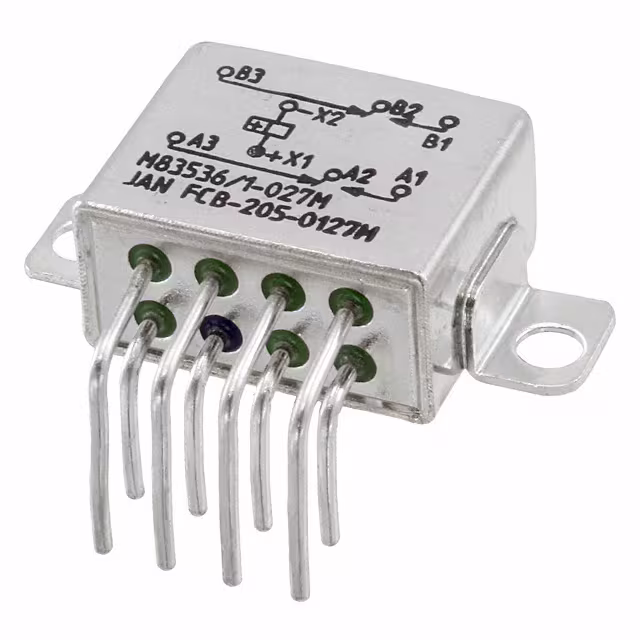

FCB-205-0127MRELAY GEN PURPOSE DPDT 5A 28V |
2190 | 191.78 |
カートに追加今すぐ検索 |
Bulk | FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
RFQ
