うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
26M048B1BSTEPPER MOTOR PM BIPOLAR 5V |
240 | 28.21 |
カートに追加今すぐ検索 |
Bulk | 26M | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 48 | 7.5° | ±15% | 1.5 / 10.6 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.8 Ohms |
|
データテーブル |
|
26M048B2USTEPPER MOTOR PM UNIPOLAR 12V |
2967 | 29.10 |
カートに追加今すぐ検索 |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 48 | 7.5° | ±15% | 1.3 / 9.2 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|
データテーブル |
|
35L048B2USTEPPER MOTOR PM UNIPOLAR 12V |
674 | 37.92 |
カートに追加今すぐ検索 |
Bulk | 35L | Active | Permanent Magnet | Unipolar | 12VDC | 190 mA | 48 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 64 Ohms |
|
データテーブル |
|
42M048C2B-R21STEP MOTOR PM GEARED BIPOLAR 12V |
127 | 61.05 |
カートに追加今すぐ検索 |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Bipolar | 12VDC | 550 mA | 480 | 0.75° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|
データテーブル |
|

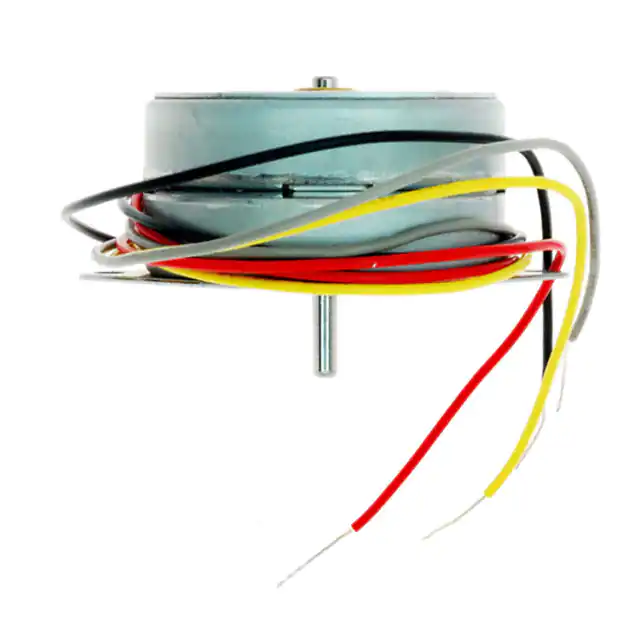

42M048C1BSTEPPER MOTOR PM BIPOLAR 5V |
239 | 32.13 |
カートに追加今すぐ検索 |
Bulk | 42M | Active | Permanent Magnet | Bipolar | 5VDC | 550 mA | 48 | 7.5° | ±15% | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|
データテーブル |
|

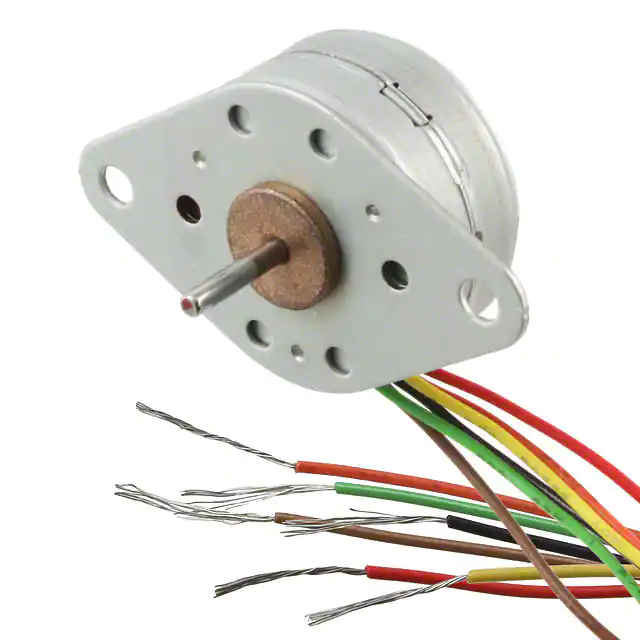

26M024B2USTEPPER MOTOR PM UNIPOLAR 12V |
129 | 27.82 |
カートに追加今すぐ検索 |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 24 | 15° | ±15% | 0.9 / 6.3 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|
データテーブル |
|

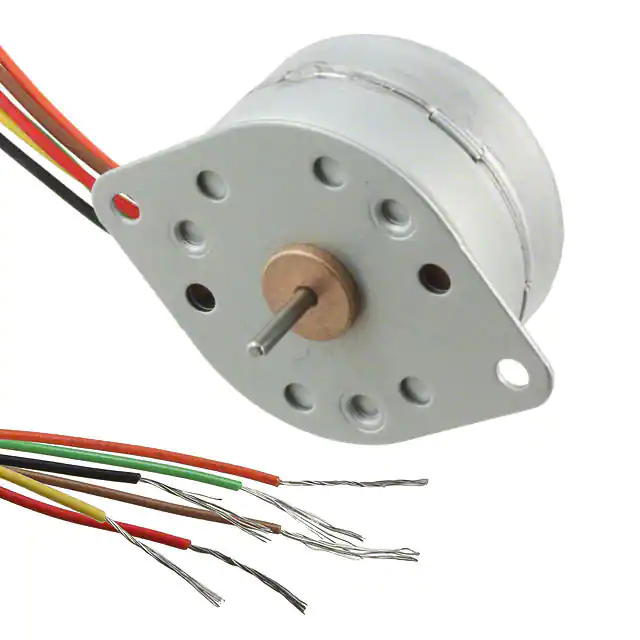

35L048B1USTEPPER MOTOR PM UNIPOLAR 5V |
194 | 29.64 |
カートに追加今すぐ検索 |
Bulk | 35L | Active | Permanent Magnet | Unipolar | 5VDC | 450 mA | 48 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 11 Ohms |
|
データテーブル |
|

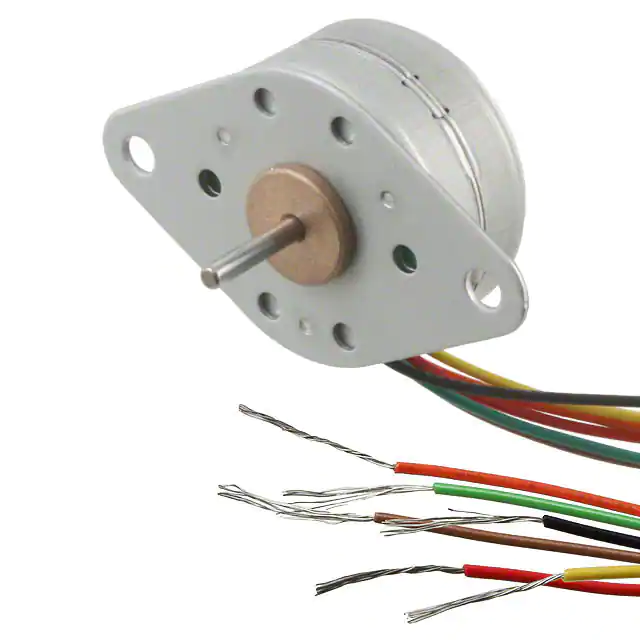

26M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
3349 | 29.10 |
カートに追加今すぐ検索 |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 5VDC | 260 mA | 24 | 15° | ±15% | 1.35 / 9.5 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.6 Ohms |
|
データテーブル |
|
20M020D1USTEPPER MOTOR PM UNIPOLAR 5V |
2276 | 29.10 |
カートに追加今すぐ検索 |
Bulk | 20M | Active | Permanent Magnet | Unipolar | 5VDC | 100 mA | 20 | 18° | ±12% | 1.1 / 7.77 | Round - 0.807 Dia (20.50mm) | - | 0.059 (1.50mm) | 0.335 (8.50mm) | 0.984 (25.00mm) | Wire Leads | -20°C ~ 70°C | 115.2 Ohms |
|
データテーブル |
|
42M048C2USTEPPER MOTOR PM UNIPOLAR 12V |
2545 | 31.99 |
カートに追加今すぐ検索 |
Bulk | 42M | Active | Permanent Magnet | Unipolar | 12VDC | 230 mA | 48 | 7.5° | ±6.66% | 9.4 / 66.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 52.4 Ohms |
