うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

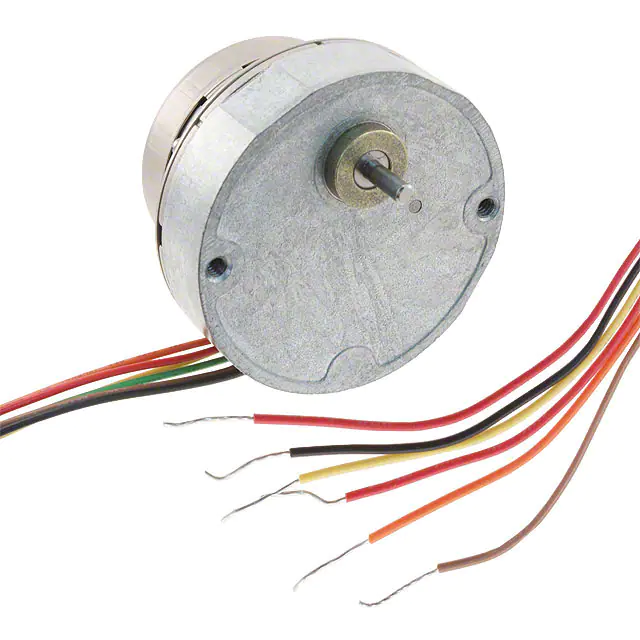

42M048C2U-R21STEPPER MOTOR PM GEARED UNI 12V |
3509 | 53.36 |
カートに追加今すぐ検索 |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 230 mA | 480 | 0.75° | - | 9.4 / 66.2 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 52.4 Ohms |
|
データテーブル |
|

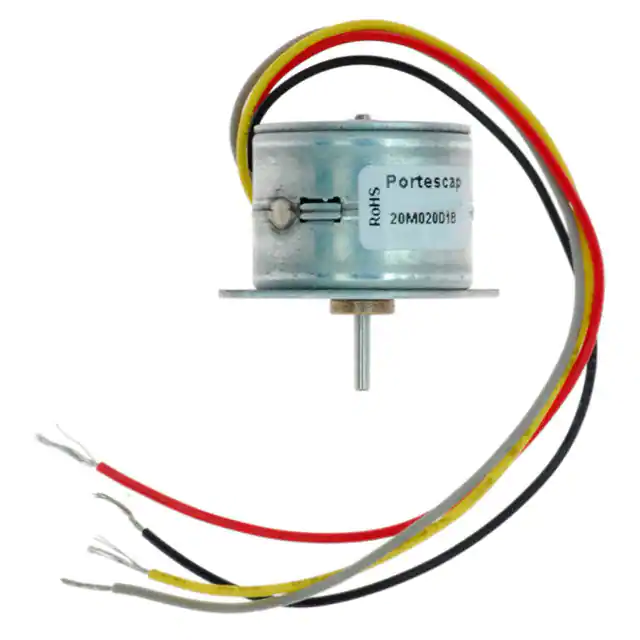

20M020D1BSTEPPER MOTOR PM BIPOLAR 5V |
2340 | 27.84 |
カートに追加今すぐ検索 |
Bulk | 20M | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 20 | 18° | ±12% | 1.55 / 10.95 | Round - 0.807 Dia (20.50mm) | - | 0.059 (1.50mm) | 0.335 (8.50mm) | 0.984 (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms |
|
データテーブル |
|

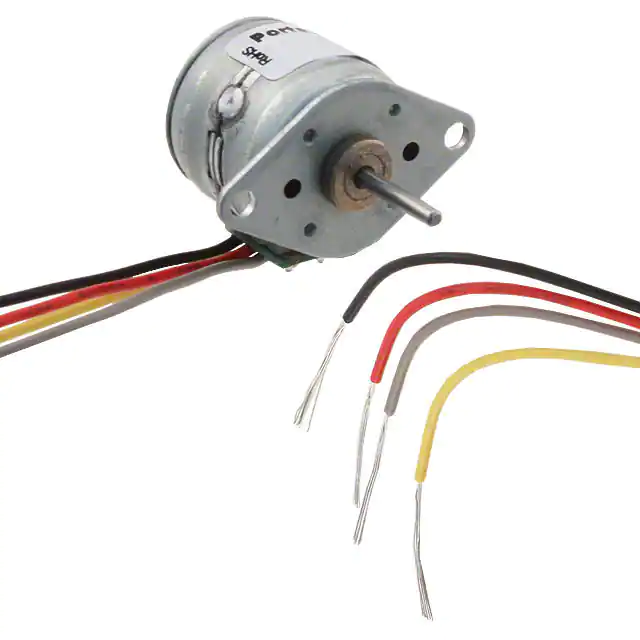

15M020D1B-NSTEPPER MOTOR PM BIPOLAR 5V |
3634 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 15M | Active | Permanent Magnet | Bipolar | 5VDC | 125 mA | 20 | 18° | - | 0.55 / 3.9 | Round - 0.610 Dia (15.50mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.787 (20.00mm) | Wire Leads | -20°C ~ 70°C | 40 Ohms |
|
データテーブル |
|

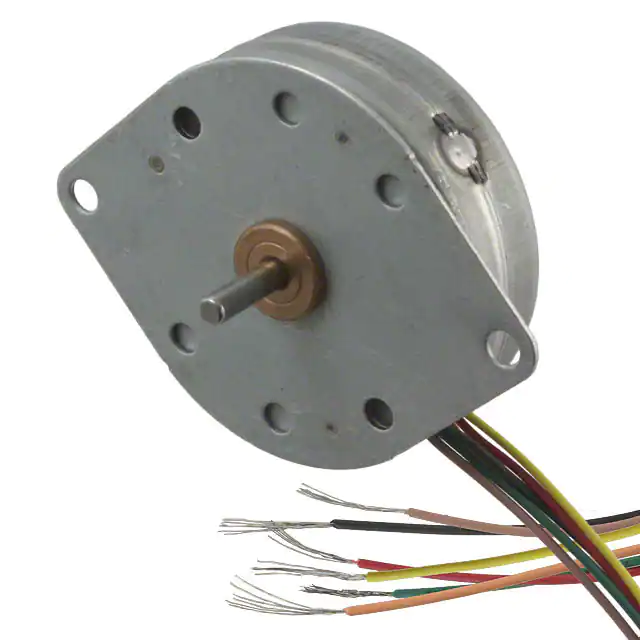

42S048D2USTEPPER MOTOR PM UNIPOLAR 12V |
2270 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 42S | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 48 | 7.5° | ±15% | 6.3 / 44.5 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms |
|
データテーブル |
|

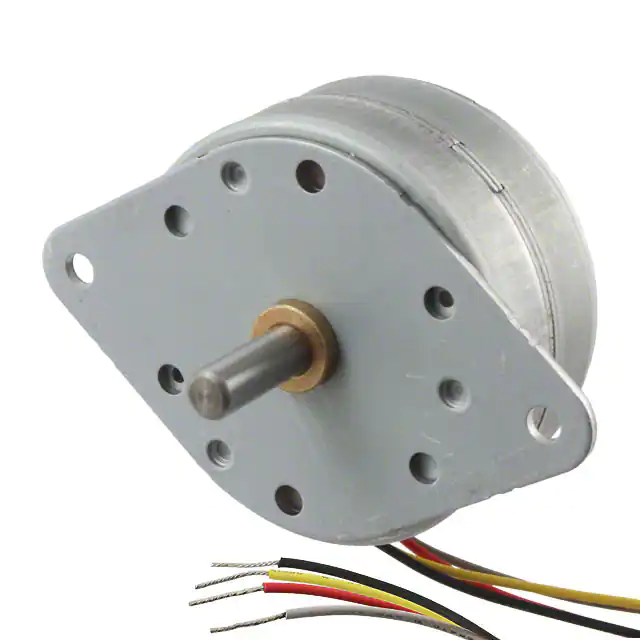

55M048D1BSTEPPER MOTOR PM BIPOLAR 5V |
2445 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 55M | Obsolete | Permanent Magnet | Bipolar | 5VDC | 960 mA | 48 | 7.5° | ±15% | 27.6 / 195 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms |
|
データテーブル |
|

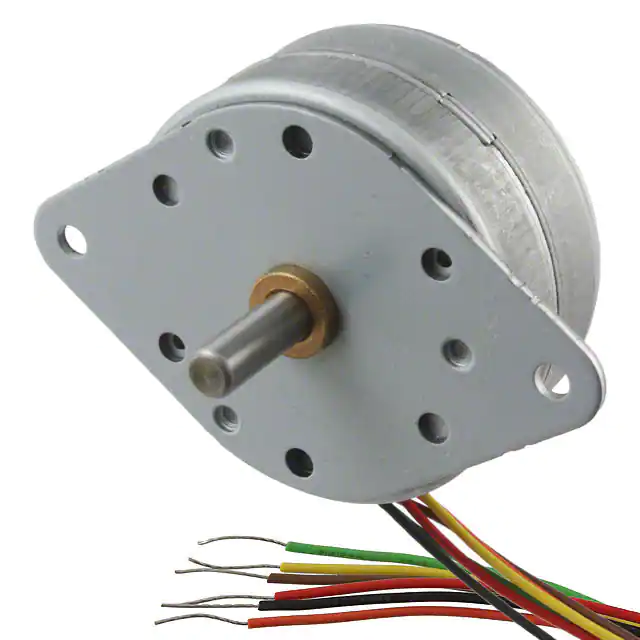

55M048D2USTEPPER MOTOR PM UNIPOLAR 12V |
3419 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 55M | Obsolete | Permanent Magnet | Unipolar | 12VDC | 400 mA | 48 | 7.5° | ±15% | 23 / 163 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 30 Ohms |
|
データテーブル |
|
20M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
3758 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 20M | Active | Permanent Magnet | Unipolar | 5VDC | 250 mA | 24 | 15° | ±15% | 1.1 / 7.77 | Round - 0.807 Dia (20.50mm) | - | 0.059 (1.50mm) | 0.335 (8.50mm) | 0.984 (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms |
|
データテーブル |
|

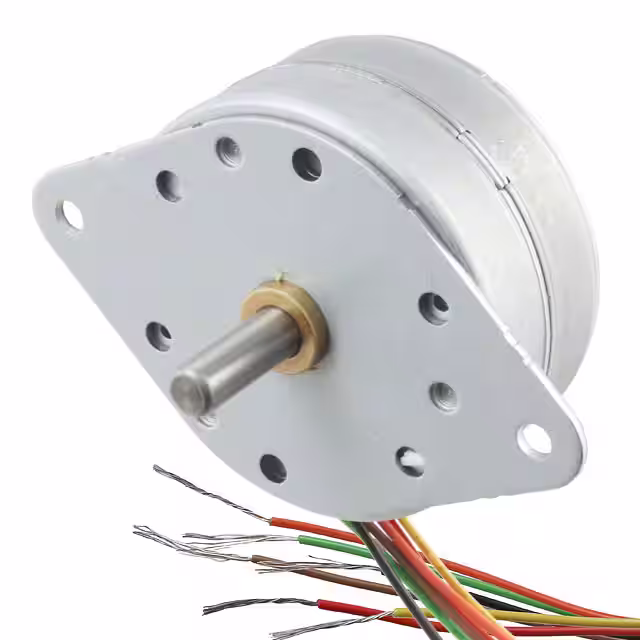

55M048D1USTEPPER MOTOR PM UNIPOLAR 5V |
2534 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 55M | Obsolete | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48 | 7.5° | ±15% | 23 / 163 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms |
|
データテーブル |
|

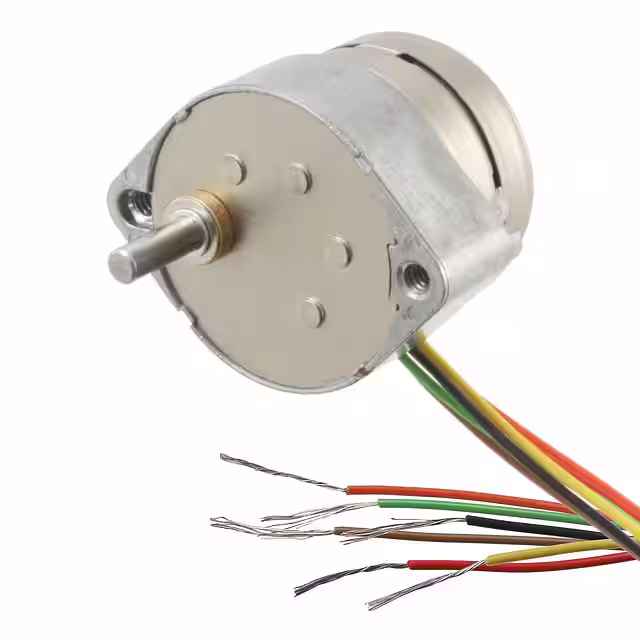

26M048B2U-V31STEPPER MOTOR PM GEARED UNI 12V |
3395 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 26M-V | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 110 mA | 1440 | 0.25° | - | 1.3 / 9.2 | Round - 1.030 Dia (26.16mm) | - | 0.125 (3.18mm) | 0.432 (10.97mm) | 1.180 (29.87mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|
データテーブル |
|

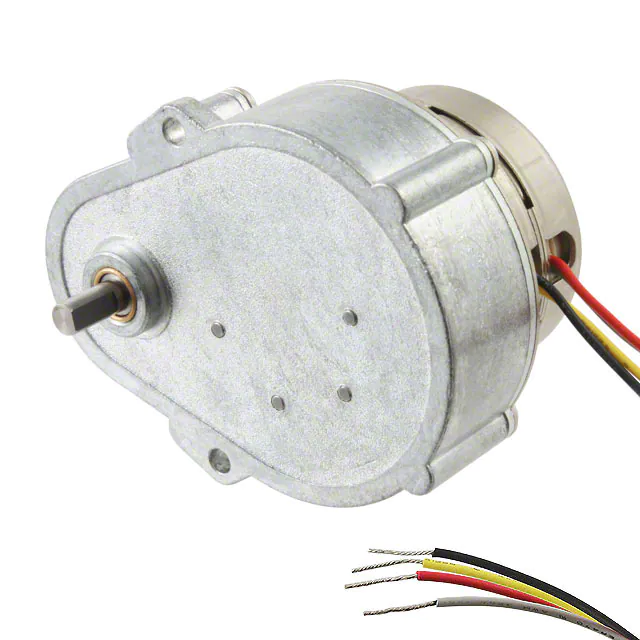

42M048C1B-Z36STEP MOTOR PM GEARED BIPOLAR 5V |
3375 | 0.00 |
カートに追加今すぐ検索 |
Bulk | 42M-Z | Obsolete | Permanent Magnet Gear Motor | Bipolar | 5VDC | 550 mA | 2400 | 0.15° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.188 (4.77mm) | 0.500 (12.70mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
