うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

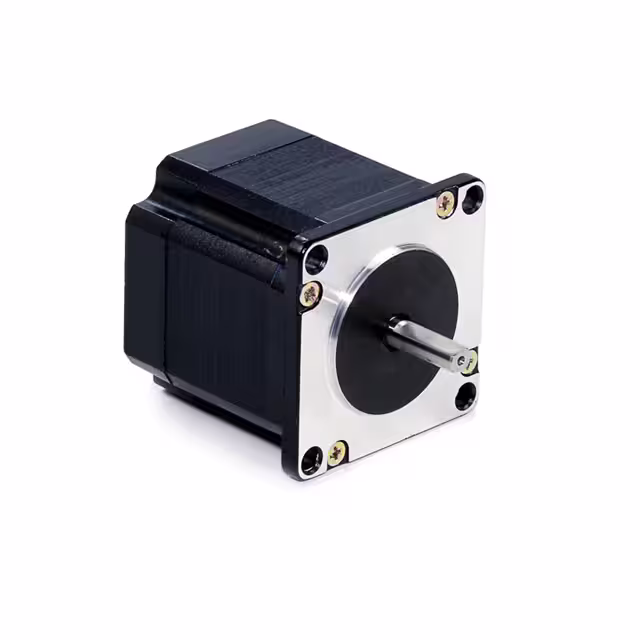

WO-5718X-01SSTEPPER MOTOR |
2307 | 62.91 |
カートに追加今すぐ検索 |
Tray | 5718 | Active | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.795 (20.20mm) | 1.860 (47.24mm) | Wire Leads | - | 2.8 Ohms |
|
データテーブル |
|

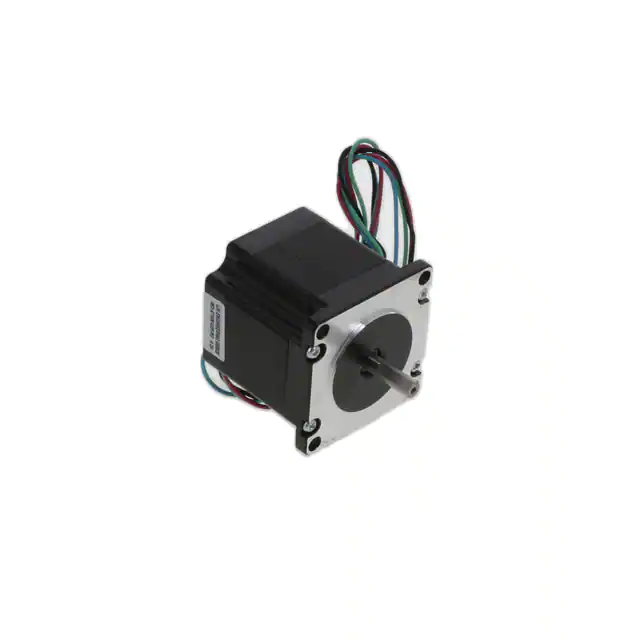

WO-5718M-02P-ROSTEPPER MOTOR |
2917 | 72.80 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | Bipolar | 24VDC | 4.2 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.5 Ohms |
|
データテーブル |
|

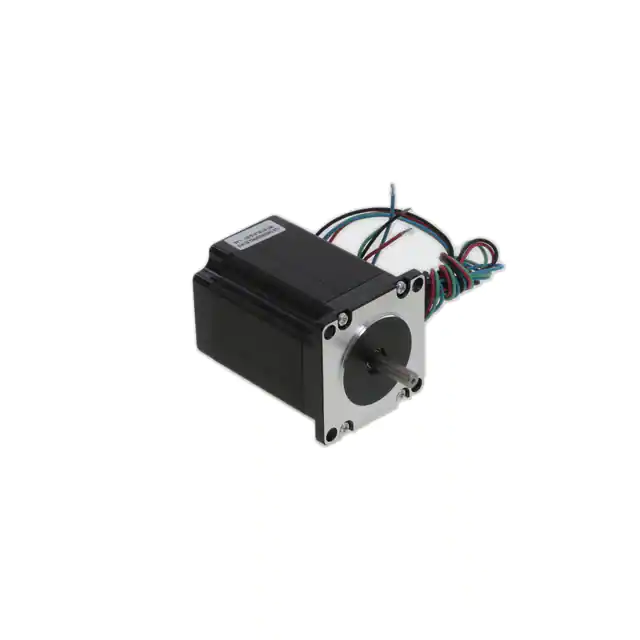

WO-5718L-01S-ROSTEPPER MOTOR |
2234 | 77.68 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 294 / 2076 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms |
|
データテーブル |
|
PM20S-180-033PERMANENT MAGNET STEPPER MOTOR |
2394 | 21.41 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.33 A | 20 | 18° | - | 1.18 / 8.34 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 10.3 Ohms |
|
データテーブル |
|
PM25S-075-032PERMANENT MAGNET STEPPER MOTOR |
2840 | 21.83 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.32 A | 48 | 7.5° | - | 2.2 / 15.7 | Round - 0.492 Dia (12.50mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 16 Ohms |
|
データテーブル |
|
PM42S-075-015PERMANENT MAGNET STEPPER MOTOR |
2002 | 25.66 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 0.15 A | 48 | 7.5° | - | 8.89 / 62.77 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | -20°C ~ 50°C | 80 Ohms |
|
データテーブル |
|
WO-3709V-18STEPPER MOTOR |
3597 | 37.05 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 16 / 113 | Square - 1.440 L x 1.440 W (36.58mm x 36.58mm) | 14 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
データテーブル |
|
WO-4209S-01PSTEPPER MOTOR |
3582 | 37.56 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 1.33 A | 400 | 0.9° | - | 31 / 219 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 2.4 Ohms |
|
データテーブル |
|
WO-4109Y-51STEPPER MOTOR |
3436 | 39.56 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 6 / 42.37 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms |
|
データテーブル |
|
WO-4109Z-51STEPPER MOTOR |
2459 | 39.58 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 500 mA | 400 | 0.9° | - | 3 / 21.19 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 4.1 Ohms |
