うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

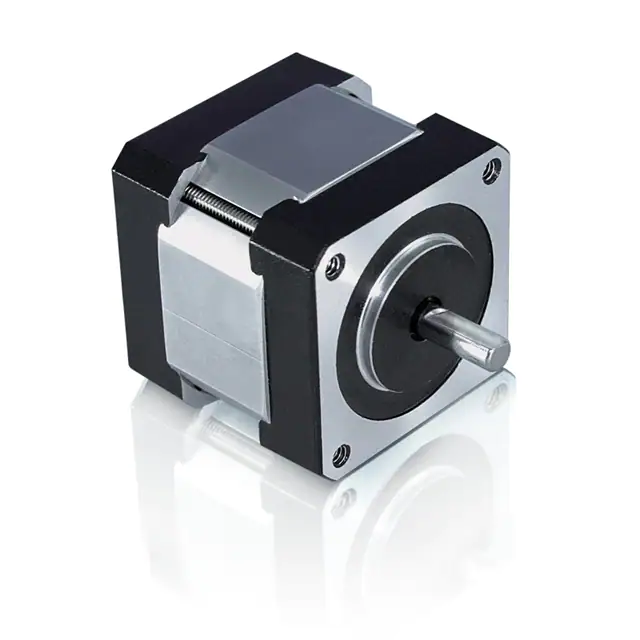

WO-417-09-03STEPPER MOTOR |
2669 | 40.49 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 1.2 A | 400 | 0.9° | - | 12 / 84.74 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms |
|
データテーブル |
|

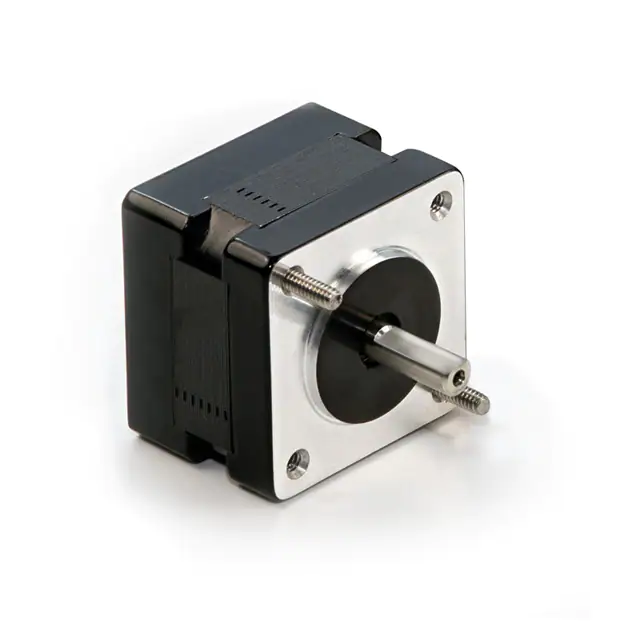

WO-3518X-08STEPPER MOTOR |
3731 | 44.83 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 350 mA | 200 | 1.8° | - | 7.5 / 52.96 | Square - 1.390 x 1.390 (35.30mm x 35.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.023 (26.00mm) | Wire Leads | -20°C ~ 50°C | 8.5 Ohms |
|
データテーブル |
|
WO-4418F-01STEPPER MOTOR |
3760 | 45.97 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 670 mA | 200 | 1.8° | - | 27 / 190.7 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 7.6 Ohms |
|
データテーブル |
|

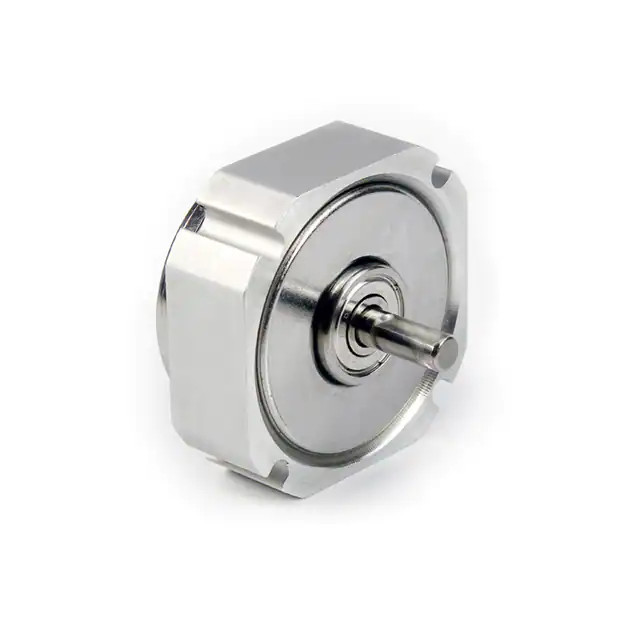

WO-4109R-05STEPPER MOTOR |
3036 | 45.97 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 800 mA | 400 | 0.9° | - | 22 / 155.4 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.5 Ohms |
|
データテーブル |
|
WO-4418S-01STEPPER MOTOR |
3927 | 47.98 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 1.7 A | 200 | 1.8° | - | 61 / 431 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.6 Ohms |
|
データテーブル |
|
WO-211-20-02-ROSTEPPER MOTOR |
3032 | 49.21 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 1.3 A | 200 | 1.8° | - | 16.6 / 117.22 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 1.9 Ohms |
|
データテーブル |
|

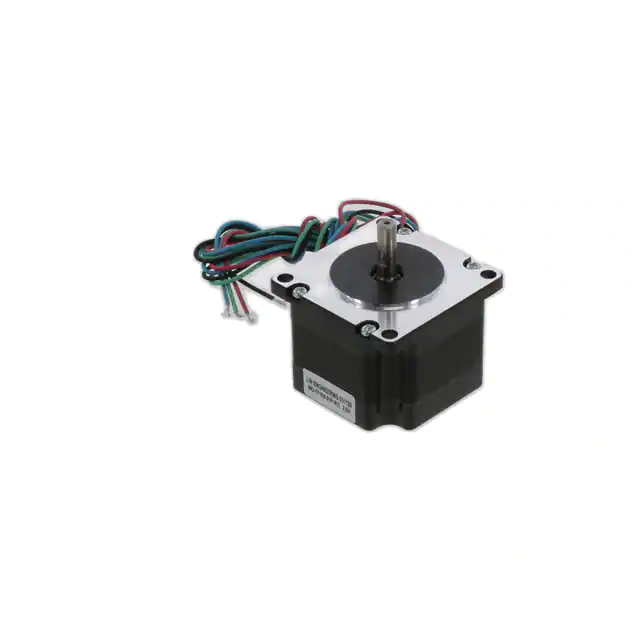

WO-5718X-01P-ROSTEPPER MOTOR |
3161 | 62.91 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms |
|
データテーブル |
|
WO-5718M-02S-ROSTEPPER MOTOR |
3024 | 72.80 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | Bipolar | 24VDC | 2.1 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms |
|
データテーブル |
|
PM20S-180-021PERMANENT MAGNET STEPPER MOTOR |
3893 | 21.41 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.21 A | 20 | 18° | - | 1.18 / 8.34 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 25 Ohms |
|
データテーブル |
|
PM20L-180-043PERMANENT MAGNET STEPPER MOTOR |
3848 | 21.83 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.43 A | 20 | 18° | - | 1.7 / 11.8 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 7 Ohms |
RFQ
