うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|
PM25S-075-050PERMANENT MAGNET STEPPER MOTOR |
2192 | 21.83 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.5 A | 48 | 7.5° | - | 2.2 / 15.7 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 6 Ohms |
|
データテーブル |
|
PM35S-075-015PERMANENT MAGNET STEPPER MOTOR |
2675 | 24.66 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 0.15 A | 48 | 7.5° | - | 6.4 / 45.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 80 Ohms |
|
データテーブル |
|
WO-417-09-18STEPPER MOTOR |
3985 | 40.49 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 12 / 84.74 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
データテーブル |
|
WO-4109R-08STEPPER MOTOR |
3262 | 45.97 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 22 / 155.4 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 11.6 Ohms |
|
データテーブル |
|
WO-4209M-01SSTEPPER MOTOR |
2551 | 50.28 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 840 mA | 400 | 0.9° | - | 51 / 360 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.1 Ohms |
|
データテーブル |
|

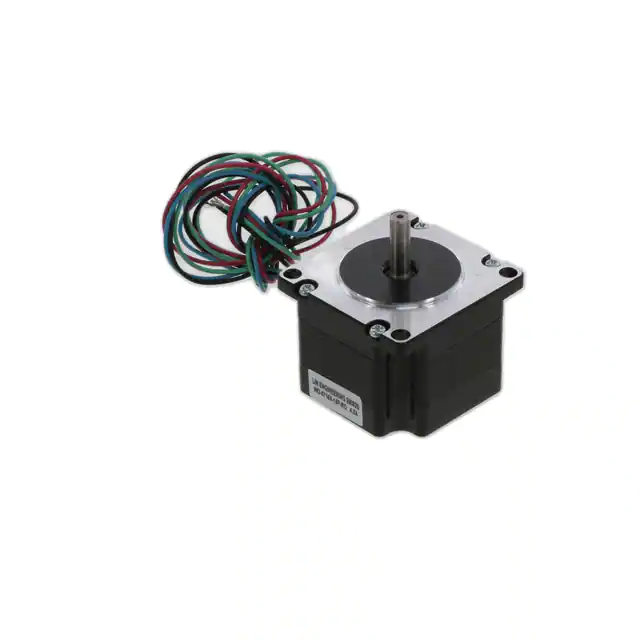

WO-5718X-15S-ROSTEPPER MOTOR |
2186 | 65.77 |
カートに追加今すぐ検索 |
Bulk | - | Active | - | Bipolar | 24VDC | 2.1 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|
データテーブル |
|
PM20L-180-025PERMANENT MAGNET STEPPER MOTOR |
3909 | 21.83 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 12VDC | 0.25 A | 20 | 18° | - | 1.7 / 11.8 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 21.5 Ohms |
|
データテーブル |
|
PM25L-075-035PERMANENT MAGNET STEPPER MOTOR |
2532 | 21.83 |
カートに追加今すぐ検索 |
Tray | PM | Active | - | Bipolar | 12VDC | 0.35 A | 48 | 7.5° | - | 3.7 / 26 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 14 Ohms |
|
データテーブル |
|
PM35S-075-060PERMANENT MAGNET STEPPER MOTOR |
3574 | 24.66 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 5 Ohms | 48 | 7.5° | - | 6.80 / 48 | Round - 1.378 Dia (35.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 5 Ohms |
|
データテーブル |
|
PM35S-075-038PERMANENT MAGNET STEPPER MOTOR |
3725 | 24.66 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 0.38 A | 48 | 7.5° | - | 6.4 / 45.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 12 Ohms |
