うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

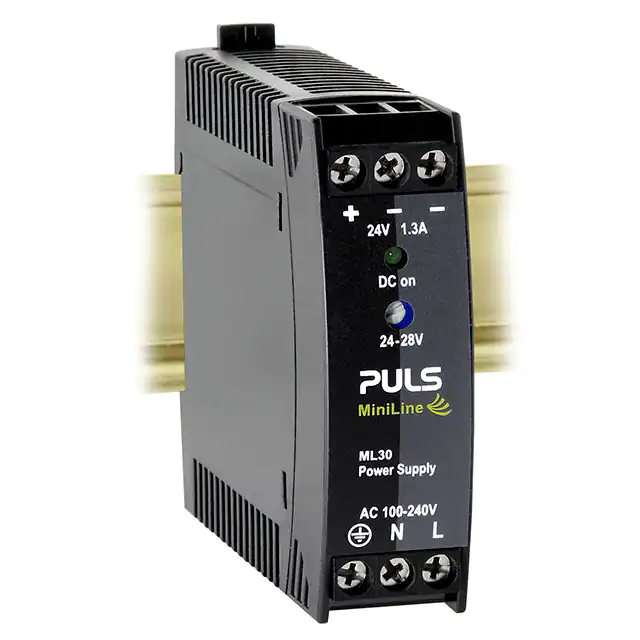

ML30.241AC/DC CONVERTER 24V 30W |
3528 | 99.00 |
カートに追加今すぐ検索 |
Box | MiniLine-2 (30W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 500 V | ITE (Commercial) | 89.4% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL |
|
データテーブル |
|

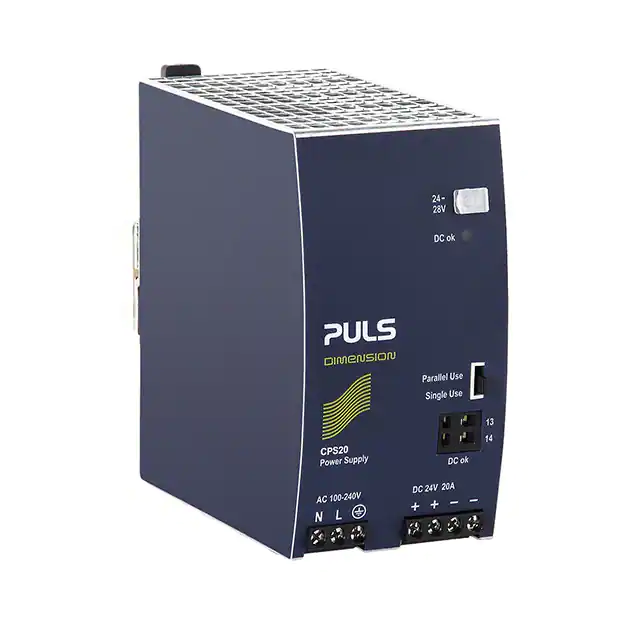

CPS20.241AC/DC CONVERTER 24V 480W |
2464 | 481.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (480W) | Active | AC | 1 | 100 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

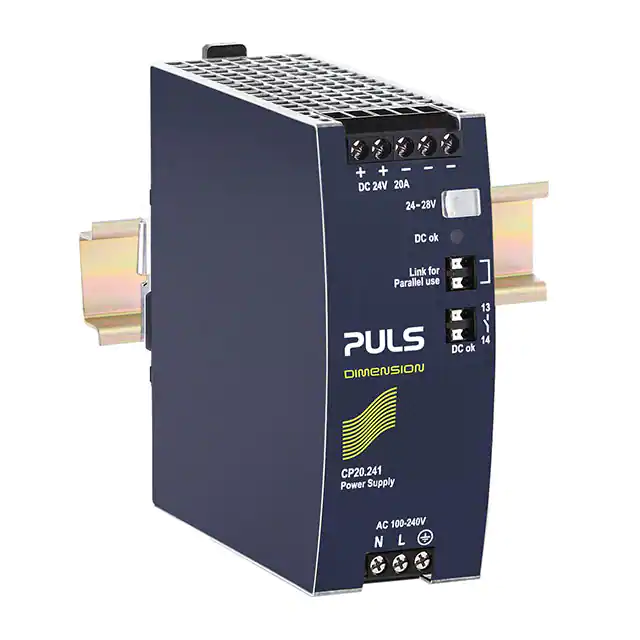

CP20.241AC/DC CONVERTER 24V 480W |
3738 | 436.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
|
データテーブル |
|

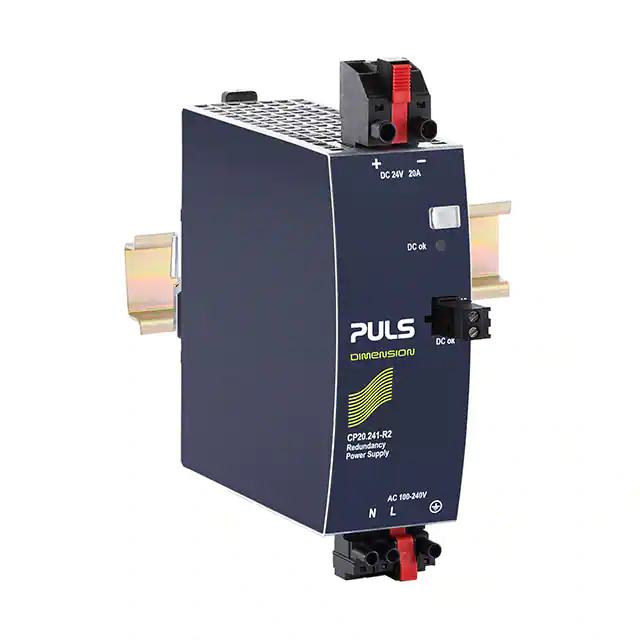

CP20.241-R2AC/DC CONVERTER 24V 480W |
3295 | 562.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
|
データテーブル |
|

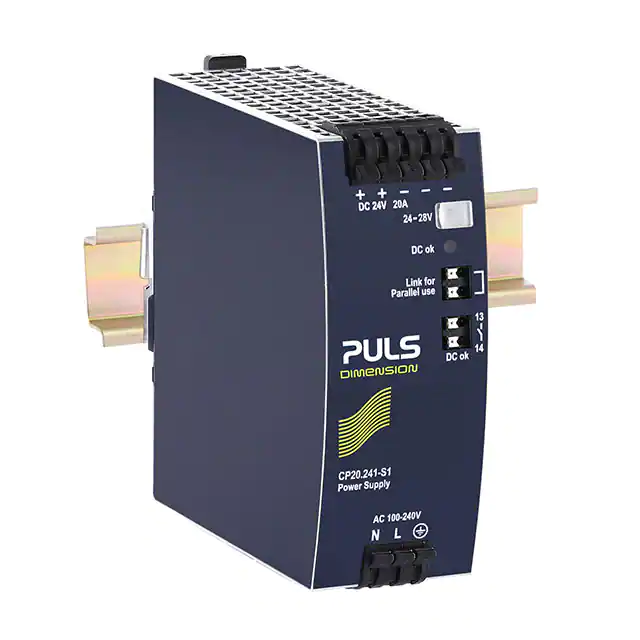

CP20.241-S1AC/DC CONVERTER 24V 480W |
2022 | 463.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
|
データテーブル |
|

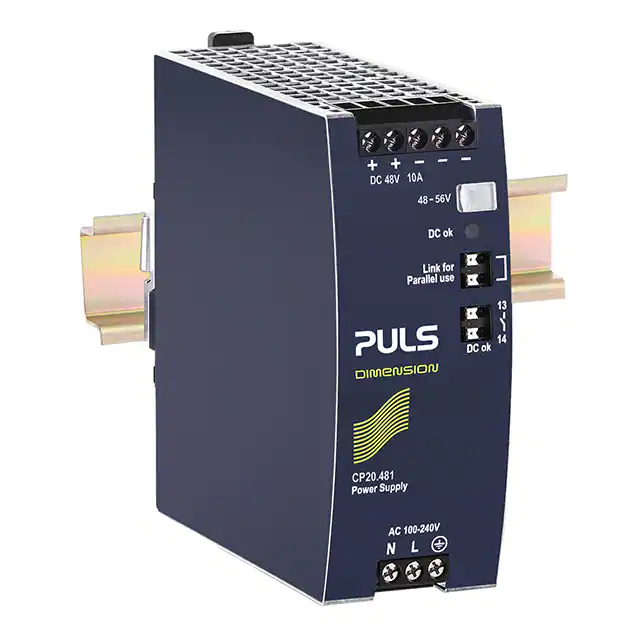

CP20.481AC/DC CONVERTER 48V 480W |
3264 | 468.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 48V | - | - | - | - | - | 10A | 480W | 500 V | ITE (Commercial), Laboratory | 96.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
|
データテーブル |
|
CP5.241-S1POWER SUPPLY, 120W, 1PH, 24-28VD |
2435 | 256.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (120W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ATEX, IEC, IECEx, UL |
| |
|
CP5.121POWER SUPPLY, 120W, 1PH, 12VDC |
2383 | 0.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (120W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 12V | - | - | - | - | - | 10A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.2% | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) |
| |
|

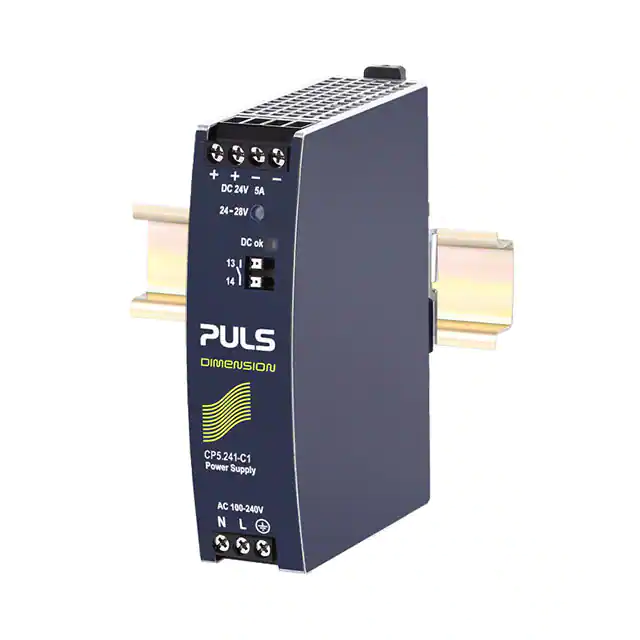

CP5.241-C1POWER SUPPLY, 120W, 1PH, 24-28VD |
2611 | 279.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (120W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ATEX, IEC, IECEx, UL |
| |
|

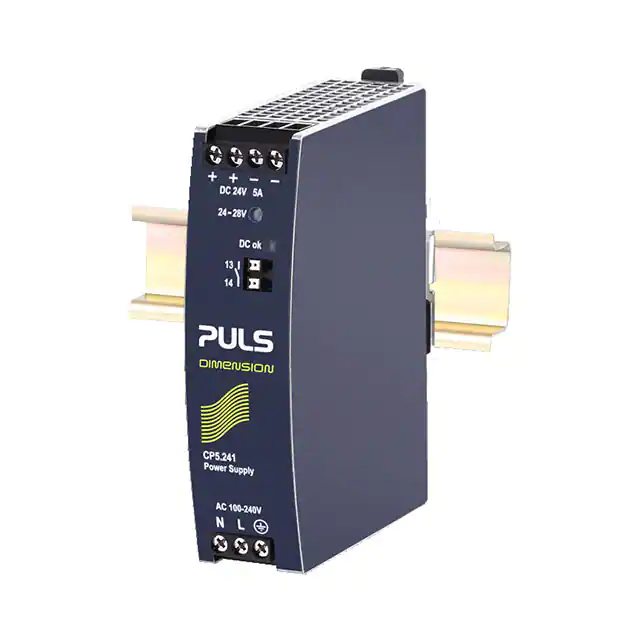

CP5.241POWER SUPPLY, 120W, 100-240VAC 1 |
3906 | 211.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (120W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
