うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|

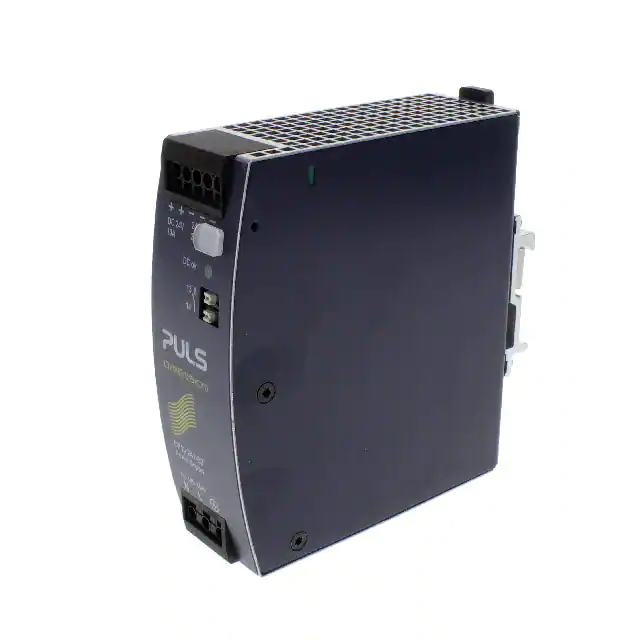

CP10.241-S2POWER SUPPLY, 240W, 100-240VAC 1 |
3698 | 315.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Industrial, ITE (Commercial) | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
|
データテーブル |
|

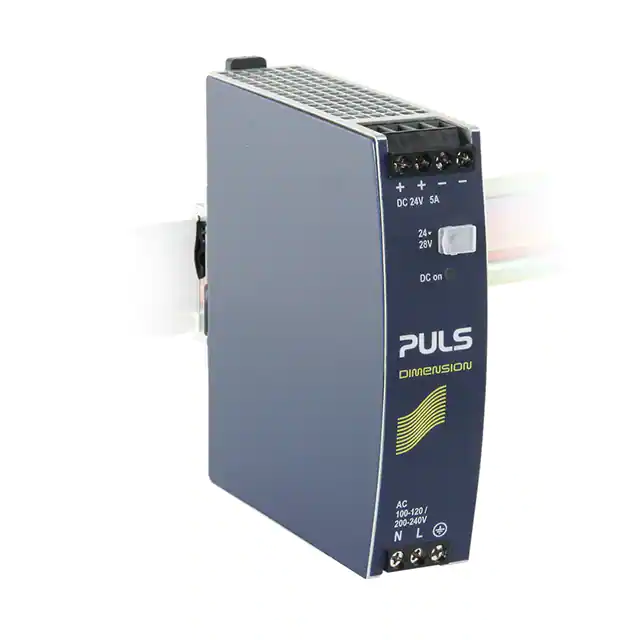

CS5.241-C1AC/DC CONVERTER 24V 120W |
2769 | 292.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (120W) | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing | 4.61 L x 1.26 W x 4.88 H (117.0mm x 32.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

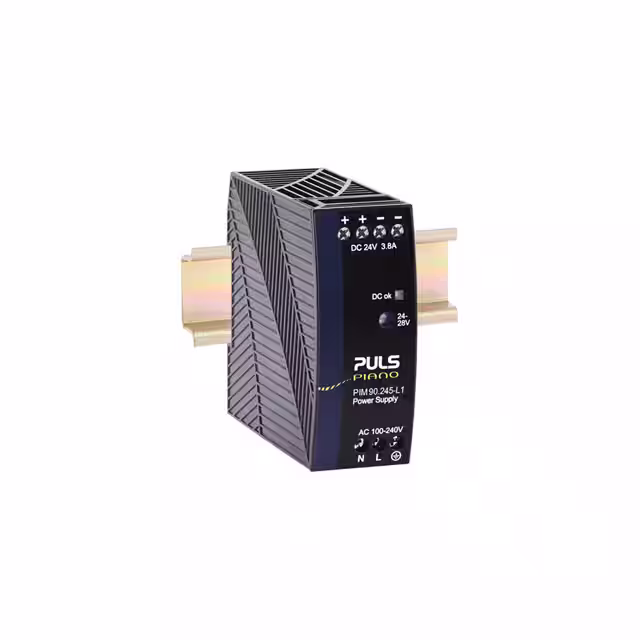

PIM90.245-L1AC/DC CONVERTER 24V 91W |
2753 | 139.50 |
カートに追加今すぐ検索 |
Box | PIANO (90W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | - | ITE (Commercial), Laboratory | 93.8% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.58 L x 1.42 W x 3.54 H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus |
|
データテーブル |
|
CT10.481AC/DC CONVERTER 48V 240W |
3459 | 463.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (240W) | Active | AC | 1 | 380 ~ 480 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 2.44 W x 4.88 H (117.0mm x 62.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

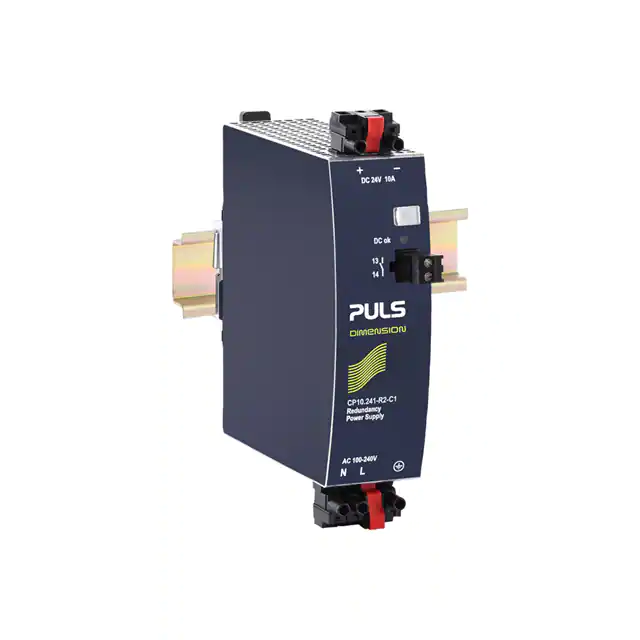

CP10.241-R2-C1AC/DC CONVERTER 24V 240W |
3241 | 463.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | CB, CE, cULus, EAC, UL |
|
データテーブル |
|

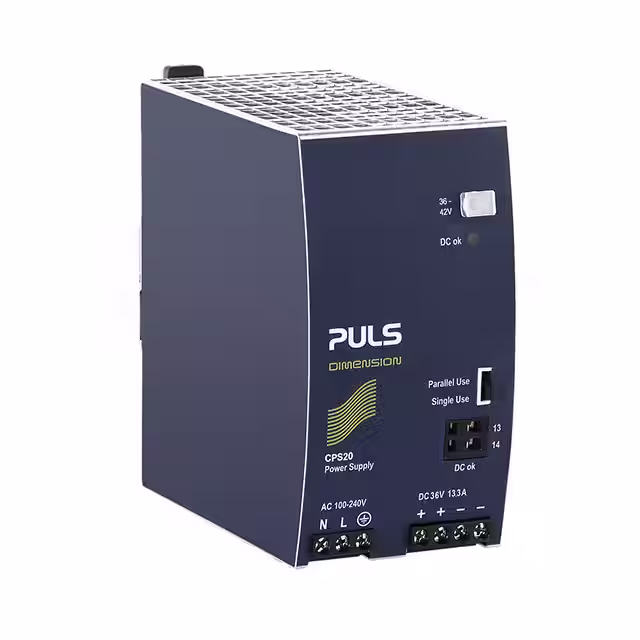

CPS20.361AC/DC CONVERTER 36V 480W |
2989 | 562.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (480W) | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|
CPS20.481-D1DC/DC CONVERTER 48V 480W |
2218 | 616.50 |
カートに追加今すぐ検索 |
Bulk | DIMENSION C (480W) | Active | DC | 1 | - | 88V | 360V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 92.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ATEX, CSA, EAC, IEC, IECEx, UL |
|
データテーブル |
|

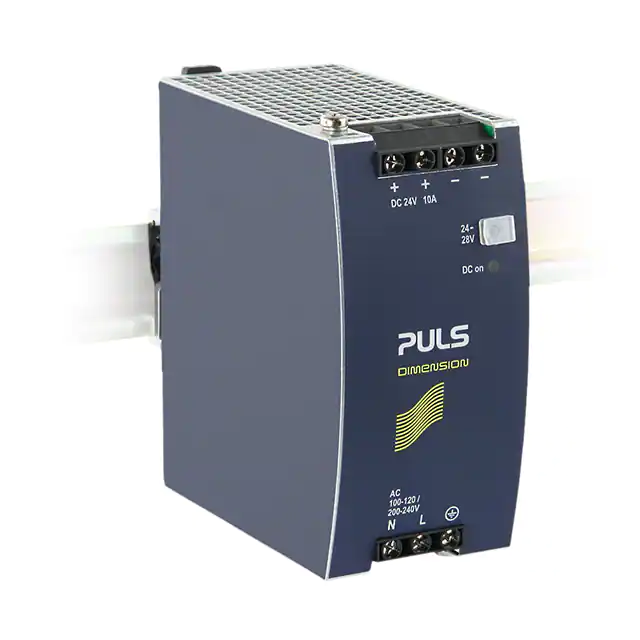

CS10.242AC/DC CONVERTER 24V 240W |
2123 | 369.00 |
カートに追加今すぐ検索 |
Box | DIMENSION C (240W) | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61 L x 2.36 W x 4.88 H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

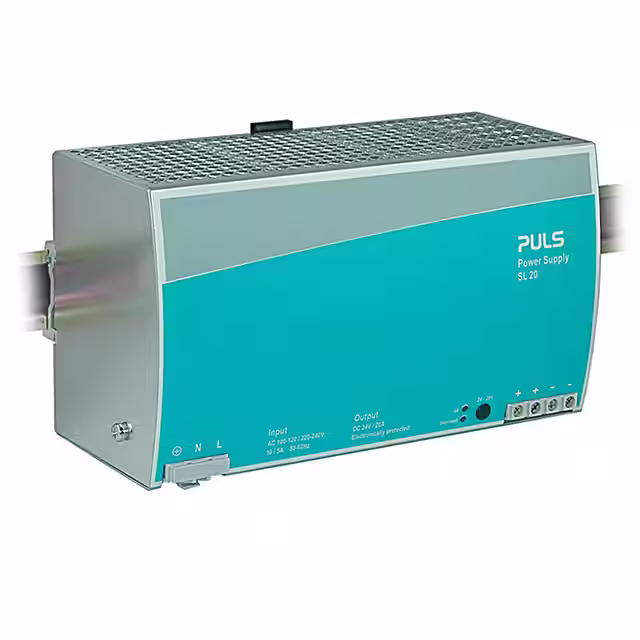

SL20.111AC/DC CONVERTER 24V 480W |
3960 | 0.00 |
カートに追加今すぐ検索 |
Box | SilverLine (480W) | Obsolete | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 90.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.02 L x 8.66 W x 4.88 H (102.0mm x 220.0mm x 124.0mm) | CB, CE, cULus, cURus |
|
データテーブル |
|

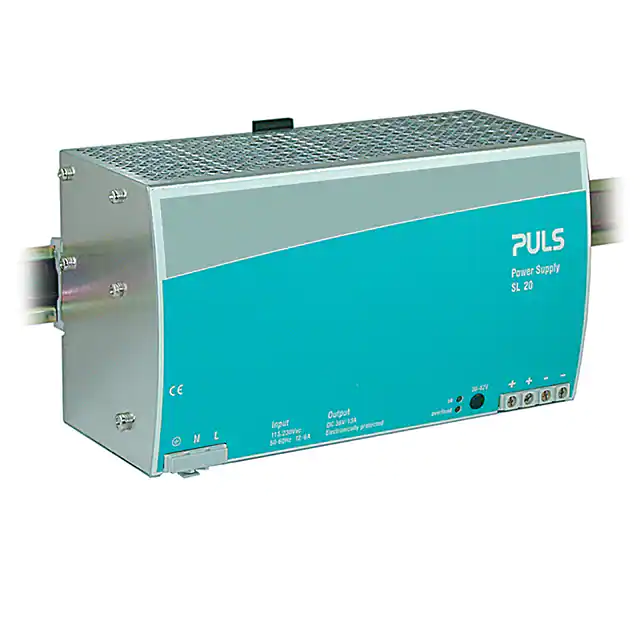

SL20.112AC/DC CONVERTER 36V 480W |
3432 | 0.00 |
カートに追加今すぐ検索 |
Box | SilverLine (480W) | Obsolete | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | - | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.02 L x 8.66 W x 4.88 H (102.0mm x 220.0mm x 124.0mm) | CB, CE, cULus, cURus |
