うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

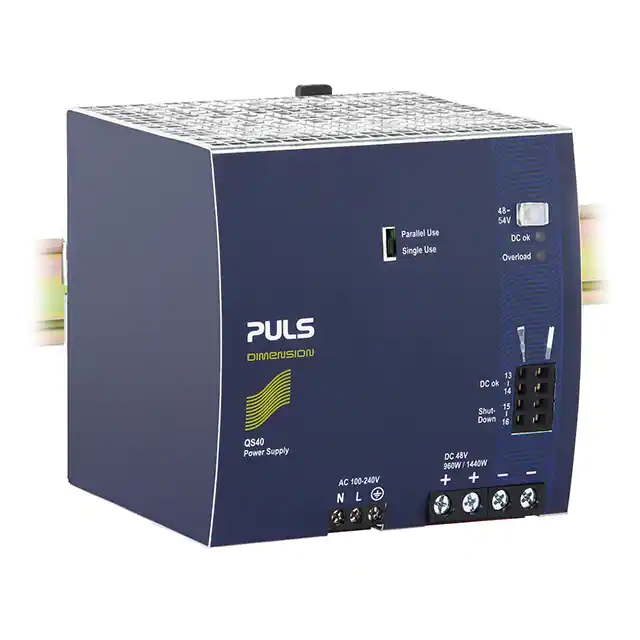

QS40.481AC/DC CONVERTER 48V 960W |
2367 | 1080.00 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (960W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 4.88 W x 4.88 H (127.0mm x 124.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

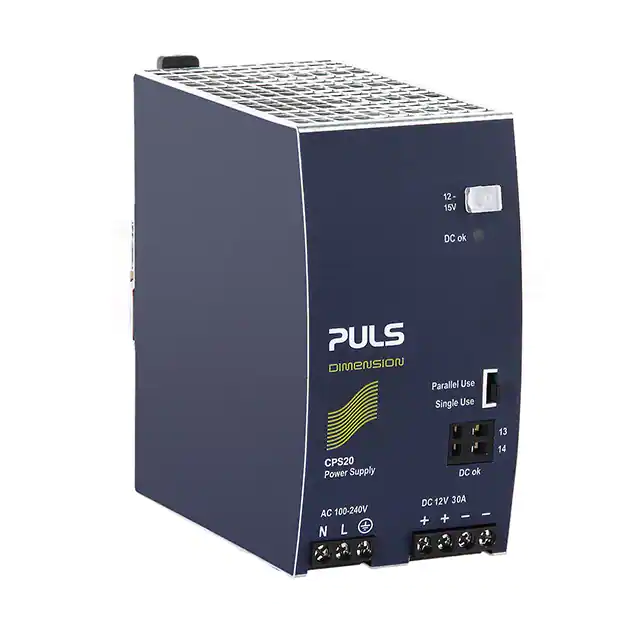

CPS20.121AC/DC CONVERTER 12V 360W |
3738 | 562.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (405W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 30A | 360W | 3 kV | Hazardous Locations, ITE (Commercial) | 92.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|
QT20.241AC/DC CONVERTER 24V 480W |
3590 | 589.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (480W) | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL |
|
データテーブル |
|

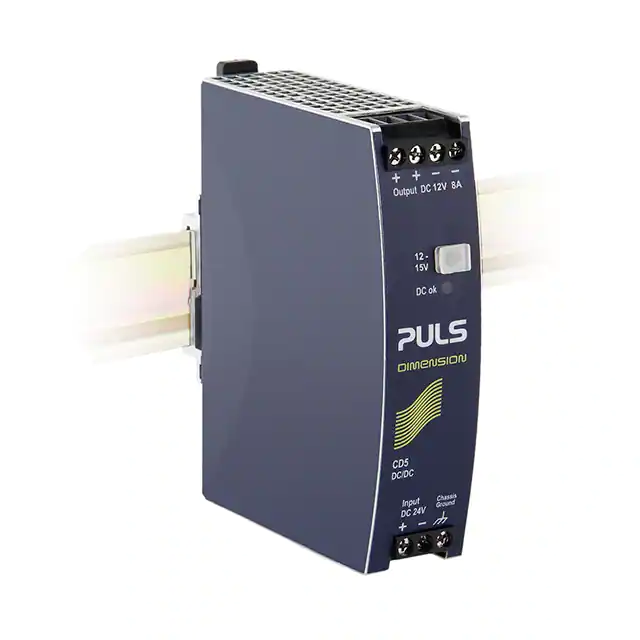

CD5.121DC/DC CONVERTER 12V 96W |
2738 | 378.00 |
カートに追加今すぐ検索 |
Bulk | DIMENSION CD (92 ~ 120W) | Active | DC | 1 | - | 18V | 32.4V | 12V | - | - | - | - | - | 8A | 96W | - | ITE (Commercial) | 88.2% | -25°C ~ 70°C (With Derating) | - | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

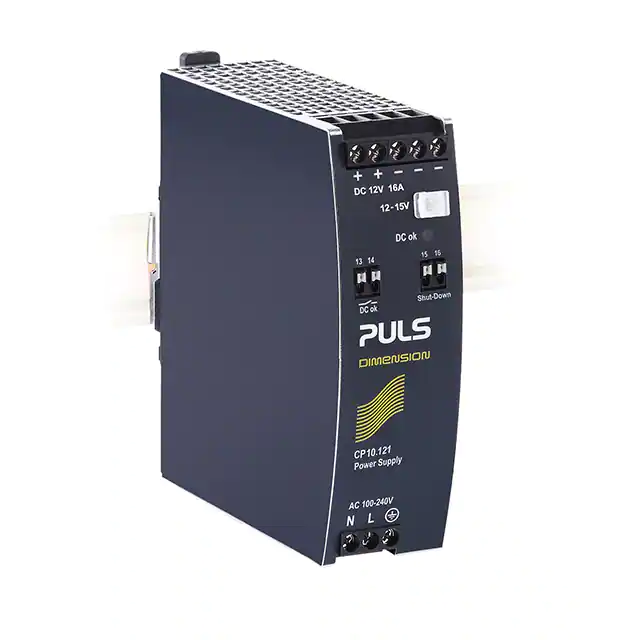

CP10.121AC/DC CONVERTER 12V 192W |
2918 | 337.50 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (192W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | 192W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|
CS5.241AC/DC CONVERTER 24V 120W |
2375 | 225.00 |
カートに追加今すぐ検索 |
Box | DIMENSION C (120W) | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 1.26 W x 4.88 H (117.0mm x 32.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

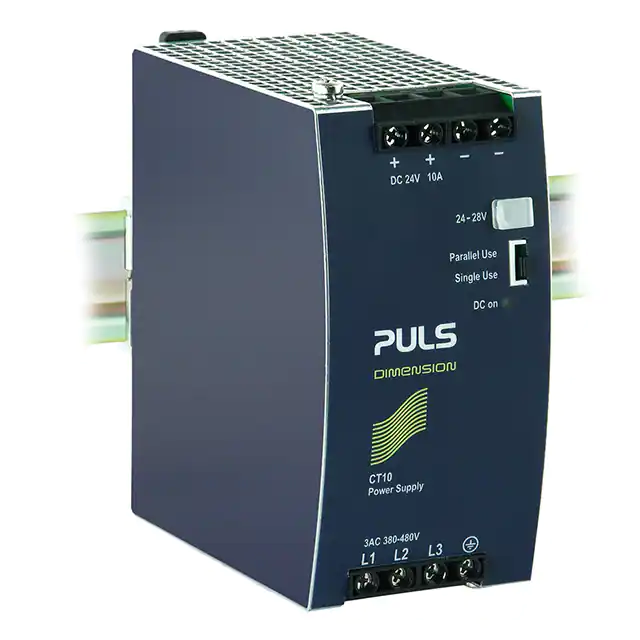

CT10.241AC/DC CONVERTER 24V 240W |
3121 | 364.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (240W) | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10.8A | 240W | 500 V | ITE (Commercial) | 92.9% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 2.44 W x 4.88 H (117.0mm x 62.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL |
|
データテーブル |
|

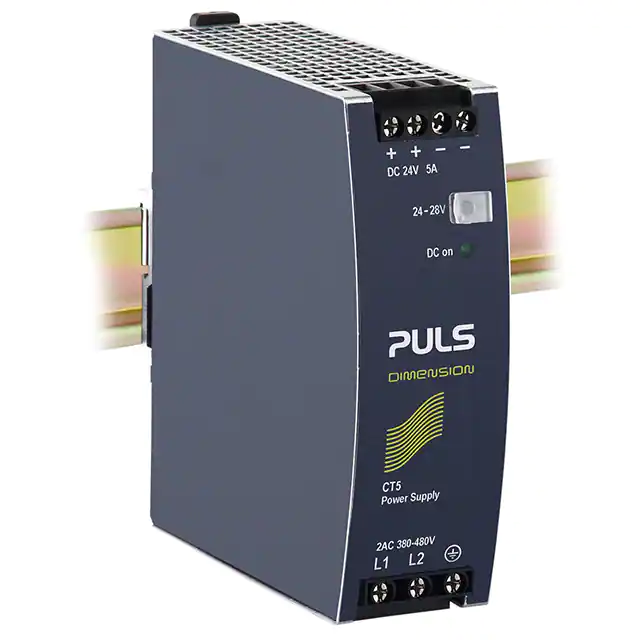

CT5.241AC/DC CONVERTER 24V 120W |
2479 | 310.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (120W) | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.4% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 1.57 W x 4.88 H (117.0mm x 40.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL |
|
データテーブル |
|
ML30.106AC/DC CONVERTER +/-12V 36W |
3032 | 163.80 |
カートに追加今すぐ検索 |
Box | MiniLine (36W) | Active | AC | 2 | 85 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 2.8A, 1.4A | 36W | - | ITE (Commercial) | 86% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | ABS, DNV GL, EAC, IEC, NEC, UL |
|
データテーブル |
|
CP10.241AC/DC CONVERTER 24V 240W |
3725 | 288.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL |
RFQ
