うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Type | Coil Type | Voltage - Rated | Current Rating ( Amps ) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding ( oz-in / mNm ) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

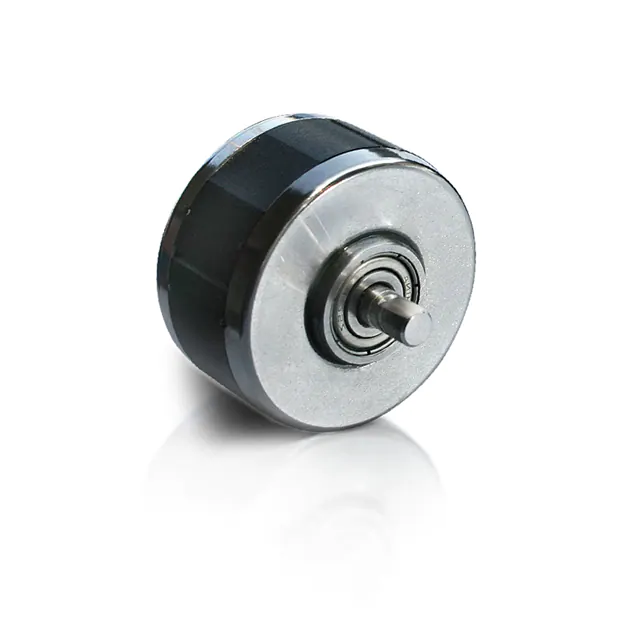

WO-3809X-15STEPPER MOTOR |
2138 | 37.52 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 300 mA | 400 | 0.9° | - | 6 / 42.37 | Round - 1.429 Dia (36.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | - | Wire Leads | -20°C ~ 50°C | 15.1 Ohms |
|
データテーブル |
|
WO-3809V-18STEPPER MOTOR |
2242 | 37.93 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 16 / 113 | Round - 1.429 Dia (36.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | - | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
データテーブル |
|
WO-3809Z-14STEPPER MOTOR |
2651 | 40.06 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 250 mA | 400 | 0.9° | - | - | Round - 1.429 Dia (36.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | - | Wire Leads | -20°C ~ 50°C | 15.4 Ohms |
|
データテーブル |
|
WO-3809Y-51STEPPER MOTOR |
2440 | 40.46 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 6 / 42.37 | Round - 1.429 Dia (36.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | - | Wire Leads | -20°C ~ 50°C | 4 Ohms |
|
データテーブル |
|
WO-416-06-05STEPPER MOTOR |
2313 | 44.27 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 7.3 / 51.55 | Square - 1.539 L x 1.539 W (39.10mm x 39.10mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 4.7 Ohms |
|
データテーブル |
|
WO-417-13-06STEPPER MOTOR |
3852 | 49.91 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 800 mA | 400 | 0.9° | - | 20.4 / 144.1 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.6 Ohms |
|
データテーブル |
|
WO-417-13-13STEPPER MOTOR |
2757 | 49.91 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 800 mA | 400 | 0.9° | - | 28.4 / 200.5 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 13 Ohms |
|
データテーブル |
|
WO-4418M-01STEPPER MOTOR |
2773 | 52.30 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 71 / 501 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|
データテーブル |
|
WO-417-15-12STEPPER MOTOR |
3177 | 61.99 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 30 / 212 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 12 Ohms |
|
データテーブル |
|
WO-417-15-08STEPPER MOTOR |
2681 | 61.99 |
カートに追加今すぐ検索 |
Tray | - | Active | - | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 30 / 212 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms |
