うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

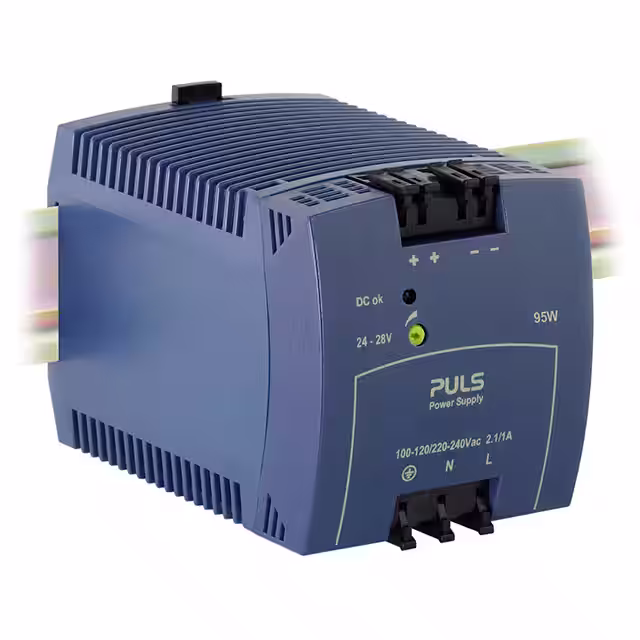

ML95.100AC/DC CONVERTER 24V 95W |
3935 | 244.80 |
カートに追加今すぐ検索 |
Box | MiniLine (95W) | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.95A | 95W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.06 L x 2.87 W x 2.95 H (103.0mm x 73.0mm x 75.0mm) | CSA, EAC, IEC, NEC, UL |
|
データテーブル |
|

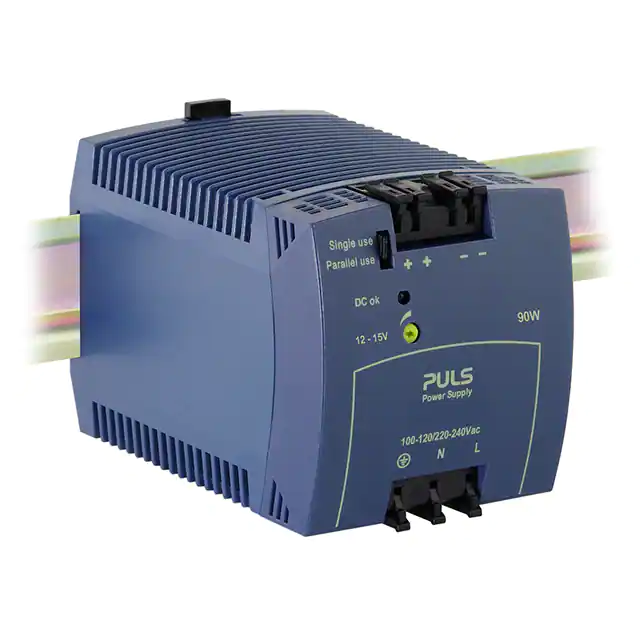

ML100.102AC/DC CONVERTER 12V 90W |
3034 | 262.80 |
カートに追加今すぐ検索 |
Box | MiniLine (90W) | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.5A | 90W | - | ITE (Commercial) | 88.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.06 L x 2.87 W x 2.95 H (103.0mm x 73.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

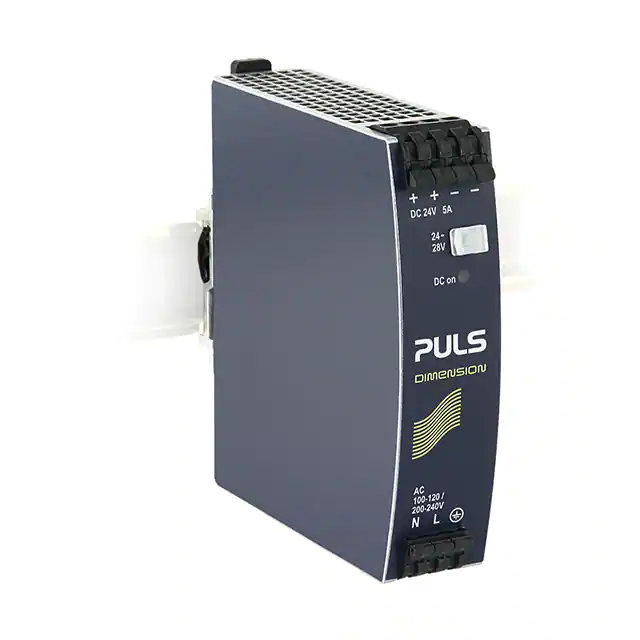

CS5.241-S1AC/DC CONVERTER 24V 120W |
2815 | 270.00 |
カートに追加今すぐ検索 |
Box | DIMENSION C (120W) | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 1.26 W x 4.88 H (117.0mm x 32.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

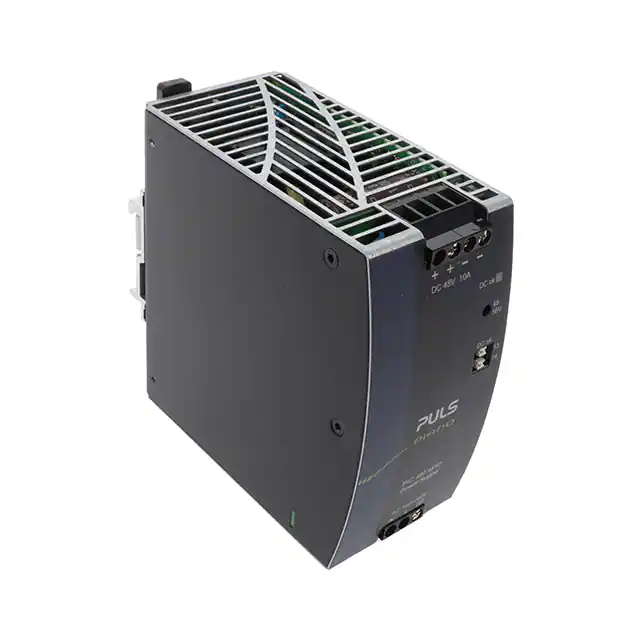

PIC480.481DPOWER SUPPLY, 480W, 100-240VAC 1 |
3888 | 351.00 |
カートに追加今すぐ検索 |
Box | PIANO (480W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 500 V | Industrial, ITE (Commercial), Laboratory | 95.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 5.00 L x 2.32 W x 4.88 H (127.0mm x 59.0mm x 124.0mm) | CB, CE, cULus |
|
データテーブル |
|

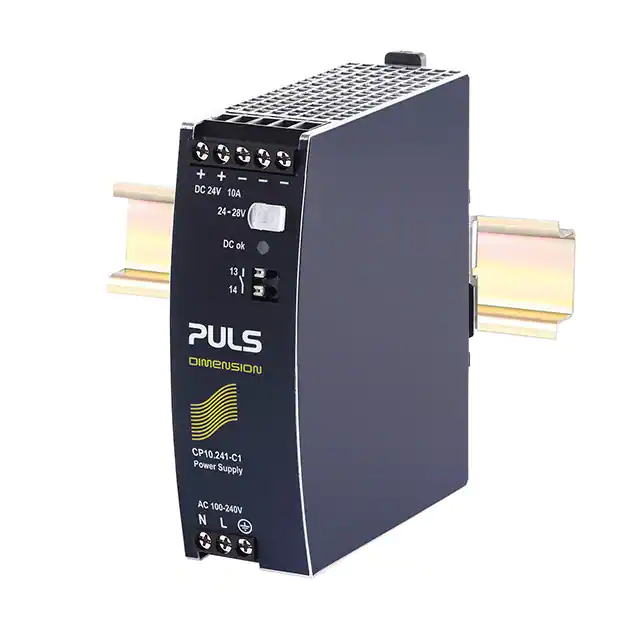

CP10.241-C1AC/DC CONVERTER 24V 240W |
2744 | 360.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, ITE (Commercial) | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ATEX, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|
CD10.241DC/DC CONVERTER, 240W, 18-35VDC |
2044 | 432.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CD (240W) | Active | DC | 1 | - | 18V | 35V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.61 L x 1.65 W x 4.88 H (117.0mm x 42.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|

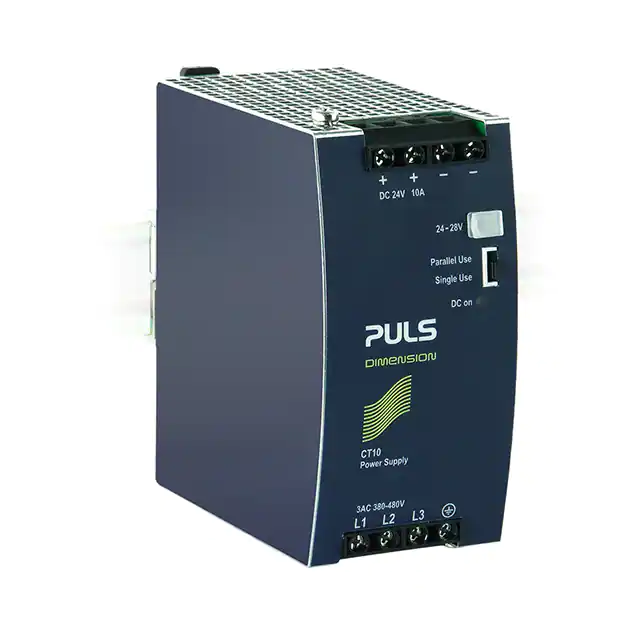

CT10.241-C1AC/DC CONVERTER 24V 240W |
3247 | 445.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (240W) | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing | 4.61 L x 2.44 W x 4.88 H (117.0mm x 62.0mm x 124.0mm) | ABS, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

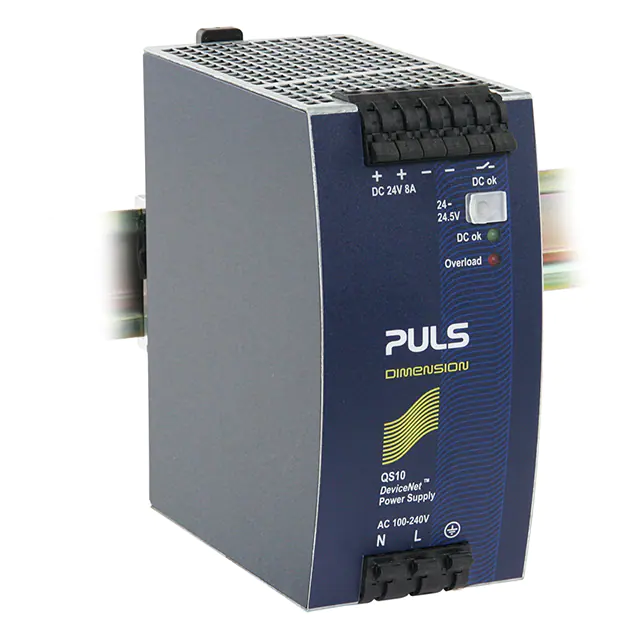

QS10.DNETAC/DC CONVERTER 24V 192W |
3658 | 526.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (192W) | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 8A | 192W | 500 V | ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61 L x 2.36 W x 4.88 H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL |
|
データテーブル |
|
QT20.361AC/DC CONVERTER 36V 480W |
3146 | 810.00 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (480W) | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

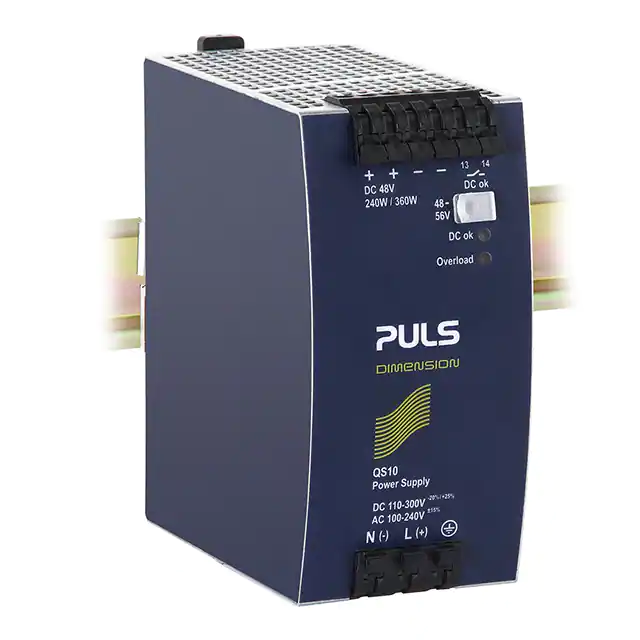

QS10.481-D1AC/DC CONVERTER 48V 240W |
3842 | 607.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (240W) | Active | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61 L x 2.36 W x 4.88 H (117.0mm x 60.0mm x 124.0mm) | EAC, IEC, UL |
