うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

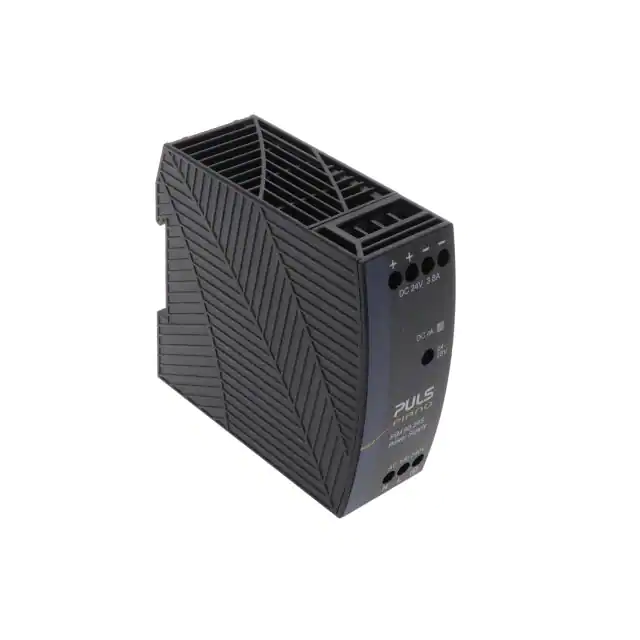

PIM90.245POWER SUPPLY, 90W, 100-240VAC 1P |
2728 | 117.00 |
カートに追加今すぐ検索 |
Box | PIANO (90W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.58 L x 1.42 W x 3.54 H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC |
|
データテーブル |
|

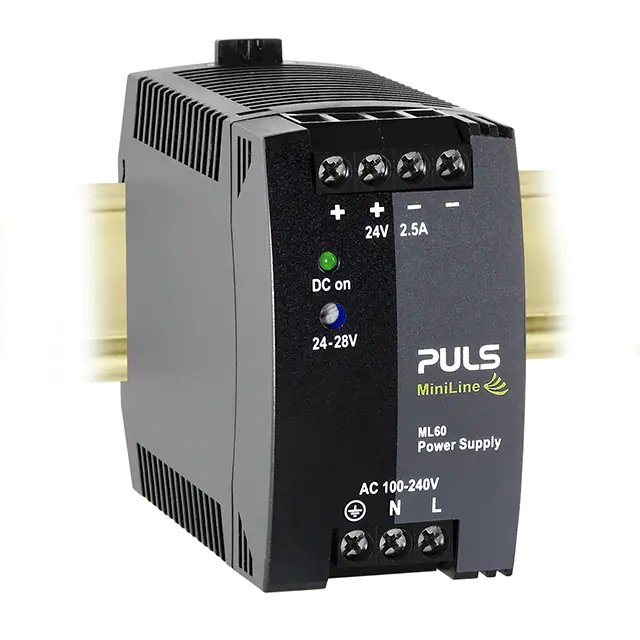

ML60.242AC/DC CONVERTER 24V 60W |
101 | 180.00 |
カートに追加今すぐ検索 |
Box | MiniLine-2 (60W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | ITE (Commercial) | 90.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL |
|
データテーブル |
|

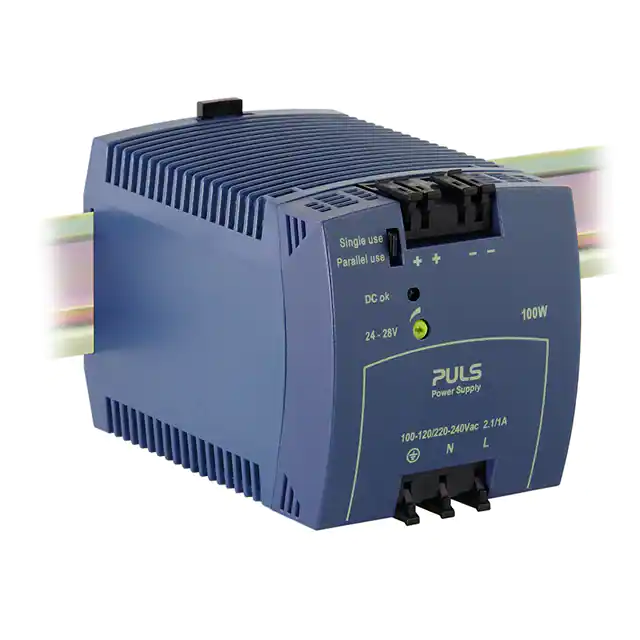

ML100.100AC/DC CONVERTER 24V 100W |
2319 | 199.80 |
カートに追加今すぐ検索 |
Box | MiniLine (100W) | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.06 L x 2.87 W x 2.95 H (103.0mm x 73.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

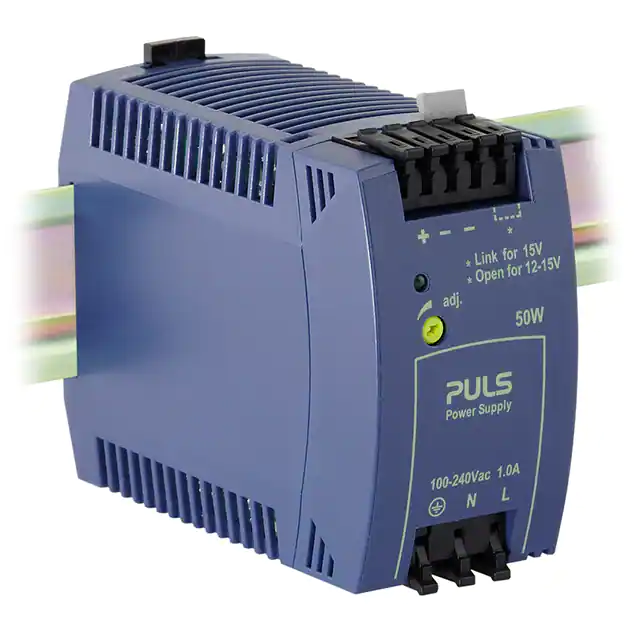

ML50.102AC/DC CONVERTER 12V 50W |
2098 | 190.80 |
カートに追加今すぐ検索 |
Box | MiniLine (50W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.2A | 50W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | CSA, EAC, IEC, NEC, UL |
|
データテーブル |
|

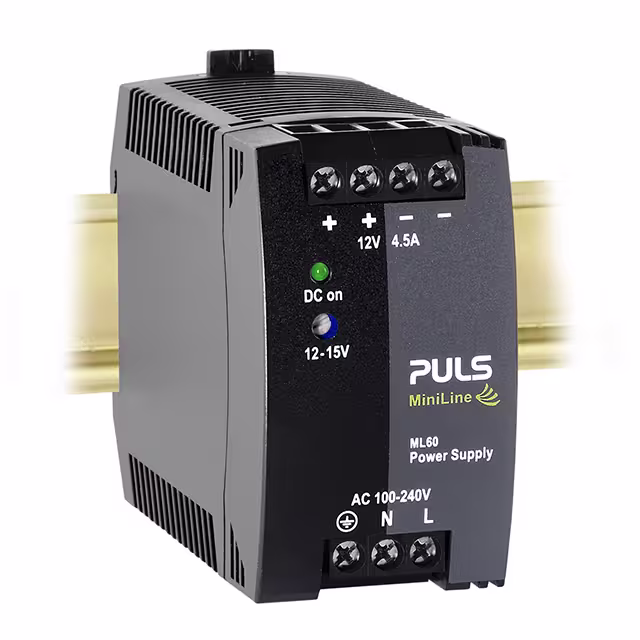

ML60.122AC/DC CONVERTER 12V 50W |
2609 | 189.00 |
カートに追加今すぐ検索 |
Box | MiniLine-2 (54W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 50W | 500 V | ITE (Commercial) | 87.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL |
|
データテーブル |
|

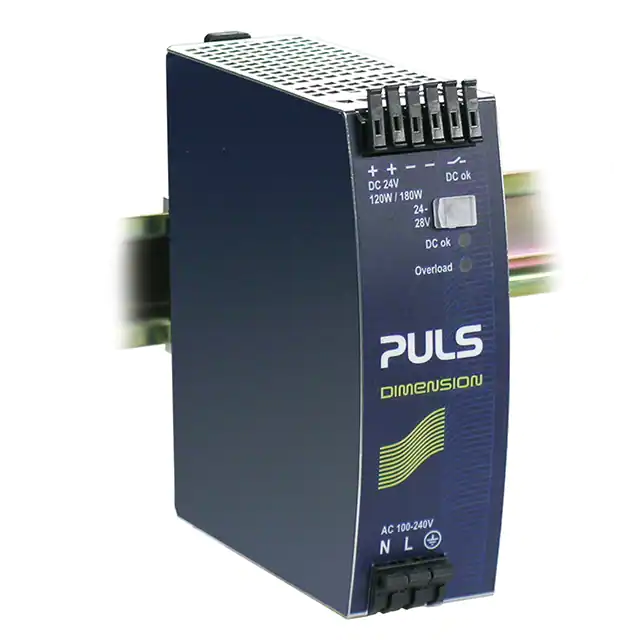

QS5.241AC/DC CONVERTER 24V 120W |
2645 | 315.00 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (120W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | Hazardous Locations, ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61 L x 1.57 W x 4.88 H (117.0mm x 40.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL |
|
データテーブル |
|
CP10.481AC/DC CONVERTER 48V 240W |
2608 | 333.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (260W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5.4A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

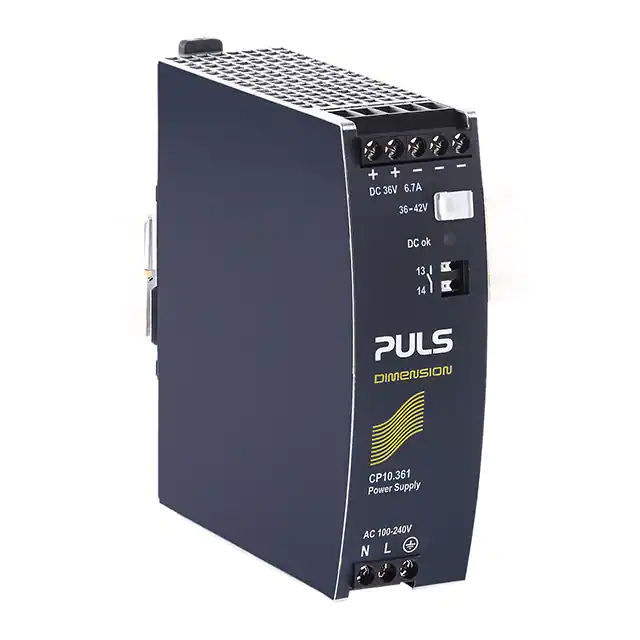

CP10.361AC/DC CONVERTER 36V 240W |
2160 | 342.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 6.7A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|
CP10.241-M1POWER SUPPLY, 240W, 100-240VAC 1 |
3201 | 342.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (240W) | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Industrial, ITE (Commercial), Medical | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | 4.61 L x 1.54 W x 4.88 H (117.0mm x 39.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|

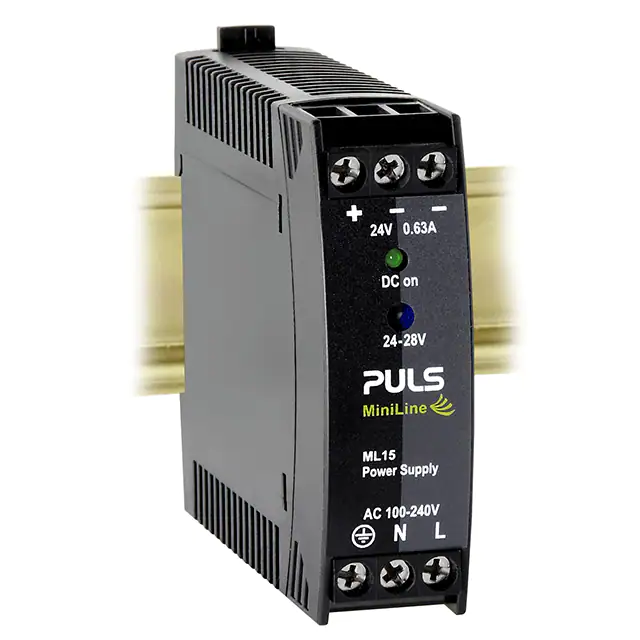

ML15.241AC/DC CONVERTER 24V 15W |
3580 | 72.00 |
カートに追加今すぐ検索 |
Box | MiniLine (15W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | 500 V | ITE (Commercial) | 86.1% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 3.58 L x 0.91 W x 2.95 H (91.0mm x 23.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL |
RFQ
