うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

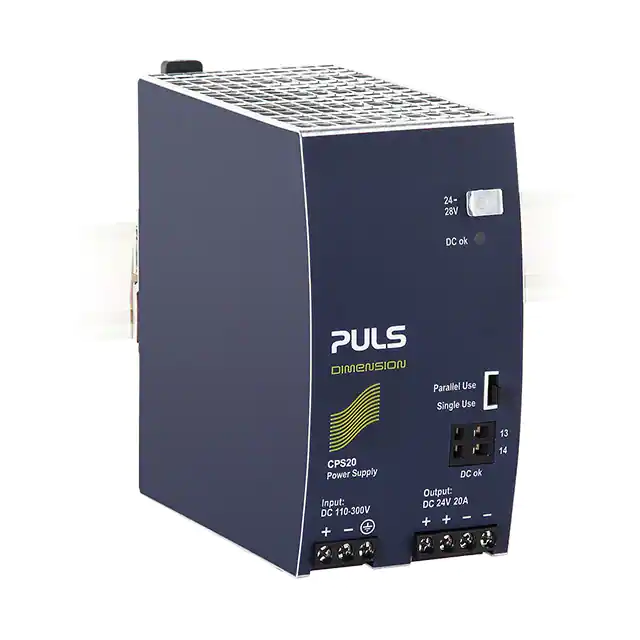

CPS20.241-D1DC/DC CONVERTER 24V 480W |
3804 | 571.50 |
カートに追加今すぐ検索 |
Bulk | DIMENSION C (480W) | Active | DC | 1 | - | 88V | 360V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ATEX, CSA, EAC, IEC, IECEx, UL |
|
データテーブル |
|

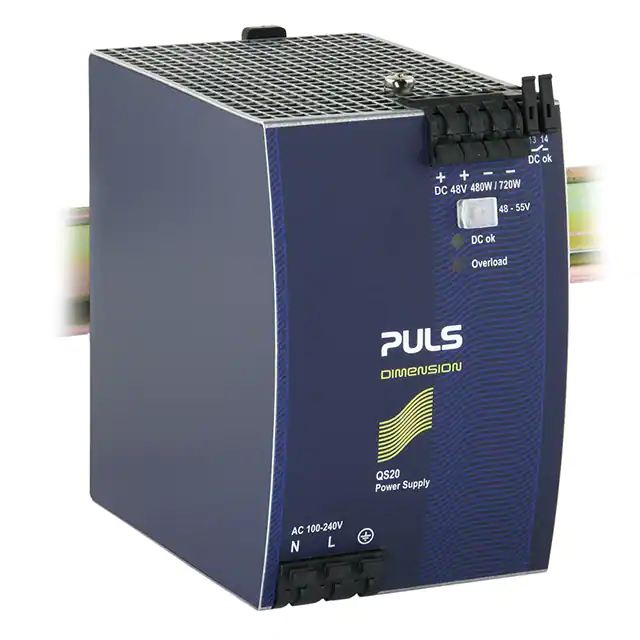

QS20.481AC/DC CONVERTER 48V 480W |
3646 | 634.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (480W) | Active | AC or DC | 1 | 85 ~ 276 VAC | 88V | 187V | 48V | - | - | - | - | - | 10A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 3.23 W x 4.88 H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|
QT20.481AC/DC CONVERTER 48V 480W |
3193 | 666.00 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (480W) | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 500 V | ITE (Commercial) | 95.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 2.56 W x 4.88 H (127.0mm x 65.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|
XT40.482AC/DC CONVERTER 48V 960W |
2181 | 675.00 |
カートに追加今すぐ検索 |
Box | DIMENSION X (960W) | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 96% | -25°C ~ 70°C (With Derating) | IP20 | 6.18 L x 3.78 W x 4.88 H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|
XT40.242AC/DC CONVERTER 24V 960W |
2185 | 675.00 |
カートに追加今すぐ検索 |
Box | DIMENSION X (960W) | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | Industrial, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20, PFC | 6.18 L x 3.78 W x 4.88 H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|

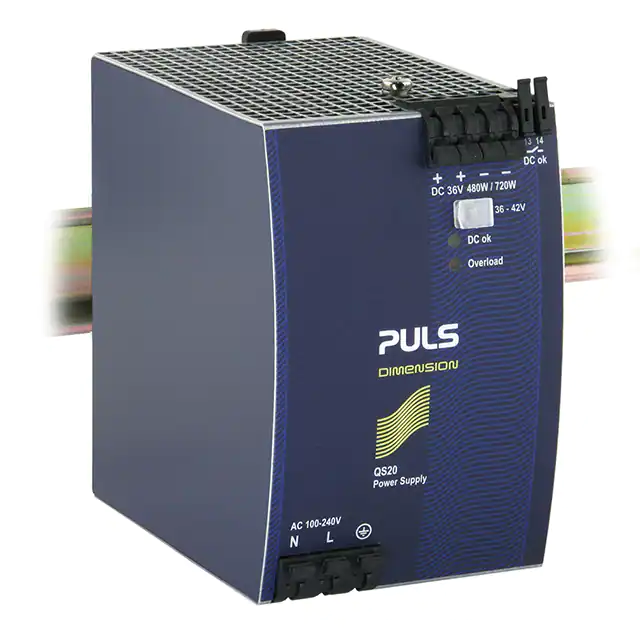

QS20.361AC/DC CONVERTER 36V 480W |
3770 | 751.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (480W) | Active | AC | 1 | 85 ~ 276 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 3.23 W x 4.88 H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|
QT40.361AC/DC CONVERTER 36V 960W |
2216 | 1012.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (960W) | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 95.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 4.33 W x 4.88 H (127.0mm x 110.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|

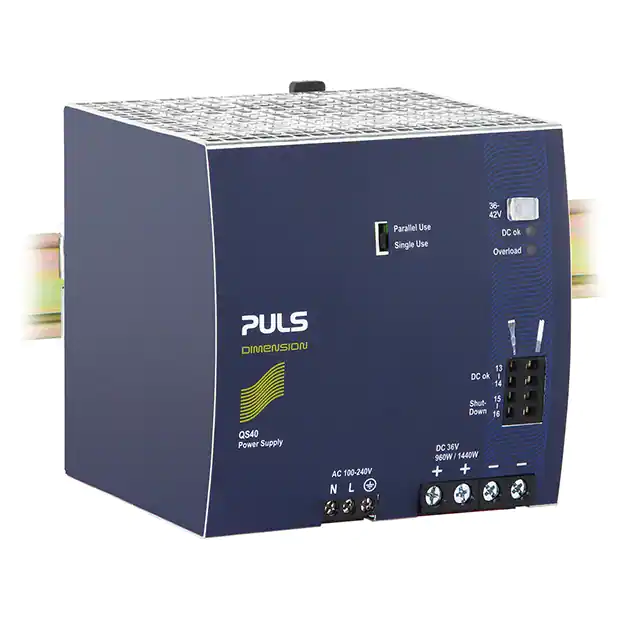

QS40.361AC/DC CONVERTER 36V 960W |
3365 | 1147.50 |
カートに追加今すぐ検索 |
Box | DIMENSION Q (960W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00 L x 4.88 W x 4.88 H (127.0mm x 124.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

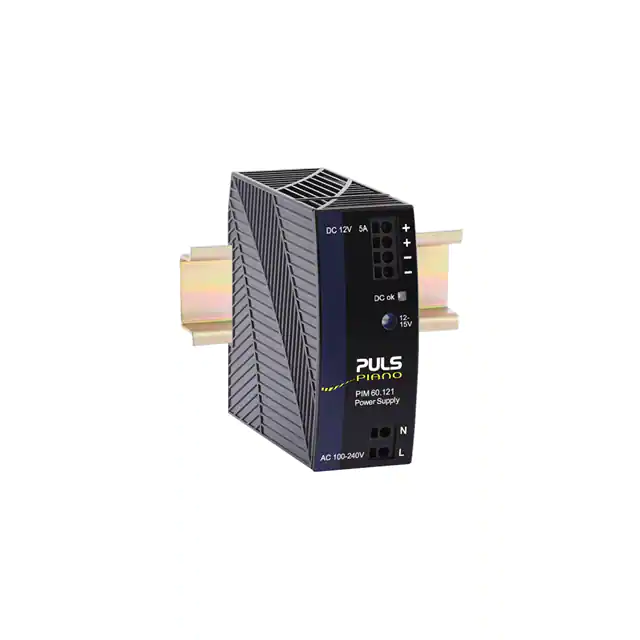

PIM60.121AC/DC CONVERTER 12V 60W |
3051 | 99.00 |
カートに追加今すぐ検索 |
Box | PIANO (60W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial), Laboratory | 90.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.58 L x 1.42 W x 3.54 H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC |
|
データテーブル |
|

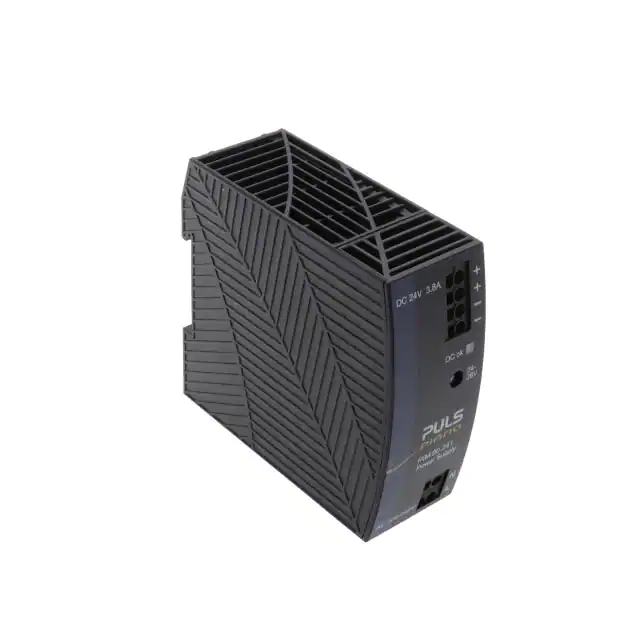

PIM90.241POWER SUPPLY, 90W, 100-240VAC 1P |
3465 | 117.00 |
カートに追加今すぐ検索 |
Box | PIANO (90W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.58 L x 1.42 W x 3.54 H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC |
