うんぱん馬車 ( )| データテーブル | イメージ | 製造元。セクション # | ストック | 価格 | はかる | Packaging | Series | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input ( Min ) | DC Voltage - Input ( Max ) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output ( Max ) | Power ( Watts ) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
データテーブル |
|

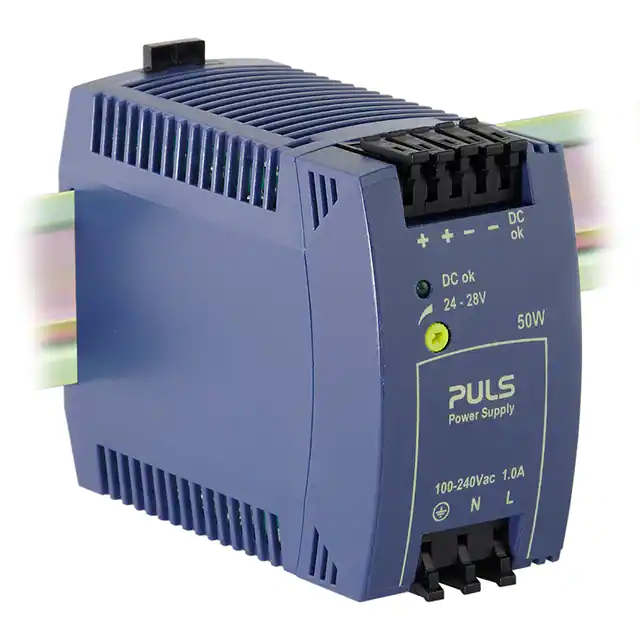

ML50.100AC/DC CONVERTER 24V 50W |
2753 | 136.80 |
カートに追加今すぐ検索 |
Box | MiniLine (50W) | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 500 V | ITE (Commercial) | 89% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, SEMI, UL |
|
データテーブル |
|

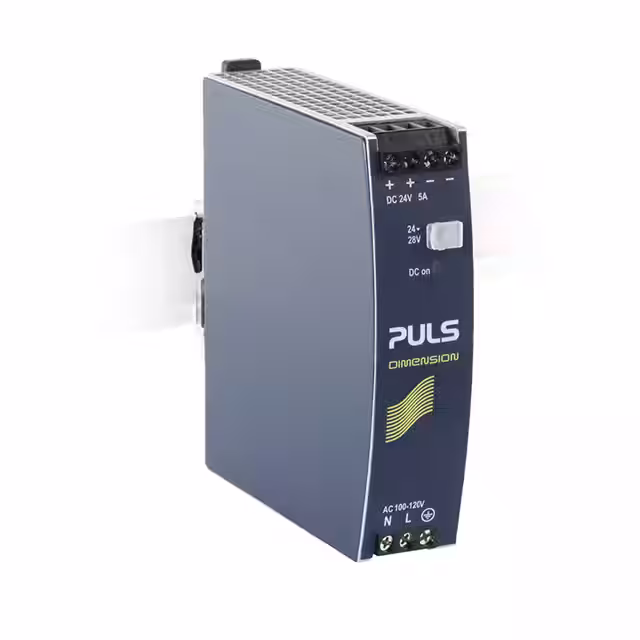

CS5.243AC/DC CONVERTER 24V 120W |
3729 | 225.00 |
カートに追加今すぐ検索 |
Box | DIMENSION C (120W) | Active | AC | 1 | 100 ~ 120 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 1.26 W x 4.88 H (117.0mm x 32.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

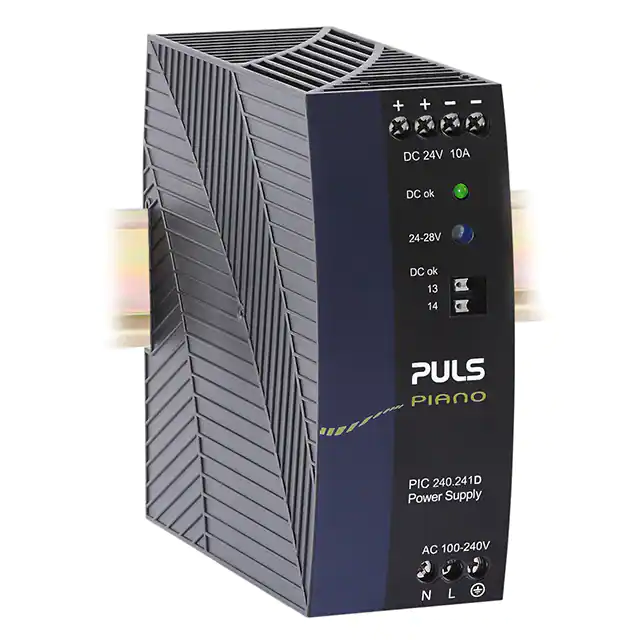

PIC240.241DAC/DC CONVERTER 24V 240W |
2856 | 225.00 |
カートに追加今すぐ検索 |
Box | PIANO (240W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 95.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.88 L x 1.93 W x 4.88 H (124.0mm x 49.0mm x 124.0mm) | EAC, IEC, UL |
|
データテーブル |
|

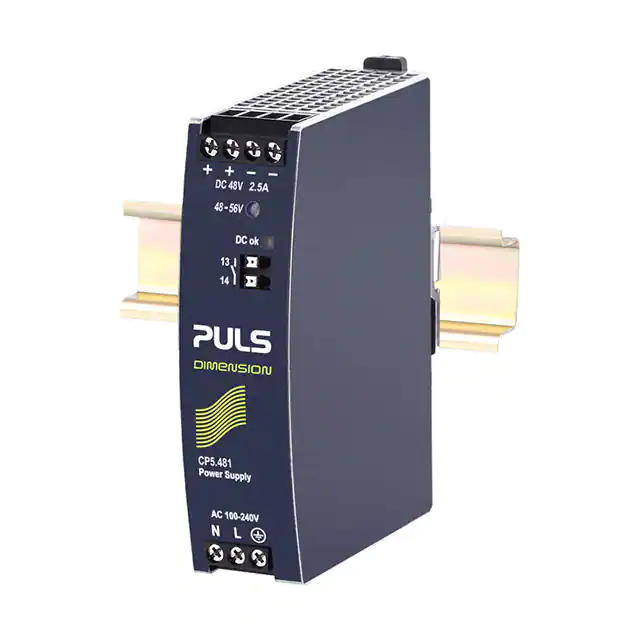

CP5.481POWER SUPPLY, 120W, 1PH, 48-56VD |
3796 | 243.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (120W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 48V | - | - | - | - | - | 2.5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 92.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | CB, CE, cULus, EAC |
|
データテーブル |
|

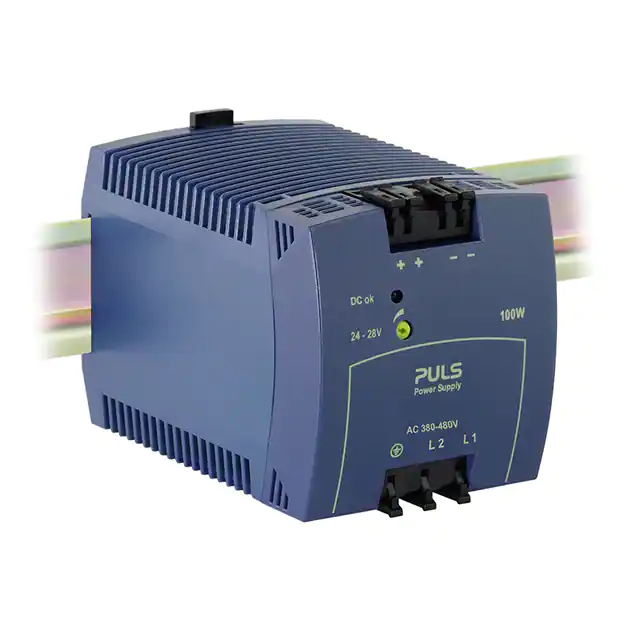

ML100.200AC/DC CONVERTER 24V 100W |
3518 | 271.80 |
カートに追加今すぐ検索 |
Box | MiniLine (100W) | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.06 L x 2.87 W x 2.95 H (103.0mm x 73.0mm x 75.0mm) | ABS, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

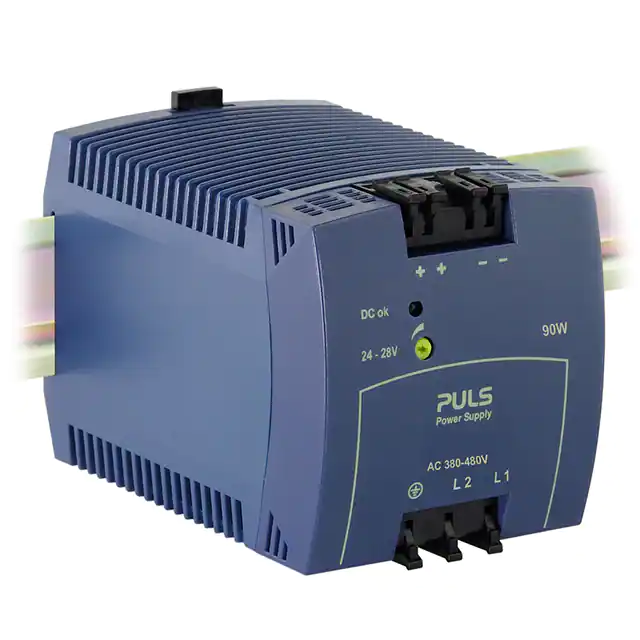

ML90.200AC/DC CONVERTER 24V 90W |
3425 | 271.80 |
カートに追加今すぐ検索 |
Box | MiniLine (90W) | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 3.75A | 90W | - | ITE (Commercial) | 89.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.06 L x 2.87 W x 2.95 H (103.0mm x 73.0mm x 75.0mm) | ABS, DNV GL, EAC, IEC, NEC, UL |
|
データテーブル |
|

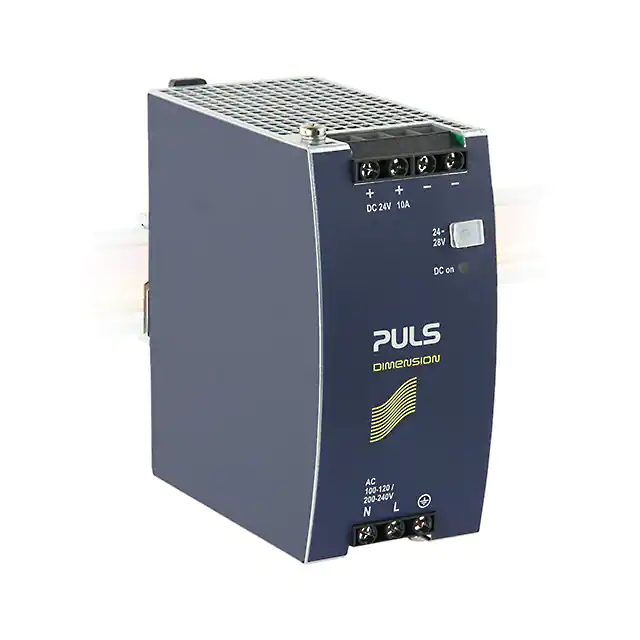

CS10.241AC/DC CONVERTER 24V 240W |
2302 | 310.50 |
カートに追加今すぐ検索 |
Box | DIMENSION C (240W) | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61 L x 2.36 W x 4.88 H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL |
|
データテーブル |
|

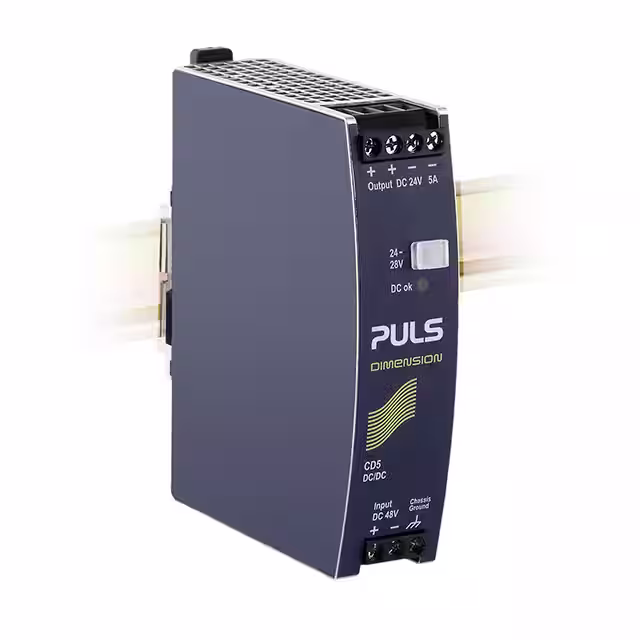

CD5.242DC/DC CONVERTER 24V 120W |
3648 | 369.00 |
カートに追加今すぐ検索 |
Bulk | DIMENSION CD (92 ~ 120W) | Active | DC | 1 | - | 36V | 60V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.3% | -25°C ~ 70°C (With Derating) | - | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
|
データテーブル |
|

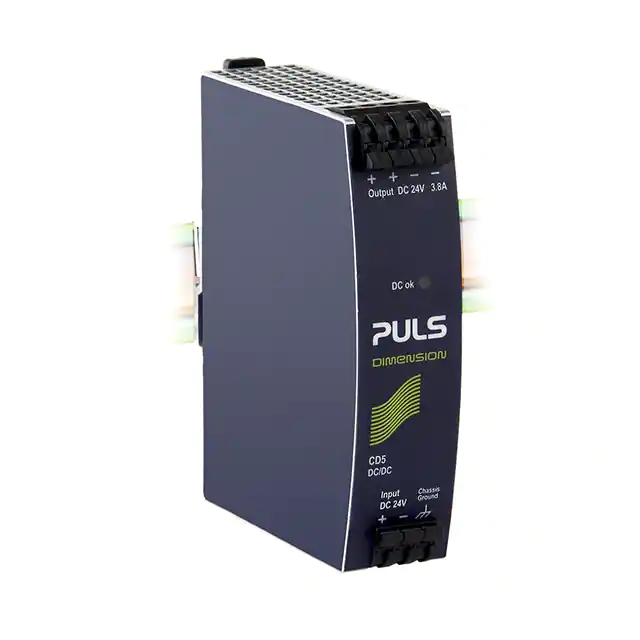

CD5.241-L1DC/DC CONVERTER 24V 92W |
3102 | 414.00 |
カートに追加今すぐ検索 |
Bulk | DIMENSION CD (92 ~ 120W) | Active | DC | 1 | - | 14.4V | 32.4V | 24V | - | - | - | - | - | 3.8A | 92W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | - | 4.02 L x 1.26 W x 4.88 H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, NEC, UL |
|
データテーブル |
|

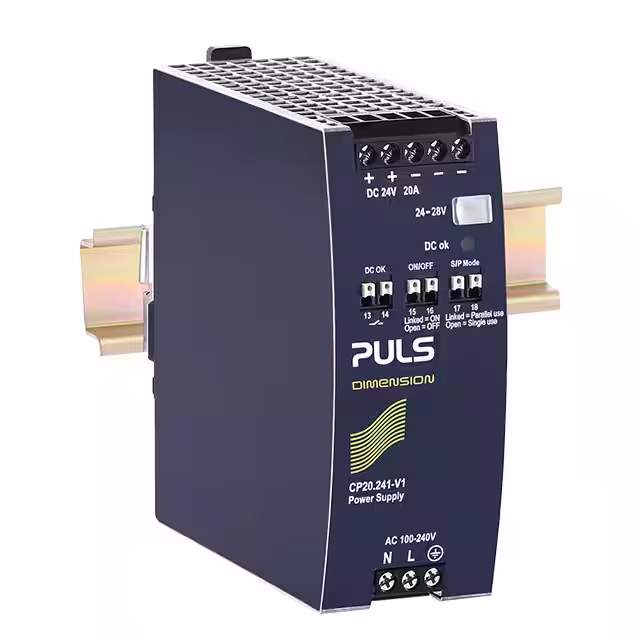

CP20.241-V1AC/DC CONVERTER 24V 480W |
3593 | 477.00 |
カートに追加今すぐ検索 |
Box | DIMENSION CP (480W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 5.00 L x 1.89 W x 4.88 H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL |
